| Categories | 3.2V LiFePO4 Battery |
|---|---|
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | PIFC0088 |
| MOQ: | 200PCS |
| Price: | usd 2.0 |
| Packaging Details: | Follow UN38.3 Rule |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal, etc |
| Supply Ability: | 50000 pack for one week |
| type: | LFP battery |
| capacity: | 1100mah |
| voltage: | 3.2 volt |
| circle time: | 2000 times |
| warranty: | 1 year |
| pvc: | blue or customized |
| max discharge current: | 20c |
| certification: | UL for cell |

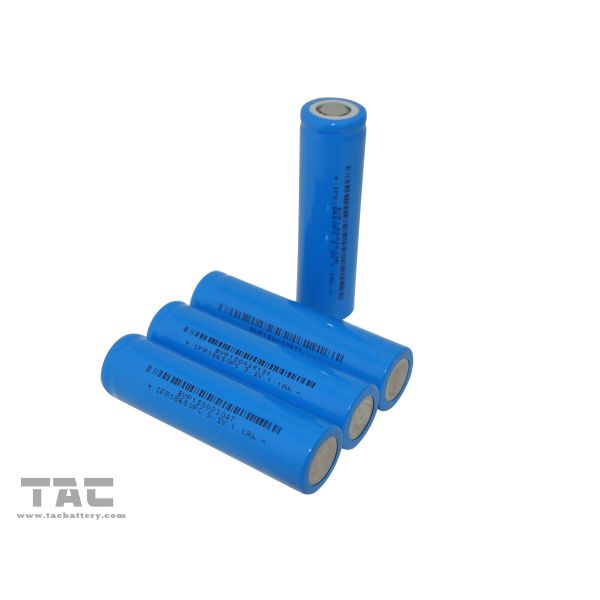

High Power LFP battery 18650 3.2V Lifepo4 Battery 1100mah For Electric Cars
No. | Items | Specifications |
1 | Charge cut-off voltage | 3.65V |
2 | Nominal voltage | 3.2V |
3 | Minimal capacity | 1100mAh @ 1C Discharge |
4 | Nominal capacity | 1150mAh @ 1C Discharge |
5 | Charge current | 1C |
6 | Standard charging method | 1C CC (constant current) charge to 3.65V, then CV (constant voltage 3.65V) charge till charge current decline to £ 0.05C |
7 | Charging time | Standard charge: 2.0 hours Ref |
8 | Max. charge current | 5C |
9 | Max. continue discharge current | 20C (Cell skin temperature cannot exceed 80°C) |
10 | Discharge cut-off voltage | 2.0V |
11 | Operating temperature | Charging: -10°C ~ 45°C Discharging: -20°C ~ 60°C (Cell skin temperature cannot exceed 80°C) |
12 | Storage temperature/humidity | Temperature -10°C ~ +35°C Humidity 65%±20%RH (Recommended to store 23 ± 5°C for long term storage) |
13 | Cell Weight | 38.0g±1.0g |
14 | Cell Dimension | Length: 65.0±0.3 mm Width: 18.2±0.2 mm |
High Power LFP battery/18650 3.2V Lifepo4 Battery 1100mah For Electric Cars
Using the single cell assem a battery pack:
The Battery Pack Assembled by 18650 cell
High Power 18650 3.2V LiFePO4 Battery 1100mAh for Electric Tool,Boat and Car and so on.
