| Categories | 3.2V LiFePO4 Battery |
|---|---|
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM ODM |
| Model Number: | LFR26650 |
| Certification: | MSDS REACH ROHS |
| MOQ: | 200PCS |
| Price: | usd 5 |
| Delivery Time: | 7 days for single cell 15-20 days for battery pack |
| Payment Terms: | TT, LC, Paypal etc |
| Supply Ability: | 50000 pack for one week |
| Packaging Details: | Follow UN38.3 Rule |
| material: | LiFePO4 Battery |
| mini capacity: | 2400mah |
| voltage: | 3.2-3.65v |
| circle life: | 2000 times |
| warranty: | 12 months |
| pvc: | blue or OEM |
| Discharge current: | 10-30C |
| Application: | power tool |
Portable high power devices support 10-30 c discharge performance
Stationary battery backup systems
Grid stabilization energy storage systems
Commercial truck and bus hybrid electric vehicles (HEVs)
| No. | Items | Specifications | Remark | |
| 1 | Nominal Capacity | 2400mAh | 0.2C Standard discharge | |
| 2 | Minimum Capacity | 2350mAh | ||
| 3 | Nominal Voltage | 3.2V | Mean Operation Voltage | |
| 4 | Delivery voltage | 3.2~3.3V | Within 10 days from Factory | |
| 5 | Charge Voltage | 3.65V±0.03V | By standard charge method | |
| 6 | Standard charging method | 0.2C constant current,3.65V constant voltage charge to 3.65V,continue charging till current decline to ≤0.01C | ||
| 7 | Charge current | 1C | 400mA | Standard charge, charge time about 6h(Ref) |
| 1C | 1000mA | Rapid Charge, charge time about: 3h(Ref) | ||
| 8 | Standard discharging method | 10C constant current discharge to2.0V, | ||
| 9 | Cell Internal Impedance | ≤20mΩ | Internal resistance measured at AC 1KHZ after 50% charge | |
| No. | Items | Specifications | Remark | |
| 10 | Maximum charge current | 10C | For continuous charging mod | |
| 11 | Maximum discharge current | 10C | For continuous discharge mod | |
| 12 | Operation Temperature and relative humidity Range | Charge | 0~45℃ 60±25%R.H. | Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Discharge | -20~60℃ 60±25%R.H. | |||
| 13 | Storage temperature for a long time | -20~25℃ 60±25%R.H. | Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months. | |
put the cell in bag one by one , 20 pcs / each box , and 5 box for one carton

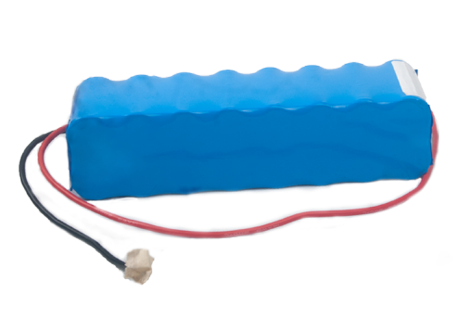

The LifePO4 battery Pack made by 26650 single cell
The period of warranty is one year from the date of shipment. TAC BATTERY guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
The batteries should be stored at room temperature, charged to
about 30% to 50% of capacity.
We recommend that batteries be charged about once per half a year
to prevent over discharge.
|
