| Categories | Stainless Steel Ball Bearings |
|---|---|
| Brand Name: | SGC |
| Model Number: | SS 6707-2RS |
| Certification: | RoHS |
| Place of Origin: | Fuzhou, China |
| MOQ: | 500 PCS |
| Price: | Get The Latest Price |
| Payment Terms: | D/P, L/C, T/T, Western Union |
| Supply Ability: | 50000PCS per month |
| Delivery Time: | 6-45 days upon receipt of official order |
| Packaging Details: | plastic tube+box, or according to requested by clients |
| Materials: | AISI440C |
| Bore Size: | 35 mm |
| OD: | 44 mm |
| Width: | 5 mm |
| Accuracy: | ABEC-1, ABEC-3 |
| Noise and Vibration: | Z1V1 |
| Clearance: | 0.008-0.025 mm |
| Seals: | NBR, Optional Blue or Black |
| Retainer: | 304 Stainless Steel, Rivet Type |
| Lubrication: | Shell Alivania R2, ESSO Beacon 325, Chevron SRI-2, Mobil 28, Kluber, Kyodo Yushi, etc. |
| Hardness: | HRC58-62 |
| Surface: | harden polished |
| Package: | Neutral + Cardboard Box + Wooden |
| Application: | Precision Machinery, Grinding Media, Motorcycle, Electric Hand Tools, Bicycles, etc.. |
| Feature: | Ground |
| Sample: | by free |
| Certifications: | ISO, ROHS |
| Service: | Customized Service,OEM /After-Sales Service |
SS6707-2RS Bearing 440C Stainless Steel Extra Thin Ball Bearing Sealed with NBR
Light Contact Seals Type-Thin Section
Model No.: 6707-2RS
Races: AISI440C, HRC58-62 Hardness
Balls: AISI440C, 25 balls
Retainer:304 Stainless Steel
Bondary Diamensions: 35*44*5mm
Applications:
The bearings are widely used on ocean engineering equipment and ship, food processing machinery, medical equipment, cryogenic engineering, automobile, motorcycle, electric tools, high-speed motor, household appliances and other industries.
Lubrications:
Before SGC bearings leave factory,the open bearing is filled with meter anti-rust oil only;while the shielded bearing has been filled with general bearing grease,which makes it suitable for light and medium load as well as low and medium speed applications, with a working temperature ranging from -30℃～100℃.If the bearings are applied beyond the above conditions, other special grease or lubricating methods shall be employed.
Bearing No. | Boundary Dimensions(mm) | |||
| d(mm) | D(mm) | B(mm) | Chamfer rsmin(mm) | |
| SS6700 | 10 | 15 | 3 | 0.1 |
| SS6700 ZZ | 10 | 15 | 4 | 0.1 |
| SS6701 | 12 | 18 | 4 | 0.2 |
| SS6702 | 15 | 21 | 4 | 0.2 |
| SS6703 | 17 | 23 | 4 | 0.2 |
| SS6704 | 20 | 27 | 4 | 0.2 |
| SS6705 | 25 | 32 | 4 | 0.2 |
| SS6706 | 30 | 37 | 4 | 0.2 |
| SS6707 | 35 | 44 | 5 | 0.3 |
| SS6708 | 40 | 50 | 6 | 0.3 |
| SS6709 | 45 | 55 | 6 | 0.3 |
| SS6710 | 50 | 62 | 6 | 0.3 |
| SS6711 | 55 | 68 | 7 | 0.3 |
| SS6712 | 60 | 75 | 7 | 0.3 |
Company Brand | Designation | Dropping tem. | Penetration | Woring Tem. | Remarks |
| Shell | Alivania RL2 | 185 | 265-295 | -35~120 | General purpose |
| Alivania RL3 | 185 | 220-250 | -35~135 | ||
| Alivania RA | 180 | 250-275 | -25~100 | ||
| Alivania EP1 | 180 | 310-340 | -25~110 | ||
| Alivania EP2 | 185 | 265-295 | -25~110 | ||
| Darina 2 | 250 | 265-295 | -25~150 | high Tem. service | |
| Darina EP2 | 250 | 265-295 | -25~150 | ||
| Dolium R2 | 250 | 265-295 | -35~150 | corrosion resistnat | |
| Esso | Andok C | 260 | 190-210 | -30~120 | General purpose |
| Andok 260 | 190 | 204-260 | -40~120 | ||
| Beacon 325 | 190 | 255-280 | -54~120 | low Tem. service | |
| Chevron | SRI-2 | 240 | 255-280 | -30~120 | water resistnat |
| Mobil | Moilux 2 | 190 | 265-290 | -10~110 | General purpose |
| Mobil 22 | 192 | 260-274 | -40~120 | ||
| Mobil 28 | 260 | 265-295 | -55~175 | wide range Tem. service | |
| Mobil 48 | 260 | 240-270 | -60~170 | high Tem. service | |
| Kluber | Isoflex LDS 18 | 190 | 255-280 | -50~110 | low Tem. service |
| Isoflex NBU 15 | 250 | 255-280 | -30~120 | General purpose | |
| Kyodo Yushi | Multemp SRL | 185 | 225-245 | -40~145 | low torque service |
| Multemp PS2 | 190 | 250-275 | -50~110 | low Tem. service | |
| Multemp ET150 | 260 | 255-280 | -10~160 | ||
| China Hangu | Hangu 2 | 198 | 265-295 | -10~130 | low noise service |
|

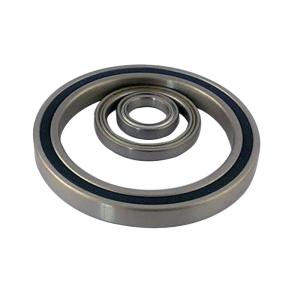

Thin Section AISI440C Stainless Steel Ball Bearings
