| Categories | Fluid Bed Granulator |
|---|---|
| Brand Name: | YIGAN |
| Model Number: | FL |
| Certification: | CE |
| Place of Origin: | CHINA |
| MOQ: | 1 set |
| Price: | negotiation |
| Supply Ability: | 30 sets per month |
| Delivery Time: | 20 working days after received your payment |
| Packaging Details: | Packed in film firstly, and then reinforced with wooden case for outer packing |
| Product Name: | fluid bed granulator / dryer machine |
| Feature: | top spray |
| Liquid Feeding mode: | By mono pump |
| Heating mode: | Electrical, steam |
| Liquid spraying mode: | Top spraying |
| Spraying gun type: | Two-fluid |
| Application: | foodstuff |

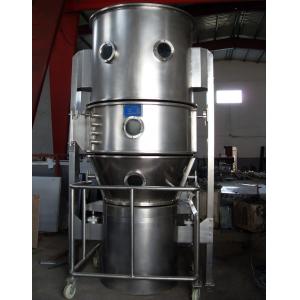

FL model foodstuff top spray mixing granulating dryer machine
Specifications
FL model foodstuff top spray mixing granulating dryer machine has no dead corner, easy for feeding, discharging and clean. It
could meet the requirement of GMP.
Principle
The powder material is in a boiling state in fluid bed, heated and
mixed by filtered hot air. Then spray binder into fluid bed, make
the dry powder material agglomerate and become granules. The
moisture in granule is evaporated by hot air and binder is
solidified. Finally, the ideal, uniform and porous finished granule
will be got.
Applications
Pharmaceutical industry: tablet, capsule, low sugar or no sugar
granule of Chinese medicine
Food stuff: cocoa, coffee, milk powder, granule of juice, flavoring
and so on.
Other industries: pesticide, feed, chemical fertilizer, pigment,
dyestuff and so on.
Features
Because of powder granulating, the flow property is improved and
the dust is reduced.
Because of powder granulating, its solving property is improved.
The mixing, granulating and drying could be completed in one
machine.
Being adapted anti static filter bag, the operation is safe.
There is explosion releasing hole to keep the people’s security
when explosion.
FL model foodstuff top spray mixing granulating dryer machine has no dead corner, easy for feeding, discharging and clean. It
could meet the requirement of GMP.
Technical Parameters
| Item | unit | Model | |||||||||
| 3 | 5 | 15 | 30 | 60 | 120 | 200 | 300 | 500 | |||
| container | volume | liter | 12 | 22 | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
| diameter | mm | 300 | 400 | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 | |
| capability | min | kg/batch | 1.5 | 4 | 10 | 15 | 30 | 80 | 100 | 150 | 250 |
| max | Kg/batch | 4.5 | 6 | 20 | 45 | 90 | 160 | 300 | 450 | 750 | |
| velocity | m3/h | 1000 | 1200 | 1400 | 1800 | 3000 | 4500 | 6000 | 7000 | 8000 |
| pressure | mm H2O | 375 | 375 | 480 | 480 | 950 | 950 | 950 | 950 | 950 | |
| power | kw | 3 | 4 | 5.5 | 7.5 | 11 | 18.5 | 22 | 30 | 45 | |
| steam consumption | kg/h | 15 | 23 | 42 | 70 | 141 | 211 | 282 | 366 | 451 | |
| compressed air expenditure | m3/min | 0.9 | 0.9 | 0.9 | 0.9 | 1.0 | 1.0 | 1.1 | 1.5 | 1.5 | |
| weight of the main body | kg | 500 | 700 | 900 | 1000 | 1100 | 1500 | 1500 | 1800 | 2000 | |
| steam pressure | Mpa | 0.3-0.6 | |||||||||
| temperature | ℃ | adjustable at the range from room temperature to 120℃ | |||||||||
| working time | min | decided in accordance with the properties of raw materials | |||||||||
| collect rate | % | ≥99 | |||||||||
| noise | dB(A) | when do installation ,main machine is separated from fan. | |||||||||
| Dimension(L×W×H) | m | 1.0×0.6 | 1.2×0.7 | 1.25×0.9 | 1.6×1.1 | 1.85×1.4 | 2.2×1.65 | 2.34×1.7 | 2.8×2.0 | 3×2.25 | |
All datas for reference only. According to the material features,
we have the right to change but not notice, pardon!
|
