| Categories | Automotive Aluminum Sheet |
|---|---|
| Certification: | ISO/SGS |
| Place of Origin: | CHINA |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, T/T, Western Union |
| Delivery Time: | 7-14 days |
| Packaging Details: | Wooden cases standard export package |
| Supply Ability: | 1000 Ton per Month |
| Product name: | 5052 Aluminum Sheet |
| Temper: | O-H111, H32, H112 |
| Grade: | 5052 Alloy |
| Type: | Plate / Sheet |
| Application: | Vehicle Manufacturer |
| Alloy or not: | Alloy |
| Standard: | GB/T 3880-2012 |
| Package: | Wooden Pallet |
| Brand Name: | OEM |
Anti Corrosion Automotive Grade 5052 Aluminum Sheet
5052 belongs to the Al-Mg alloy and the application range is
widely, especially in the construction industry. This alloy with
good corrosion resistance, excellent weldability, good cold
workability and medium strength. 5051 Aluminum used in the
manufacture of aircraft fuel tanks, oil pipes, transportation
vehicles, boat metal parts, instruments, hardware products,
electrical enclosures, etc.
| Chemical Composition WT(%) | |||||||||
| Silicon | Iron | Copper | Magnesium | Manganese | Chromium | Zinc | Titanium | Others | Aluminum |
| 0.25 | 0.4 | 0.1 | 2.2~2.8 | 0.1 | 0.15~0.35 | 0.1 | - | 0.15 | Balance |
| Typical Mechanical Properties | |||
Thickness (mm) | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation (%) |
| 0.3~350 | 170~305 | ≥65 | ≥5 |
Application
Vehicle

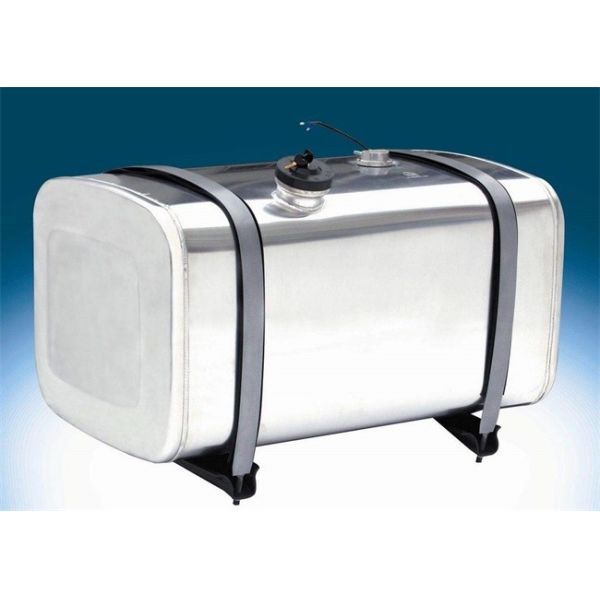

Oil Tank
|
