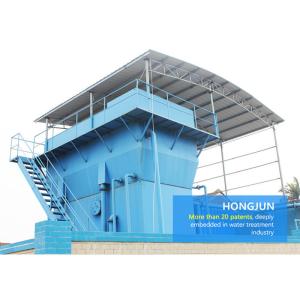

6000T/D Round Mbr Tank for River Water Purification Plant

Round Tank Type For River Water Purification Water Plant

Overview

MBR integrated equipment uses membrane bioreactor (MBR) for sewage treatment
Integrated equipment for treatment and reuse, which has all the advantages of a membrane bioreactor: effluent
Good water quality, low operating cost, strong impact resistance of the system, low sludge volume, high degree of automation, etc. In addition, as an integrated device, it has a small footprint and is easy to integrate. It can be used not only as a small sewage reuse equipment, but also as a larger
The core processing unit of the sewage treatment plant (station) is one of the current research hotspots in the field of sewage treatment and has broad application prospects.

Working principle

The membrane bioreactor (MBR) process is a new type of organic combination of membrane separation technology and biotechnology
Wastewater treatment technology. It uses membrane separation equipment to trap activated sludge and macromolecular organic substances in the biochemical reaction tank, eliminating the need for a secondary settling tank. As a result, the concentration of activated sludge is greatly increased, the hydraulic retention time (HRT) and sludge retention time (SRT) can be controlled separately, and the non-degradable substances continue to react and degrade in the reactor. Therefore, the membrane bioreactor (MBR) process greatly enhances the function of the bioreactor through membrane separation technology. Compared with traditional biological treatment methods, it is one of the most promising new technologies for wastewater treatment.

Equipment performance parameters

The core component of MBR integrated equipment is the membrane bioreactor, and its inlet water quality requirements are as follows: COD<500mg/L
BOD5<300mg/L
SS<100mg/L
NH3-N<50mg/L
Number of Escherichia coli<10000/L
The integrated equipment can flexibly configure the process flow according to the raw water quality, so that the equipment has a wide range of applicability. It can directly treat domestic sewage and hospital sewage to meet the domestic miscellaneous water standard.

Water quality:
The effluent water quality meets the domestic miscellaneous water standard:
COD<50mg/L
BOD5<10mg/L
SS<10mg/L
NH3-N<10mg/L
Number of Escherichia coli<3/L
