| Categories | Touch Panel PC |
|---|---|
| Brand Name: | ITD/OEM |
| Model Number: | ITD08PPCTxB-xxxx |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | TBA |
| Payment Terms: | T/T, PayPal(173515844@qq.com) |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 7-10 Business Days |
| Packaging Details: | 1-5pcs/CTN, Safe, Firm, suitable for international shipping |
| Native resolution: | 1024 x768 |
| Brightness: | 300 ,1000 nits optional |
| Processor: | Intel J1900 |
| touch panel: | capacitive/resistive |
| Mounting method: | panel mounted,VESA |
| OS: | Windows 7/8/10, Linux |
| Operating Temperature: | -20~60℃ |
| Storage Temperature: | -20~70℃ |
| Material: | Aluminum Housing |
| Warranty: | 2 years |

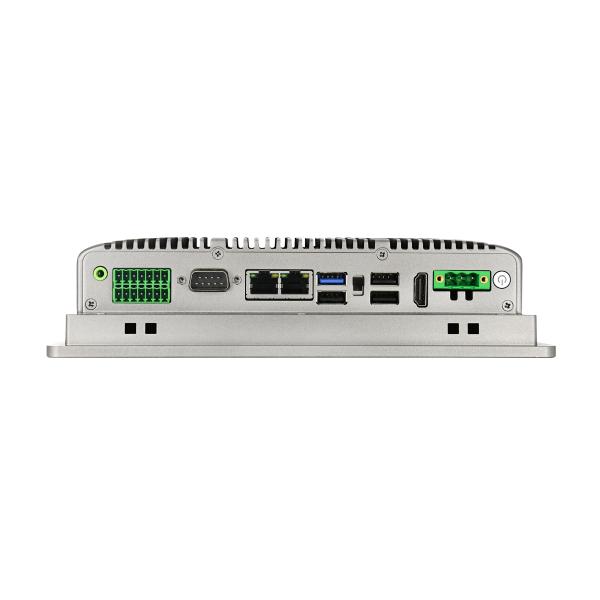

8 inch mini touch panel PC embedded mounting IP65 front HMI
Features
OPTIONALS
| • DC 24V, DC9-36V, AC100-240V | • Optical bonding |
| • Resistive touch screen, tempered glass | • WIFI, 3G, 4G |
| • Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc. |
DISPLAY
| Panel | Cell Type/Glass Surface | TFT |
| Size/ Aspect Ratio | 8”/4:3 | |
| Active Area/ Pixel Pitch | 162.048(W) x 121.536(H)mm/0.15825 × 0.15825mm | |
| Native Resolution/ Colors | 1024 x 768/16.7M | |
| Brightness/ Contrast | 1000cd/㎡/700:1 | |
| Response Time/ Viewing Angle(Typical) | 20ms/80/80/80/80 | |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SYSTEM
| Item | Android Solution | X86 Solution 1 | X86 Solution 2 |
| CPU | ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) | Intel® Celeron J1900 2.0GHz | Intel® Core i3/i5/i7 |
| Chipset | RK3288 | Intel Bay Trail SoC | Intel SoC Chipset |
| Memory | 2GB; 4GB Optional | Dual Channel, DDR3 1333/1600MHz Memory, Max.8GB | 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB |
| Storage | 8GB: 16GB/32GB/64GB Optional | 1 x SATA, 1 x mSATA, Default to 64GB SSD | 1 x SATA, 1 x mSATA, Default to 64GB SSD |
| Graphics | Supports max. 4K resolution | Intel HD Graphics (By CPU) | Intel HD Graphics (By CPU) |
| I/O | 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional); 1 × TF Card Support 8~128GB | 1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662 Line-Out /MIC IN | 1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 1 x COM max. 6; 1 x Realtek ALC662 Line-Out /MIC IN |
| LAN | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet | 1 x 10/100/1000Mbps Ethernet |
| OS | Android 6.0 (Android 7.0 optional) | Windows 7/8/10, Linux | Windows 7/8/10, Linux |
|
