| Categories | PDLC Smart Film |
|---|---|
| Brand Name: | UPASS |
| Model Number: | Youguang |
| Certification: | ISO9001 |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Price: | Negotiable |
| Payment Terms: | TT/LC |
| Supply Ability: | 600 Tons/Month |
| Delivery Time: | Negotiable |
| Packaging Details: | Wooden Pallet |
| Thickness: | 2mm-5mm |
| Width: | 600-2000mm Can be customized |
| Total Light Transmittance: | Power Off ＞67% |
| Directional Light Transmittance: | Power Off ＜4% |
| Haze: | Power Off ＞96% |
| Application: | Used for the building of decorating, remodeling, advertising |
| Product Name: | UV Block And Super Clear Switchable PDLC Smart Film |
| Material: | ITO |
electric laminated tint switchable dimmable window competitive pricing dimming smart glass pdlc film
Description:
Electric laminated tint switchable dimmable window competitive pricing dimming smart glass pdlc film is also known as PDLC film (Polymer Dispersed Liquid Crystal). |

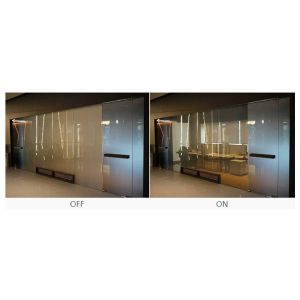

| It's application on installed glass, enabling glass to be instantly transformed from a clear state to an opaque state, by the flicking of a switch, providing immediate privacy and security, when required. |
Parameters:
| Item | Performance / Unit | Testing Method and Standard | |
| Rated Voltage | ON | 36/48/60(AC50HZ) | Multimeter |
| Power Consumption | ON | 4-6w/(SQM) | Multi-parameter Electrical Measuring Instruments |
| Total Light Transmittance | ON | ＞81% | GB/T 2410-2008GB/Spectrophotometer |
| OFF | ＞67% | ||
| Directional Light Transmittance | ON | ＞80% | GB5137.2-2002 |
| OFF | ＜4% | ||
| Haze | ON | ＜4% | GB/T 2410-2008GB/Spectrophotomete |
| OFF | ＞96% | ||
| Response Time | ON | ＜40(MS) | Liquid Cystal Mutl-prareter. Measuring Instrument |
| OFF | ＜210(MS) | ||
| Operating Temperature | / | -30~70℃ | Constant Temperature and Humidly Testing Machine |
| Lifetime | ON | ＞100000(H) | GB18910.5- 2008 |

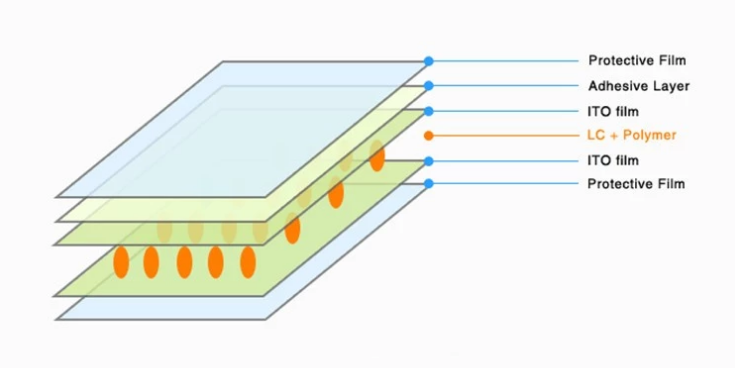

Structure:
Large command and control dispatch center office, meeting room,
negotiation room, special hospital room. Operating room, villa
toilet. Shower room, window of entertainment room. Isolation.
screen, etc.. |
Police station, Courts. Prisons. Jewelry shops. Museums. Bank
Windows. Curtain walls. Counter. Isolation, etc.. Large special
screen projection screen, etc.. |
Advantages:
| Privacy Protection and Room Partition: The most function is privacy protection . Transforms from opaque barrier to a clear state. Allows Architects and Contractors to provide creative design concepts on demand. Rear Projection Screen: Great solution for a rear-projection screen with high contrast. Explosion- proof: No distraction of shutters blinds or drapes. Heat Insulation: The smart film and EVA film can block sun solar energy, 99%UV, 98% IR rays. Protecting your interiors fading and yellowing. And meanwhile, can protect people from disease caused by direct sunlight. Sound Insulation: Can block noise by 20% more than normal glass. Multiple Control: Different style controls like remote control, wall switch, light sensor, voice control, APP etc. |
|
