| Categories | Fire Brigade Truck |
|---|---|
| Brand Name: | CLW |
| Model Number: | CLW5326-5 |
| Certification: | CCC,SGS,BV |
| Place of Origin: | SUIZHOU,CHINA |
| MOQ: | 1 Unit |
| Price: | US $21,098-47,540 |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 UNITS/MONTH |
| Delivery Time: | 30 days after receiving deposit |
| Packaging Details: | naked,waxed,bulk ship,ro-ro |
| Truck Chassis: | Dongfeng,Howo,ISUZU,Shacman,CAMC,Foton |
| Capacity: | 2tons,3ton,5ton,6tons,8ton,10tons,12ton,14ton,16ton |
| Type: | water tank fire truck,foam,dry powder fire truck,rescue fire truck |
| Fire Pump: | Chinese brand |
| Fire monitor range: | ≥50M |
| Flow rate of monitor: | 48L/s |
| Flow rate of pump: | 60L/s |
| Steering: | LHD or RHD |

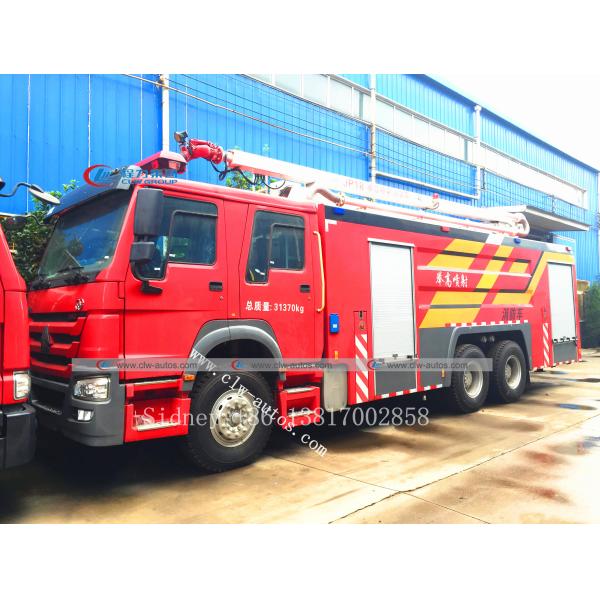

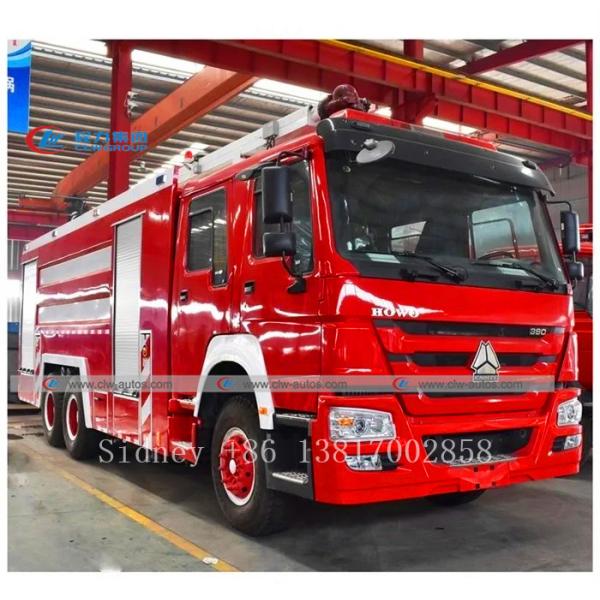

CHINA SINOTRUK HOWO 6X4 FIRE RESCUE WATER AND FOAM TANK 18 - 25m
Aerial Water Tower Tender Fire Truck 10,000Liters fire fighting
truck
Product Description
1. HOWO 6X4 fire fighting truck is composed with truck body and cabin,cabin is two rows,which can allow 6 persons.The front part of truck body is equipment room,middle is water tank and foam tank,rear is pump room.
2. To ensure good performance of fire trucks,howo fire truck is equipped with middle and low pressure fire pump CB20.10/30.6o with flow rate at 60L/S and Chengdu Wester fire monitor PL48(PM160)or PS60W(SG160).
3. Fire trucks are widely used in factory,terminal,oil&gas depot to insure emergency fire cases.
Specifications of howo 6X4 fire fighting truck
| Descriptions | parameter China HOWO 18m-25m aerial Water Tower Tender Fire Truck | ||
| General | GVW/Curb weight | 31370kg/15420kg | |
| Rate of load | 15950kg | ||
| Overall size | 9900×2500×3500 | ||
| cab | Cab | Flat head, double-row, four doors, hydraulic tilt cab,2+4 seat, 4 Set of safety belt in the back seats. Manual window | |
| Chassis | Siren control system | Yes | |
| Air conditioner | Yes | ||
| Drive type | 6x4 left hand drive | ||
| Fuel type: | Diesel | ||
| Engine manufacturer/model | WEICHAI/ WD615.69 | ||
| Power | 247kw/336hp | ||
| Displacement | 9726ml | ||
| Emission standard | Euro 2 | ||
| Engine type | Inline six cylinder, four-stoke, water-cooled, turbocharged and intercooled, fuel direct injection pump. | ||
| Shift box | 9-speed Forwarder with 2 Reverse | ||
| Brake | Air brake | ||
| Wheelbase | 4325+1350 | ||
| No. of axle/payload | 3/7000kg/16000kg | ||
| Tire specification/No. | 11.00-20/10+1 | ||
| Max speed | 85km/h | ||
| Paint color | Red paint | ||
| Special configuration | Water Tank capacity | 10,000L Made in high-strong carbon steel with anti-corrosion | |
| Foam tank capacity | 2000L Made in high quality steel with anti-corrosion | ||
| Consist of crew compartment, water tank (body), pump house, equipment compartments, water and foampump system, fire monitor, electronic sirens, lights and fire equipment. | |||
| This truck is improved and refitted with chassis of HOWO. It is equipped with foam spraying fire system. The spacious cabin is suitable for six crews. Its internal structure reasonable and compact its foam spraying fire system could be used signally or jointly | |||
| Atmospheric pressure pump fire pump: CB10/60 @ 1.0Mpa,Leading water time ≤ 50s, within water depth 7m | |||
| Fire monitor Model: PL48(dual-purpose gun blisters) Water range ≥ 55m/1.0MPa , foam range: ≥ 50m/1.0MPa | |||
| Technical Data for monitor sky lifting function | |||
| Max. Working Height | 18m(22m,25m,28m can be chose) | Outrigger Span | 2350mm |
| Max. Working Radius | 6.5m | Rotation Angle | 360° |
| Max Luffing Angle of Boom | 85° | Rated Pressure Of Hydraulic System | 16Mpa |
| Max Luffing Angle of Forearm | 155° | Max Oil Flow Of Hydraulic System | 30L/min |
| Safety Performance | · On and off interlock device | ||
| · Turntable indication device | |||
| · Boom and forearm interlock device | |||
| · Rotation limit device | |||
| · System does not work after power failure | |||
| · Soft leg alarm function | |||
| · Boom and forearm Angle Mechanical limit device | |||
1. Fire fighting truck chassis Model: ISUZU,SINOTRUK, SHACMAN,
DONGFENG, FOTON, tec.
2. Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai
(290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroII,III,IV,V Emission standard;
5. Right/Left hand drive ;
6. Fire fighting truck type: water tank, water and foam
tank,water,foam and powder
Reference photos
Quick feedback to solve your questions
Professional engineering and production team
Related Accessories and spare parts offered,no future worries
Regular customer after-sale visiting
Free technical staff training and guidance
Reasonable price and good quality
Quick delivery and shipment
FAQ
Q1: What kinds of fire fighting truck I can order from your company?
A: There are various sizes and types of fire fighting trucks with
different functions,you can contact us and tell your request.We
will recommend you suitable product.
Q2:: Have you supplied fire fighting trucks to any overseas companies?
A: Yes,with need of government project,we offered fire fighting
trucks to many Africa and south-east Asian,south-American
countries.
Q3 What about warranty?
A: Equipment warranty is 12 months from the date on which the
equipment is applied successfully into operation, or 13 months from
the date on which the equipment has been delivered, whichever comes
first.
Q5: Where is your factory? How far from Shanghai to your factory?
A: Our factory is based in Suizhou city, Hubei province, China. Our
overseas marketing office is in Wuhan city,Hubei Province.Wuhan is
about two hours' plane and four hours' high speed train from
Beijing,Shanghai or Guangzhou city,welcome to visit us for factory
inspection.
