| Categories | 12V LiFePO4 Batteries |
|---|---|
| Brand Name: | HUAXING |
| Model Number: | HX1220 |
| Certification: | MSDS |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000pcs per month |
| Delivery Time: | 15days |
| Packaging Details: | Carton |
| Voltage: | 12.8V |
| Capacity: | 20Ah |
| Max charge current:: | 20A |
| Max discharge current:: | 20A |
| Peak current:: | 40A |
| OEM: | YES |
| ODM: | YES |
| Life cycles: | Over 2000times |
| Housing: | ABS |
| Weight: | <3kg |

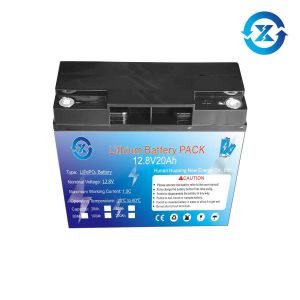

| Battery type | 12.8V 20Ah Lifepo4 battery | |
| 1 | Nominal Voltage(V): | 12.8V |
| 2 | Voltage Range(V): | 10~14.6 |
| 3 | Nominal Capacity(Ah): | 20 |
| 4 | Max. Charge Current(A): | 20 |
| 5 | Max. Continuous Discharge Current(A): | 20 |
| 6 | Peak Discharge Current(A): | 40 |
| 7 | Cycle Life(Times): | Over 2000times |
| 8 | Charge way: | CC/CV |
| 9 | Dimension(L*W*H): | 181±1*76±1*166±1mm |
| 10 | Working Temperature: | Charge: 0℃～45℃ Discharge: -20℃～60℃ Storage: -20℃～45℃ |
Our safety tests for our lifepo4 battery:
Why Choose LiFePo4 Batteries Rather Than Lead Acid Batteries ?
1.Longer battery life – 5000times life cycle @60%DOD, 5 times more
than lead acid batteries
2.Low self-discharge <3.5% per months
3.Free of charge memory
4.Steady discharge and charge performance.
5.Outstanding thermal stability
6.Wide temperature performance
7.Short circuit protection
8.Over charge and over discharge protection
9.Over current protection
10.Easy carrying and installation - can be carried and installed in
any direction
11.Fast charging - about 4~6 hours to be fully charged
12.Lighter weight - 1/2~1/4 in weight compared to LA batteries
13.Require no change to a lead acid battery charging system
14.Better safety - mild warm, no explosion and firing, free of
leakage
15.Environmentally friendly - no poisonous lead, no acid, no
heavy/rare metals
16.No gasses during charge, free of leakage and pollution
Our life cycle tests for our lifepo4 battery:
Huaxing other 12V LiFePo4 battery
| 12.8V LiFePO4 Battery Pack | |||||||
| Battery Type | 12V12Ah | 12V20Ah | 12V50Ah | 12V75Ah | 12V100Ah | 12V200Ah | 12V300AH |
| Cell Type | 3.2V/6.0Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/5.5Ah | 3.2V/6.0Ah |
| Nominal Voltage(V) | 12.8 | ||||||
| Nominal Capacity (Ah) | 12 | 20 | 50 | 80 | 100 | 200 | 300 |
| Charge Voltage (V) | 14.6 | ||||||
| Charge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Discharge Current (A) | ≤10 | ≤20 | ≤50 | ≤75 | ≤100 | ≤150 | ≤150 |
| Weight(kg) | 1.5 | 3 | 7.5 | 11.5 | 14 | 29 | 40 |
| Dimensions(L*W*H)(mm) | 151*98*98 | 181*76*166 | 197*165*170 | 208*169*260 | 324*172*214 | 520*265*220 | 520*265*220 |
| Operation Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Housing Material | ABS | ||||||
| Protection Functions | short circuit, over charge, over discharge, over current, over temperature | ||||||
Wide Applications
