| Name: | 2~48F Fiber Optic Pigtail Bundle |
| Connetor: | SC/UPC, SC/APC |
| Fiber: | G652D |
| Jacket Material: | PVC or LSZH |
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.

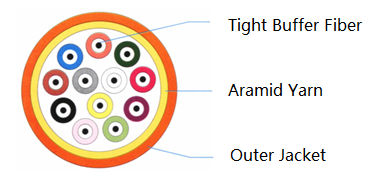

Indoor Bundle Fiber Optic Cable Construction
Features
Applications
Specifications
| Parameters | Specifications |
| Cable Type | Indoor bundle fiber optic cable |
| Fiber Type | SM (G652D, G657A) or MM (OM1~OM5) |
| Insertion Loss (dB) | ≤ 0.3 |
| Return Loss (dB) | ≥ 50 (UPC), ≥ 60(APC), ≥ 30 (MM) |
| Connector Type | SC/FC/LC/ST/E2000 or customized |
| Fiber Cores | 2~12cores |
| Pigtail Outer Dimension | 0.9mm |
| Material of Outer Jacket | PVC or LSZH |
| Cable Length | 1m,3m,10m or customized |
| Pigtail Length | 0.5m or customized |
| Durability (dB) | △IL≤ 0.2, 500 times plugging |
| Repeatability (dB) | ≤ 0.2 |
| Temperature Range (℃) | -40 ~ +85 |
Ferrule End Face Inspection Criteria
| Defects | Zone A (Area Near Core) ≤40um | Zone B (Cladding) 40~125um | Zone C (Coating) 125~250um |
| Scratch (width) | None | Light scratch (white): None | >3um: None |
| Dark scratch (black): None | |||
| Pits & Irremovable material (Diameter) | None | ≥2um: None <2um: 2pcs allowed | ≥10um: None <10um: total<20um |
| Chipping (Diameter) | None | ||
| Crack/dust/contamination | None | ||
| Epoxy ring | Width<2um, total length≤1/2 fiber diameter | ||
Ferrule End Face Geometry Parameters
| Parameters | UPC | APC |
| Radius of Curvature | 10~25mm | 5~12mm |
| Fiber Undercut or Protrusion | ≤ 100 nm | ≤ 100 nm |
| Apex Offset | ≤ 50 μm | ≤ 50 μm |
| Polishing Angle | 8 +/- 0.3 degree |
|
