| Categories | Semiconductor Substrate |
|---|---|
| Brand Name: | zmkj |
| Model Number: | dia25.4*3mmt |
| Place of Origin: | China |
| MOQ: | 10pcs |
| Price: | by case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000pcs/month |
| Delivery Time: | 2-4weeks |
| Packaging Details: | single wafer container or customzied container box under cleaning room |
| material: | Ge single crystal Ge window |
| application: | Infrared Optics Elements |
| type: | un-doped |
| resistivity: | >30Ω |
| orientation: | <100> |
| SIZE: | DIA25.4*3.0mmt |
| surface: | double side polished |
| OEM: | ok |

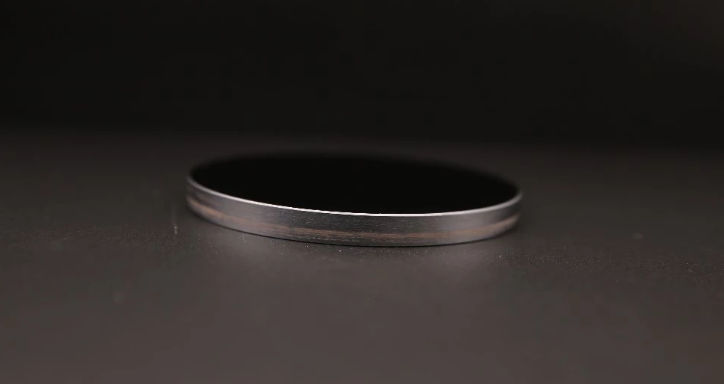

dia25.4mm Ge windows Single Crystal Germanium Ge Wafer for Semiconductor device
ZMKJ is a worldwide supplier of single crystal Germanium lens and single crystal Ge ingot , we have a strong advantage in providing single crystal wafer to micro-electronics and opto-electronics industry in diameter range from 2 inch to 6inch .
Ge wafer is an elemental and popular semiconductor material , due to its excellent crystallographic properties and unique electric properties , Ge wafer is widly used in Sensor , Solar cell and Infrared optics applications .
We can provide low dislocation and epi ready Ge wafers to meet your unique requirement. Ge wafer is produced as per semiconductor,with a good quality control system , ZMKJ Is dedicated to providing clean and high quality Ge wafer products .
we can offers both electronics grade and IR grade Ge wafer , please contact us for more Ge product information.
In the range of 2-12 μm, germanium is the most commonly used material for the production of spherical lenses and windows for high efficiency infrared in imaging system. Germanium has a high refractive index (about 4.0 through 2-14μm band), usually do not need to be modified due to its low chromatic aberration in low power imaging systems.
|
