| Categories | Stadium Perimeter LED Display |
|---|---|
| Brand Name: | JuCaiYuan |
| Model Number: | P6 |
| Certification: | CE,ROHS |
| Place of Origin: | Shenzhen,China |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | D/A, L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 ㎡/month |
| Delivery Time: | 5-10 days |
| Packaging Details: | Standard wooden case or flight case packing as customer's request |
| Module Size(mm): | 192x192mm |
| Pitch: | 6mm |
| Resolution(dots/m2): | 10000dots/msqm |
| Warranty: | 2 Years |
| Brightness(CD/m2): | ≥8500nits |
| High Light: | sport led display, perimeter led display |
| Module Resolution: | 32x32 Dot |

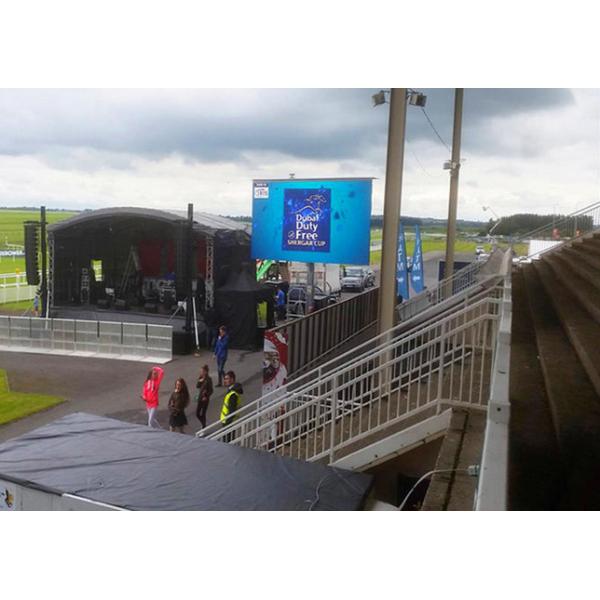

Outdoor P6 High Brightness SMD Full color Stadium LED Display For Sports events
Product Features:
1. SMD led encapsulation confirm wide view distance and good
uniformity
2. High brightness,good waterproof
IP65,anti-corrosion,anti-rust,long life span>100000hours
3.High pixel density, high resolution and high definition,perfect
display vision
4. Lower power consumption,good heat dissipation,low noise created.
5. Cabinet with locks,connectors,easy and quick to assemble without tools in short time
6. Widely used for commercial display,advertising, stage
background,mobile display. traffic display,sports led display etc.
| Pixel pitch | 6mm |
| Pixel Configuration | 1R1G1B |
| LED component | SMD3535 |
| Size of module | 192mm x 192mm |
| Resolution of module | 32 x32dots |
| Size of cabinet | 768mm X 768mm x 150mm/960mm x 960mm x 150mm |
| Resolution of cabinet | 128x 128 dots/160x160dots |
| Material of Cabinet | Iron/Aluminum |
| Weight of Cabinet | 30/45KGS |
| Brightness | >6000cd/sq.m |
| Density | 27777dots/sq.m |
| Best viewing angle | 140 /140 |
| Pixel Configuration | 1R1G1B |
| Best viewing distance | 5-60M |
| Maximum power consumption | 1000W/sq.m |
| Average power consumption | 560W/sq.m |
| Driving method | 1/8 scan |
| Control method | Synchronization |
| Gray scale | 65536 |
| Colors | 256*256*256 |
| Color temperature | 3200-9300k |
| Uniformity | 97% |
| Working voltage | AC220V/110V±10% |
| Working temperature | -20ºC~+50ºC±10% |
| Working humidity | 10% ~ 90% |
| MTBF | 10,000 hours |
| Frame frequence | 50/60Hz |
| Refresh frequence | >1920Hz |
Installation :
1. We can assist the training and technical support for the
customer in the factory, if the customer requires so.
2. We could send our engineer to guide the installation for you.
But the relevant cost should be paid by your esteemed company.
3. Our technicians will offer CAD Drawing to show how to install
the LED Display rightly and fast, of course, if you need.
