Clearvu 358 Security Galvanized Fence Panels / Mesh Panels "V" Formation Horizontal

358 Mesh Panels are anti-cutting and anti-climbing mesh fences with welded close mesh opening and thick horizontal wires. This special design makes 358 mesh ideal safety fencing and guarding materials with good visibility. It is used with posts with arms and razor barbed wire toppings to form High Security Fence System.

we supplies 358 mesh fence panels with steel posts and concertina wires for customers option.

358 SECURE MESH PANELS

358 Welded Mesh is widely used as anti-climb guarding, safety screening, airport security fencing, safety window grilles, in hospital guarding, bridge protection, airport, prison security or military uses. Flat mesh panels and V type profile panels are provided for customers.

Common Panel Size:

Materials: Heavy Low Carbon Wire, Heavy Mild Steel Wire or Stainless Steel Wire
Wire Dia.: 3.85/4mm, 4.0/4.15mm
76.2mm (3") x 12.7mm (0.5") welded at each intersection
Horizontal wires: 4mm diameter at 12.7mm centres
Vertical wires: 4mm diameter at 76.2mm centres
Fence Height: 1800, 2000, 2155, 2400, 2515, 3000mm or 4feet to 8ft
Panel Width: 8'-2 1/2"

Finish
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Colours: Standard colours are Green RAL6005, Black RAL9005 and Yellow RAL1021.
Other colours are available on request

FENCE POSTS AND INSTALLATION

Installation of Mesh Panels to Posts:

The mesh panels are attached to tubular ( pipe ) steel posts of 1-1/2"*2-3/8" OR 1-1/2"*3". The panels can be attached to the face of the posts or in between posts by using of brackets.

80x60x2.5mm RHS intermediate posts pitched at 2.525m centres 80x80x3mm RHS corner posts.

Utilise steel fixing brackets to secure panels to the front face of the posts.
Panels are butt jointed at each post for securing with double-drilled fixing brackets, posts are fitted with twin rows of M8 threaded inserts

Posts types: C post, round post and square posts, fence posts with V arm supports.

C post: 62mmx 83mmx3mm
Round Post: outside diameter: 80mm x 3mm
Rectrangular or square post: 60mm x 80mm x 3mm; 60mm x 120mm x 3mm
Post length: Standard: 2.3mm to 4m. Or custom sizes.

Material: Square steel pipe, round pipe, c type steel
Finish: Hot dipped galvanized, pvc coated
Polyester coating color: Dark green, black, etc.The posts are polyester powder coated with a galvanised substrate in the accordance with Euro norm 10147 (min. 60 micron)

installation of mesh panels to posts

Concertina Razor Wire Coils for 358 Mesh High Security Fencing Tops

Options include:
Single coil razor wire;
Cross coil razor wire;
Straight line razor wire;
Razor wire flat wrap coils.

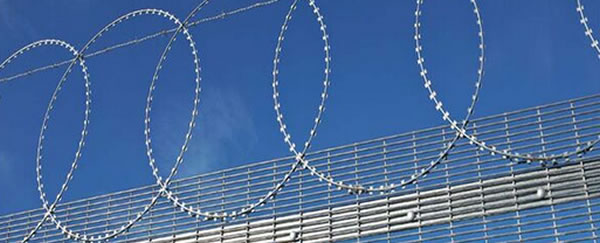

razor wire for 358 mesh fence

358 Mesh High Security Fence System ( Welded Mesh Panels, Posts and Concertina Wire Tops )

358 mesh fence-MF0001

358 mesh fence-MF0002

358 mesh fence-MF0003

358 mesh fence-MF0004
