| Categories | Stainless Steel Instrument Tubing |
|---|---|
| Brand Name: | SPEZILLA |
| Model Number: | A270-T |
| Certification: | ISO9001:2008, PED 97/23/EC |
| Place of Origin: | CHINA |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 1000 TONS / MONTH |
| Delivery Time: | 10 DAYS |
| Packaging Details: | PLY-WOODEN CASE / BUNDLE WITH PLASTIC CAP |
| Product Name: | Stainless Steel Welded Tube |
| Standard: | BPE A270/SA270 |
| Materials: | TP304L 316L |
| O.D.: | 25.4,19.05 |
| W.T.: | 1.65mm,1.5mm |
| Length: | 6.1 Meter |
| Pipe Finish: | Matte Polished |
| Shape: | Round |
| Pacakge: | Wooden Case |
| Application: | Food |
BPE Water Stainless Steel Instrument Tubing stainless steel welded
tube
SPEZILLA Offer ASTM A270 Sanitary stainless steel tubing as well
sanitary stainless steel tube, meets A270 standards available in
sanitary stainless steel AISI 316L, 304L or 304 from 1” to 4”
sizes, inside roughness ( 32 μ'/0,8 μm ) Ra 180 grit; outside
surface finishing ( 150 grit / Brushed ) acording A270. Upon
Request Inside surface finishing ( 20 μ'/0,5 μm ) Ra. for ASME
SA270 standards. To maintain clean standards tubes are packed
individually in plastic sleeves and covered with plastic caps in
both ends.
Various types of polishing operations are commonly used to reduce
the surface roughness of stainless steel sanitary tubes used in
fluid piping & related components. As the name implies, mechanical
polishing involves the application of physical force on abrasive
media to remove the irregularities.
Available Sizes:
OD from 1/2'' to 8'' (12.7MM to 203.20MM)
Wall thickness: 0.065'' to 0.083'' (1.65MM to 2.11MM)
Length: 20ft ( 6100MM)
Surface Polish:
Surface finish is 20 u-in Ra (0.5um) ID maximum, 30 u-in Ra (0.8um)
OD maximum surface roughness measured per ASME/ANSI B46.1 with the
profilo-meter reading at 90 degree to the lay. Other finishes
available upon request.
Mechanical Tests Mechanical testing is in accordance with ASTM A450, which includes
reverse bend, reverse flattening and flange tests. Eddy current
tests are performed on 100% of the tube produced.
Surface Roughness: Bright Annealed, Mill Finish is available for both ID/OD, Mechanical Polish, Electro Polish needs to specify either ID/OD.
| Stainless Steel Sanitary Tubes - ISO2037 | |||
| Outside Diameter (MM) | Wall Thickness (MM) | Lengh (MM) | Standard |
| 12.00 | 1.00 | 6000 | ISO2037 |
| 17.20 | 1.00 | 6000 | ISO2037 |
| 21.30 | 1.00 | 6000 | ISO2037 |
| 25.00 | 1.20 | 6000 | ISO2037 |
| 25.00 | 1.60 | 6000 | ISO2037 |
| 33.70 | 1.20 | 6000 | ISO2037 |
| 33.70 | 1.60 | 6000 | ISO2037 |
| 38.00 | 1.20 | 6000 | ISO2037 |
| 38.00 | 1.60 | 6000 | ISO2037 |
| 40.00 | 1.20 | 6000 | ISO2037 |
| 40.00 | 1.60 | 6000 | ISO2037 |
| 51.00 | 1.20 | 6000 | ISO2037 |
| 51.00 | 1.60 | 6000 | ISO2037 |
| 63.50 | 1.60 | 6000 | ISO2037 |
| 70.00 | 1.60 | 6000 | ISO2037 |
| 76.10 | 1.60 | 6000 | ISO2037 |
| 88.90 | 2.00 | 6000 | ISO2037 |
| 101.60 | 2.00 | 6000 | ISO2037 |
| 114.30 | 2.00 | 6000 | ISO2037 |
| 139.70 | 2.00 | 6000 | ISO2037 |
| 168.30 | 2.00 | 6000 | ISO2037 |
| 219.10 | 2.60 | 6000 | ISO2037 |
| Material | 304 (1.4301) or 304L (1.4307) 316L (1.4404) others on request |
| Dimensions DIN | DN10 - DN200 Series A and series B |
| Dimensions ISO | DN10 - DN200 Series C |
| Dimensions SMS and OD | 1" - 4" Series D |
| Inner surface | Outer surface | |
| CC | pickled W2(b) and passivated | pickled W2(b) and passivated |
| CD | pickled W2(b) and passivated | ground |
| BC | annealed and pickled, or bright annealed, W2R(b), l1g or l2g | pickled and passivated or bright annealed |
| BD | annealed and pickled, or bright annealed, W2R(b), l1g or l2g | ground |
| ASME BPE Stainless Steel Sanitary Tubing Surface Finish | ||
| Mechanically Polished Ra Max. | ||
| Surface Designation | u-inch | um |
| SF1 | 20 | 0.51 |
| SF2 | 25 | 0.64 |
| SF3 | 30 | 0.76 |
| Mechanically Polished & Electrpolished | ||
| SF4 | 15 | 0.38 |
| SF5 | 20 | 0.51 |
| SF6 | 25 | 0.64 |
| Dimensional Tolerances ASTM A270 Stainless Steel Sanitary Pipe | ||||
| Size OD | Nominal Wall | Outside Diameter(MM) | Length | Wall |
| 1/2''(12.7) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 3/4''(19.05) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1''(25.4) | 0.065''(1.65)/0.049''(1.25) | +/-0.005(0.13) | +1/8''(3.18)/-0 | +/-10.0% |
| 1-1/2''(38.1) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2''(50.8) | 0.065''(1.65)/0.049''(1.25) | +/-0.008(0.20) | +1/8''(3.18)/-0 | +/-10.0% |
| 2-1/2''(63.5) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 3''(76.2) | 0.065''(1.65) | +/-0.010(0.25) | +1/8''(3.18)/-0 | +/-10.0% |
| 4''(101.6) | 0.083''(2.11) | +/-0.015(0.38) | +1/8''(3.18)/-0 | +/-10.0% |
| 6''(152.4) | 0.083''(2.11) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 6''(152.4) | 0.109''(2.77) | +/-0.030(0.76) | +3/16"(5.00)/-0 | +/-10.0% |
| 8''(203.2) | 0.109''(2.77) | +/-0.050(1.25) | +3/16"(5.00)/-0 | +/-10.0% |
|
Cold Drawn Seamless Stainless Steel Tubing ASTM A269 A213 20FT Length
1/2'' X 0.065'' X 20FT Stainless Steel Instrument Tubing Cold Drawn Bright Annealed
2 Inch / 4 Inch Stainless Steel Tubing OD Polished Excellent Formability
304 Bright Annealed Stainless Steel Instrument Tubing 3/8'' X 0.035'' X 20FT
Seamless 304 high pressure stainless steel tubing , Polished Stainless Steel Tubing ASTM A269
Round 4 inch stainless steel Instrument Tubing Seamless EN10216-5 TC1 A+P OD 1/2''
Cold Drawn Annealed 316 stainless steel tubing,Stainless Steel Seamless Pipe
ASTM A249 316 stainless steel Instrument Tubing 20FT Length Annealed / Pickled
TP304L Stainless Steel Seamless Tubing , ASTM A269 Industrial 2 inch round steel Pipe
Welded 316L 1 inch square steel Instrument Tubing Tig Welding 1/2'' X 0.065''

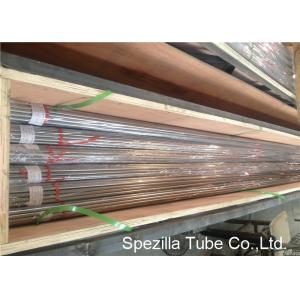

China 304 ss tubing Bright Annealed Stainless Steel Tubing Imperial Size Smooth Surface For Instrumentation wholesale
China 304 stainless tubing Precision Metric Stainless Steel Instrument Tubing Smooth Surface Food Grade wholesale

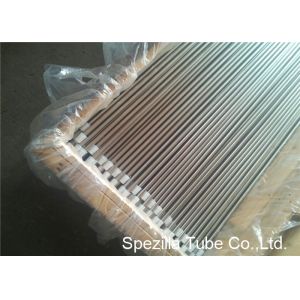

China 20 Ft Welded tainless steel welded tubes High Toughness Excellent Formability wholesale
