| Categories | Electric Mountain Bike Kit |
|---|---|
| Brand Name: | Suringmax |
| Model Number: | SRFAT500w |
| Certification: | ce |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 set |
| Price: | $60-$322 PER PIECE |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 sets per month |
| Delivery Time: | 30days |
| Packaging Details: | Good quality 5-layer corrugated paper cartons with foam for all the goods |
| Wattage: | 500w |
| Voltage: | 48V |
| Power supply: | Lithium Battery |
| Motor: | Brushless Fat Bike Hub Motor |
| Max speed: | 50km/h |
| Wheel size: | 20-29'' |
| Brake: | V/Disc Brake |
| Color: | Black |
| Display: | LCD/LED |
| Charging time: | 4-6 Hours |
Specification:
| 48v 500W Gearless Fatbike Motor | |
 | |
1.Magnet: 30mm 3. MAX speed=50KM/H 5. Color: Black 7. Double hall sensor 9.Max Torque:50N.M. | 2.Dropout:170mm/190mm 4.Weight:7.5kg 6.Brake:V/Disk brake 8.Rim support: 20-29''(700c) 10.Temperature sensor for option |
| Controller | 48V22A brushless controller |
| Battery | 48V11.6AH LG cell lithium battery |
| Display | LED/LCD Display for option |
| Throttle | Thumb / Twist throttle for Optional |
| Braking | Wuxing E-brake or brake sensor for Optional |
| PAS | 8 / 10 / 12 magnets pedal assistant system |
How to determine what you want
What's size of the wheel? -----------------------You can choose 20inch / 24inch / 26inch / 28inch / 700C
How fast do you need? -------------------------- You can choose 30km/h---50km/h ( with load )
What type of Motor cable do you need? ------------------------Normal is DJ2.8. 1If you other type, please tell us.

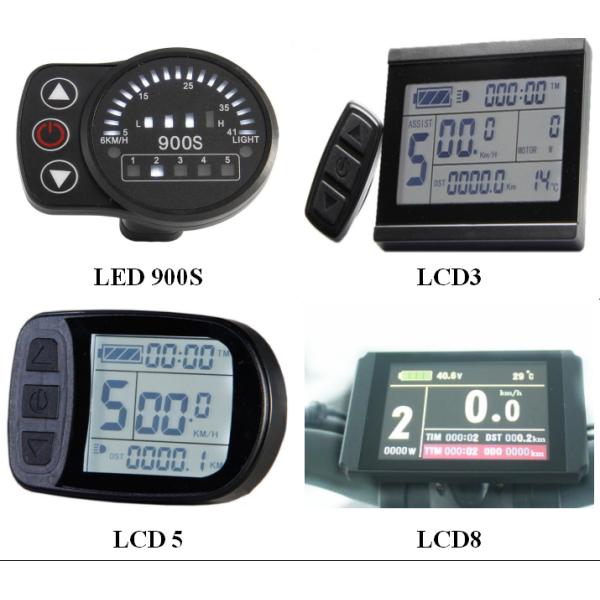

What type of display?------------You can choose LCD8/ LCD5 / LCD3/LED 900S
What type of Throttle ?---------------------Wuxing Thumb throttle or twist throttle
What type of PAS? -------------------- Normal is 8 magnets, if you need other type, please let me know.
What type of Ebrake?------------------Normal is wuxing ebrake 106pdd
Any other ideas, We are very willing to support if Possible. Because we are Factory!
Reference diagram
Battery--Hailong 48v 11.6Ah LG cell battery as default

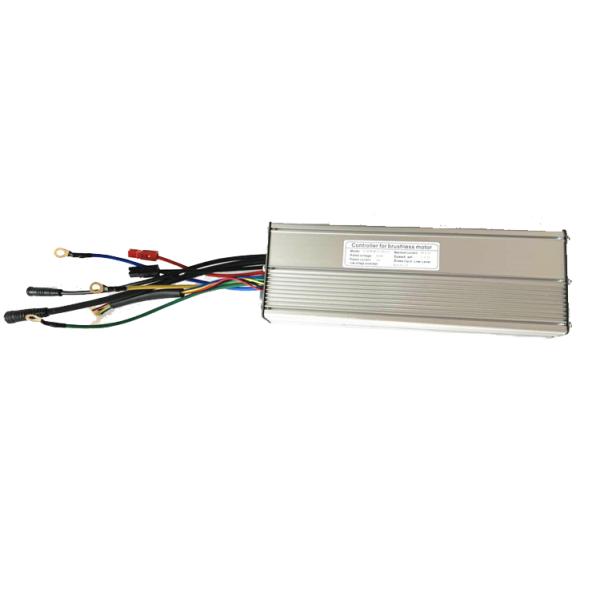

Controller--48v 22/25A square wave controller as default
We have waterproof controller and standard controller for option
Display--LCD 3 display as default
Throttle--Thumb throttle as default
PAS--8 magnets as adefault

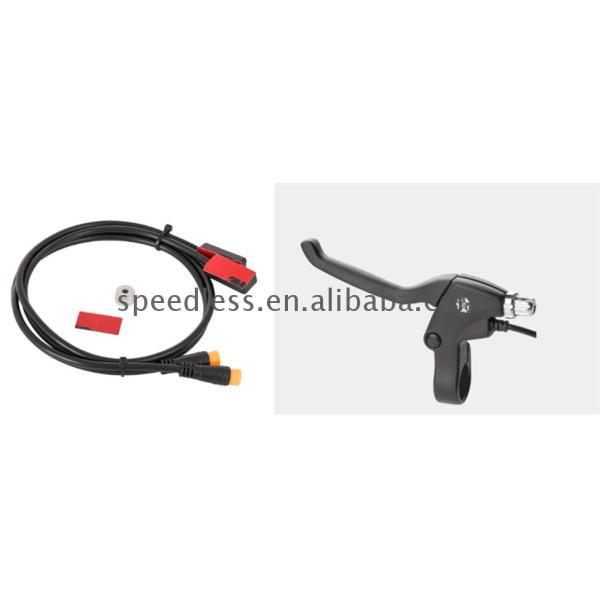

Brake sensor and brake lever--Brake levers as default
