| Categories | Industrial Touch Screen Monitor |
|---|---|
| Brand Name: | ITD/OEM |
| Model Number: | ITD19OFT5Y1 |
| Certification: | CE, FCC, RoHS |
| Place of Origin: | China |
| MOQ: | 1PCS |
| Price: | TBA |
| Payment Terms: | T/T, PayPal(173515844@qq.com) |
| Supply Ability: | 10000PCS/Month |
| Delivery Time: | 5-7 Business Days |
| Packaging Details: | 1-5pcs/CTN, Safe, Firm |
| LCD Type: | 19"Active matrix TFT-LCD |
| IP: | IP65(for front panel only) |
| Weight: | 5.5kg |
| Video Input: | VGA/HDMI |
| Power Supply: | 100-240 VAC |
| Regular Warranty: | 1 Year for TFT Panel, 2 Years for others |
| Pixel Pitch: | 0.297×0.297 |
| Luminance: | 250 nits |
| Backlight MTBF(hr): | 50000h |
19 inch flush mount pcap touch monitor true flat panel industrial monitor IP65 front panel
SPECIFICATIONS of flush mount monitor
| Model | ITD19OFT5Y1 |
| IP | IP65(for front panel only) |
| Outline Dimensions | Width: 428.12mm Height: 356.86mm Depth: 49.7mm |
| Weight(N.W/G.W) | 5.5KG |
| Packing Dimension | 525.0×190.0×455.0mm |
| LCD Type | 19"Active matrix TFT-LCD |
| Video Input | VGA/HDMI |
| Recommend Resolution | 1280×1024@60Hz,75Hz |
| OSD controls | Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset |
| Power Supply | Type: External Brick Input (line) Voltage: 100-240 VAC, 50-60 Hz Output Voltage/Current: 12V at 4A Max. |
| Power Consumption | 20W |
| Mount Interface | 1)VESA 75mm and 100mm 2)Rear Mounting Brackets |
| Regular Warranty | 1 Year for TFT Panel, 2 Years for others |
| Agency Approval | FCC,CE,RoHS Certified |
| Active Area(mm) | 376.32(H)×301.06(V) |
| Resolution | 1280×1024 |
| Pixel Pitch(mm) | 0.297×0.297 |
| Nominal Input Voltage VDD | +5V(Typ.) |
| Viewing angle (L/R/T/B) | 85°/85°/80°/80° |
| Contrast | 1000:1 |
| Luminance(cd/m2) | 250 |
| Response Time(Rising/Falling) | 5.7/2.3ms |
| Support Color | 16.7M |
| Screen Scanning | 60Hz |
| Backlight MTBF(hr) | 50000h |

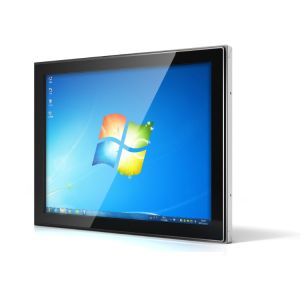

Product image of IP65 front industrial monitor:


|
