| Categories | Battery Automatic Spot Welder |
|---|---|
| Brand Name: | JXC |
| Model Number: | TWSL-700 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 13000-15000 |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100 set per month |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Wooden carton |
| Voltage: | 220V/380V,50HZ |
| Warranty: | 1 year with Lifelong maintenance |
| Size: | 700*1500*920mm |
| Weight: | 250kg |
| Battery type: | cylindrical lithium battery |
| Air pressure: | 0.4-0.6Mpa |
| Efficiency: | 2500pc/h |
| Working travel: | 300*400mm |

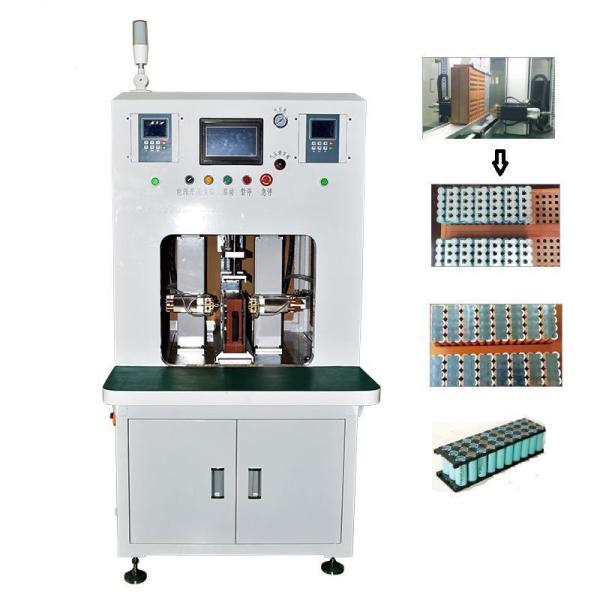

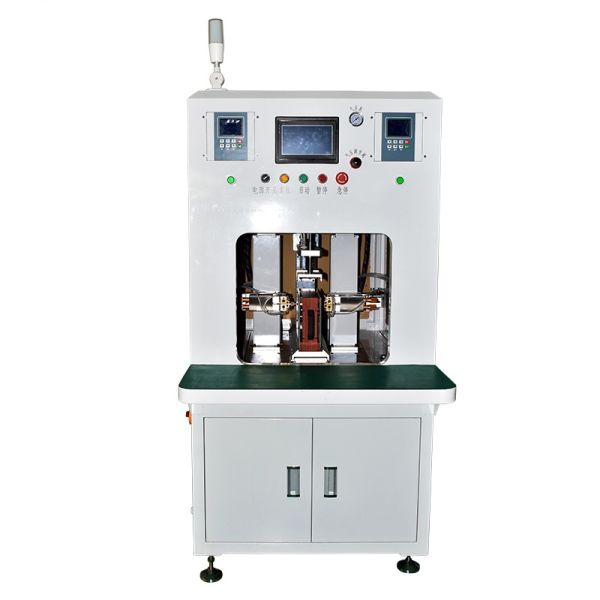

Double Side Automatic 18650 26650 32650 Cylindrical Battery Pack Spot Welder With Best Price
Product Features:
1>Machines which automatically Weld Nickel Sheet to Battery Cell Electrode.
2> Used for battery factories automatical production in power banks, laptops and ebikes, etc.
3> Do 2000pcs welding per hour.
4> Touch screen operation, easy and fast responding.
5> 0-1 worker to operate the machine, fast and with great efficiency.
Can be connected to other machines to proceed automatically.
6> Air cooling, manual programming & CAD drawing input available.
7> Overseas sales office in New Delhi, India.
8> 12 months warranty and life-time maintenance.
| Power supply: | 220V, 50HZ, 3.6Kw |
| Use pressure: | 0.3-0.8Mpa |
| X Module travel: | 0-350MM maximum 18 cores |
| Y Module travel: | 0-135MM maximum 7 cores |
| X-axis emission batteries: | 18PCS within |
| Y-axis discharge batteries Number: | Within 7 lines |
| Dimensions: | L1300 * W750 * H1300MM |
| Machine weight: | 150KG |
| Productivity: | 6 & 16 string, 5 & 16 strings, strings 4 & 16, |
| 3 & 16 series, about 2000 batteries/ hour |
| Power: | 10KVA (max) |
| Input Frequency: | 50/60Hz |
| Input voltage: | 220VAC |
| Input gas source: | 7-8 Bar (kg / cm) |
| Primary current: | 5-30A |
| Primary short-circuit current: | 1500A |
| The whole structure: | Integrated structure |
| Welding arm structure: | Telescopic swing control |
| Electrodes to the body distance: | 100 mm (Scalable adjustable) |
| Cylinder diameter: | 20 mm |
| The number of pulses: | 0-9 |
| Pulse energy level: | 0-99 |
| Automatic compensation range: | + 40V - 40V |
| Panel digital display: | 7-segment LED display |
| External dimensions: | 445 * 224 * 343 mm |
| Gross weight: | 42 kg |
