| Categories | Stainless Steel Tubes |
|---|---|
| Brand Name: | Torich |
| Model Number: | A269 |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | negotiation |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5000tons per year |
| Delivery Time: | 30-45days |
| Packaging Details: | In bundles or in wooden boxes |
| Steel grade: | 300 Series |
| Application: | Industry,Fluid Pipe |
| Type: | Seamless |
| Standard: | ASTM |
| Thickness: | 0.4-30mm |
| Outer diameter: | 3mm upto 23mm |
| Surface: | Annealing |

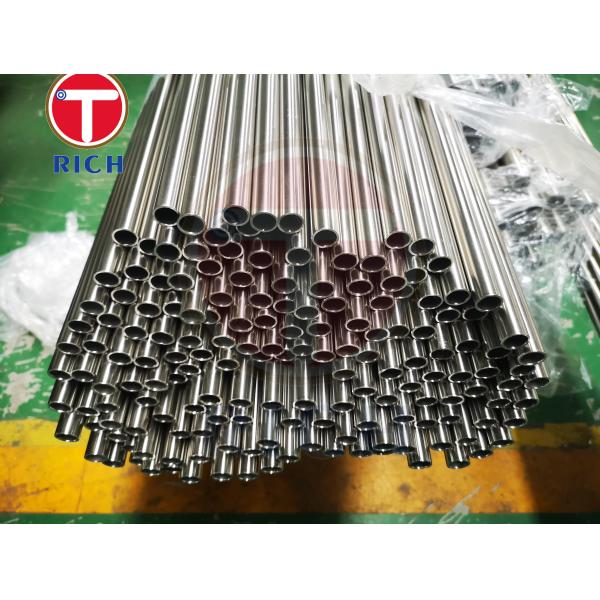

1/4 ”3/4" A-213, Gr.TP316L, BA Stainless Steel Seamless SMLS Aerospace Tube/Tubing
Quick detial
The inner surface of the tube can be bright annealed (BA) or
electropolished (EP)
Stainless Steel Clean BA/EP Pipe
Clean tubes are mainly used in high-purity gas production,
pharmaceuticals, semiconductors, biology and other
industries that require high cleanliness.
Clean tubes are mainly used in high-purity gas production,
pharmaceuticals, semiconductors, biology and other
industries that require high cleanliness. The pipes are produced in accordance with ASTM A269/A270 standards.
For environments with ultra-high cleanliness requirements, the pipes need to be nitrogen purged and packaged
in a clean room to meet the requirements. The inner surface of the tube can be bright annealed (BA) or
electropolished (EP)
Description:
Size Chart
| OD | Wall (inch) | Materials | Standard | Working Pressure (MPa) | Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) | ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 | 60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1 inch | |||||
Chemical Composition
| Chemical Composition,% | ||||||||
| Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
| Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
| UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
| C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
| Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
| P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
| S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
| Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
| Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
| Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
| Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
| N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
| Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
| Fe | 5 | min 22.0 | ||||||
| Al | 0.4 | 0.2 | ||||||
| Ti | 0.4 | 0.6-1.2 | ||||||
| Cb+Ta | 3.15-4.15 | ... | ||||||
Appliation:
Analytical instruments Semiconductor industry Liquid crystal
industry Solar energy industry
High-purity gas, chemical system, WFI system and other piping
systems with high-purity requirements
|
