200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m

200 Ton Beam Launcher Crane Bridge Girder Launcher Span 50m 40m

Beam Launcher Crane Information

China concrete railway road bridge construction Beam Launcher machine is used in the erection of precast beam bridges for span by span method of construction for precast beam girders like T beam, U beam, etc. This self-beam launcher is suitable for bridge construction over river, valley or highway and so on.

This type Beam launcher machine is suitable for the construction of bridge for roads, railways and other bridge erection construction site. Its main function is to lift the prefabricated beams, then transported onto the prefabricated pier. It has big difference from the general cranes. It requests high security.

Beam Launcher Bridge girder erection machine merges an adaptation of a wide range of work, good compact structure, convenient operation, whole crane body with safety steel structure. This product can be used not only in plain construction environment, but also can meet the construction situation of mountain highway slope, Ramp bridge.

Beam launcher body includes main beam, cantilever, under guide beam, front and rear legs, auxiliary outrigger, hanging beam crane, cantilever structure and hydraulic driving system, with high performance and strong working efficiency.

This type launching crane is well applied in highway and bridge construction site and railway construction site. It can be used for environment of no fire, no explosion and no corrosive media with temperature from -20~55C.

Beam Launcher Crane Main Technical Parameter

Beam Launcher Crane Safety Features

Safety first. .To ensure its safety, below safety devices must be equipped:

▪ Crane traveling limit switch.
▪ Overload protection device.
▪ Lifting height limit device.
▪ Voltage lower protection function device
▪ Phase sequence protection function device
▪ Emergency stop function device
▪ Rain cover for outside hoist, driving units, electric cabinet
▪ Warning indicator : flashing nights and warning sounds device
▪ Wire-less remote detector for anti-collusion.

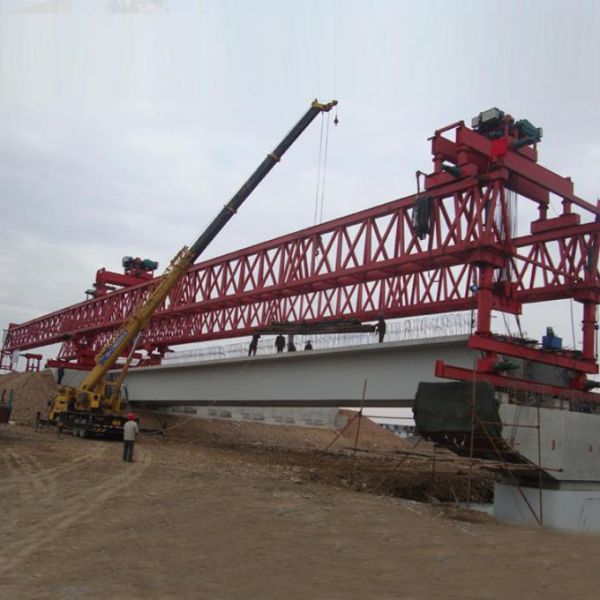

Beam Launcher Crane Images

KORIGCRANES ( HENAN KORIGCRANES CO., LTD) located in crane hometown of China (cover more than 2/3 crane market in China), who is a trusted professional industry crane manufacturer and leading exporter. Specialized in design, manufacturing, installation and service of Overhead crane, Gantry crane, Port crane, Electric hoist etc, we have passed ISO 9001:2000, ISO 14001:2004, OHSAS 18001:1999, GB/T 19001-2000, GB/T 28001-2001, CE, SGS, GOST, TUV, BV and so on.

To meet the demands of the oversea market, we independent research and development European type overhead crane, gantry crane; electrolytic aluminium multi-purpose overhead crane, hydro-power station crane etc. European type crane with light dead weight, compact structure, lower energy consumption etc. Many main performance reach the industry advanced level.

KORIGCRANES Widely used in machinery, metallurgy, mining, electric power, railway, petroleum, chemical, logistics and other industries. Service for hundreds of large enterprises and national key projects such as China Datang Corporation , China Guodian Corporation, SPIC, Aluminum Corporation Of China（CHALCO）, CNPC, Power China , China Coal, Three Gorges Group, China CRRC, Sinochem International, etc.

Our cranes has been exported cranes to more than 110 countries for example Pakistan, Bangladesh, India, Vietnam, Thailand, Indonesia, Philippines, Malaysia、USA, Germany, France, Australia, Kenya, Ethiopia, Nigeria,Kazakhstan, Uzbekistan, Saudi Arabia、UAE、Bahrain、Brazil, Chile, Argentina, Peru etc and received good feedback from them. Very happy to be friends with each other come from all of the world and hope to establish long-terms good cooperation.

KORIGCRANES LIFTING YOUR FUTURE.

KORIGCRANES has steel pre-treatment production lines, automatic welding production lines, machining centers, assembly workshops, electrical workshops, and anti-corrosion workshops. Can independently complete the whole process of crane production.
