| Categories | Fiberglass Filter Cloth |
|---|---|
| Brand Name: | HUADING |
| Model Number: | HD-WOVFFC |
| Certification: | ISO9001:2015 |
| Place of Origin: | CN |
| MOQ: | 100 Square meter |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200000 Square meter per Month |
| Delivery Time: | 10-15 Work Days |
| Packaging Details: | Polybag |
| Material: | Fiberglass |
| Technology: | Woven |
| Weight: | 300gsm - 800gsm |
| Width: | Max 220cm |
| Filter type: | Pulse jet; Reverse |
| Application industry: | Cement plant; Steel plant; Power plant; Waste incineration; Carbon black |

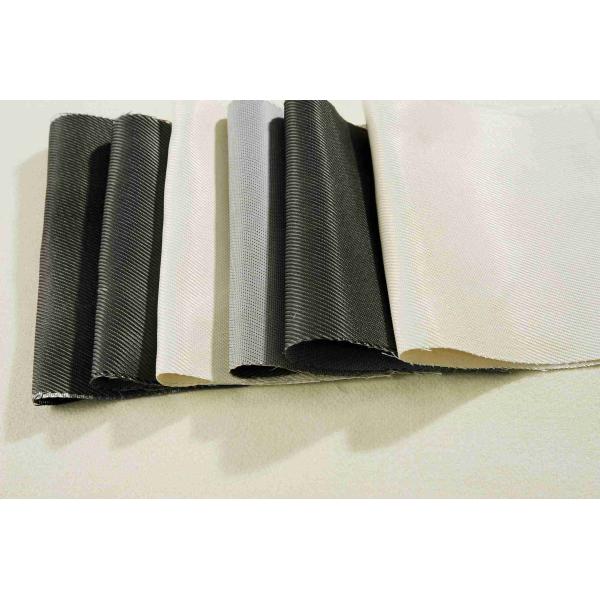

Woven Fiberglass Fiber Cloth For Fiberglass Filter Bag
Fiberglass woven cloth is loomstate or without treatment glass cloth. It is made of non-alkaline DE-grade fiberglass yarn by looms.
This kind of fiberglass cloth can not directly be used for sewing filter bag. It needs to do chemical treatment then can be used for sewing filter bag.
PRODUCT SPECIFICATION SHEETS
| Item | Density (thread/cm) | Weave Pattern | Gram Weight (gsm) | Tensile Strength (N/25mm) | Air Permeability (cm3/cm2/s@127pa) | |
| Warp | Weft | |||||
| HD-01 | 19×16 | Double Twill | 710±10 | ≥2500 | ≥2300 | 33-40 |
| HD-02 | 18×10 | 1/3 Twill | 460±10 | ≥2000 | ≥1000 | 30-35 |
| HD-03 | 21×12 | 1/3 Twill | 315±10 | ≥1400 | ≥1000 | 35-40 |
| HD-04 | 19×16 | Double Twill | 610±10 | ≥2300 | ≥2000 | 33-45 |
| HD-15 | 21×19 | 2/5 Satin | 550±10 | ≥2400 | ≥2400 | ≤60 |
|
