| Categories | Li Ion Battery Research |
|---|---|
| Brand Name: | Gelon |
| Model Number: | GN-S100F |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1SET |
| Price: | USD2210-2240/SET |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sets/month |
| Delivery Time: | about 15days |
| Packaging Details: | Wooden Case/Can Custom |
| Molding size Max: | L62*W46mm |
| Molding pressure Max.: | 1T (1MPa compressed gas), adjustable |
| Molding accuracy: | ±0.05mm |
| Forming thickness: | 0.1~0.2mm aluminum plastic film |
| Installation size: | L370mm*W245mm*H336mm |
| Weight: | about 45Kg |
| PRODUCT MODEL: | GN-S100F |

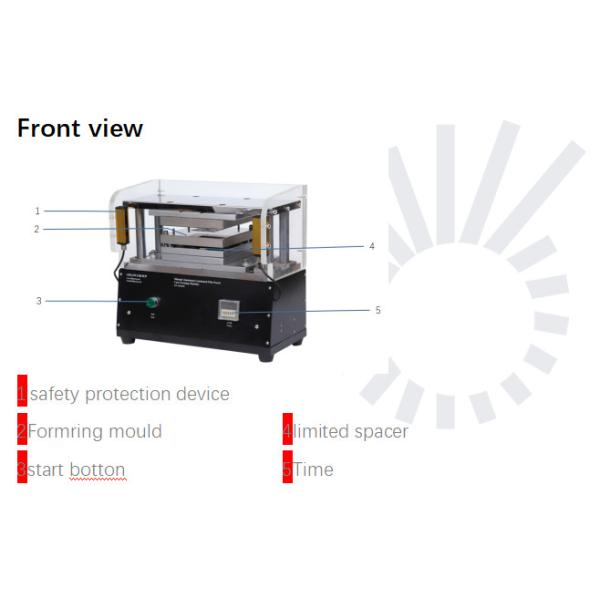

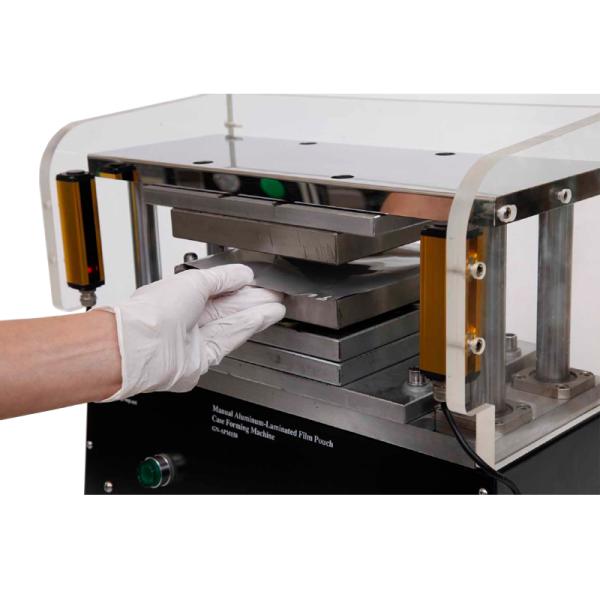

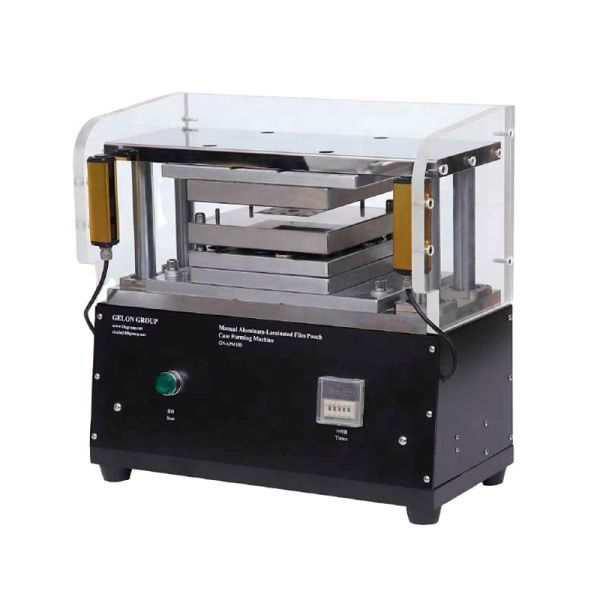

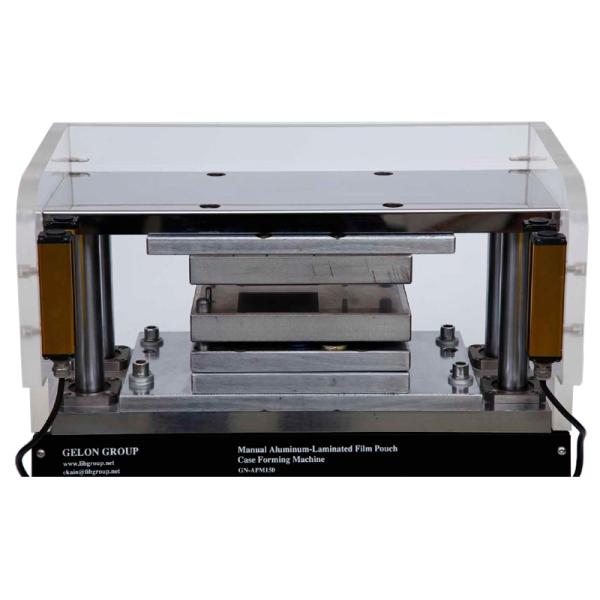

| PRODUCT NAME: | Aluminum-laminated film forming machine |
Pouch Cell Desktop Machine Aluminum Laminated Film Lab Pouch cell case Forming Machine Battery Making Machine
Punching depth Max | 6mm, high tensile strength is related to the quality of aluminum plastic film, standard depth gauge of 3, 4, 5, 6mm |
Standard mold | L62*W46mm, aluminum plastic film size is required to be 160mm long and 110mm wide |




|
