Wireless Electric Motorized Transfer Trolley , Safety Battery Powered Transfer Cart

Categories Battery Transfer Trolley
Brand Name: Remarkable
Model Number: RWP
Certification: CE,ISO,SGS
Place of Origin: Henan,China
MOQ: 1
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 600/set
Delivery Time: 30-45 work days
Packaging Details: 1.Main body of the machine is packed with high-quality waterproof plastic cloth. 2. Electrical parts are specially protected, and the spare parts are packed in standard export fumigation free wooden boxes.
Power supply: Maintenance free battery
Load: 1-300 Tons
other name: Material transportation equipment
Operation method: Wireless remote control & Hand operate pendant
Traveling speed(m/min): 0-30 (Stepless speed regulation)
Brake mode: Electromagnetic brake
Battery charger function: Automatic charging
Move Way: Forward, backward, turning while driving with no stop
high liht: motorized material transfer vehicle, material transfer trolley, battery powered flat cart
  • Product Details
  • Company Profile

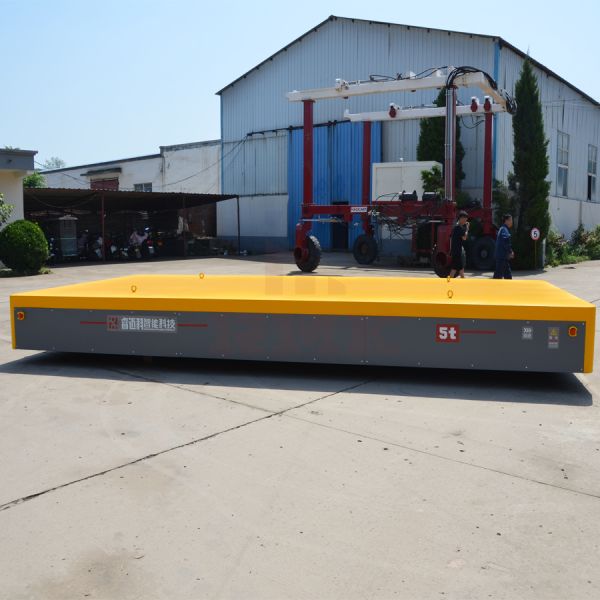

Wireless Electric Motorized Transfer Trolley , Safety Battery Powered Transfer Cart

Wireless Electric Motorized Transfer Trolley , Safety Battery Powered Transfer Cart


Electric battery powered transfer cart, also known as trackless flat car and trackless electric transfer cart, belongs to a special type of electric transfer carts and is one of the most advanced electric transfer cars. Trackless transfer cart does not need track and can turn 360° flexibly. It has buttons and functions such as forward, backward, left and right rotation, speed regulation, emergency stop, abnormal light indication, power on light indication, authority key, etc. This type of transfer cart has been used for cross span transportation in multiple workshops,is a kind of Material transportation equipment. The trackless trolley is separated from the dependence on the track and realizes the flexibility and liberalization of mobile operation. It not only saves the cost, but also improves the flexibility, which can adapt to the working environment of various conditions. It is more convenient to transport materials in the factory site and workshop, as well as wharf transportation, which wins the favor of many enterprises and manufacturers.


At present, with the continuous development and progress of various industries, the demand for electric flat cars in factories is also increasing. In addition, many enterprises with higher degree of automation have more and more diversified requirements for electric transfer carts, especially for longer distance transportation and transportation. There is no need to specially consider the running route of flat cars, and how to avoid laying tracks in a large range Problems, in view of these needs, trackless electric transport cars began to get popular.



Technical parameters for electric transfer carts
1rated load(t)5101520304050150
2impacted rated load(t)7.51522.530456075225
3structure of framesteel plates welded, beam structure
4max. wheel load(t)2.84.34.85.67.7101227
5ground requirementcement floorsteel plate ground
6table size(mm)3000×20003600×20004000×22004500×22005000×22005500×2300

6000×

2300

10000×

3000

7height of the whole cart(mm)4505306006006507007001200
8ground clearance(mm)5075
9wheels base(mm)1500170018002000
10axles distance(mm)250031003400390043004800520010000
11turning radius(mm)250131013401390143014801520110001
12turning typeturning while driving with no stop
13control method for turningcontrol button
14turning structuremechanical
15motor power(Kw)3.556710121515
16wheel diameter(mm)Ф300 x 4Ф350 x 4Ф400 x 4Ф400 x 6Ф500 x 6Ф600 x 8
21battery modelD-250 x 24D-33 x 24D-400 x 24D-440 x 24D-250 x 36D-330 x 36D-440 x 36D-600 x 36
22battery maintenancefree of maintenance
23charger's installationinstalled on cartsplit-type
24charger functionautomatic charging
25radar control3-0.3m, automatic stop for obstacles
26warning equipmentsound and light
27other functionsturning light, night light and power display

Trackless electric transfer cart is a kind of electric transfer cars without special track. It is mainly powered by battery and equipped with maintenance free battery, which can reduce the daily maintenance of flat car. The trackless electrical car has no cable and fixed running track, so it can turn freely. Moreover, after special design and configuration, the turning radius is relatively small, and it can even realize in-situ rotation. The turning process is particularly flexible. It has less restrictions on the surrounding operation area layout, and can make corresponding adjustment

for uneven ground.
