Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Categories Tungsten Carbide Sleeves
Place of Origin: Sichuan, China
Brand Name: Kedel
Model Number: KD-2001
Supply Ability: 1000 Pieces per month
Packaging Details: foam + small box + carton for carbide collar bushings
MOQ: 50 Piece/Pieces
Price: $1.00 - $46.60 / Piece
Certification: ISO9001:2015
Payment Terms: T/T,L/C,Western Union,MoneyGram
Type: FLANGED, Sleeve
Material: carbide
Product name: China Minjiang guide bushing polishing carbide collar bushings
Application: Oil Pump
Product Material: 100% Original Tungsten Cabride
Finishing: Polished
Size: Customized
Bush types: Tube
Grade: YG8C, YK05, etc
Certificate: ISO9001:2008
Features: Wear-resisting
Port: Shanghai/Shenzhen
  • Product Details
  • Company Profile

Tungsten Carbide Guide Bushing YG8C Grade for Oil Pump 16mm

Factory Deriectly guide bushing polishing carbide collar bushings

The cemented carbide axle sleeve will be used mainly for rotating support,aligning anti-thrust and seal of the axle of moter, centrifuge, protector and separator of the submerged electric pump in the adverse working conditions of high speed rotation, sand lash abrasion and gas corrossion in the oil field, such as slide bearing sleeve, motor axle sleeve, aligning bearing sleeve, anti-thrust bearing sleeve and seal axle sleeve.

Our advantages:
  • Use 100% Raw material, strict incoming inspection.
  • Overpressure sintering, increasing the densification of the alloy teeth and increasing the 30% life span.
  • Can be customized according to the requirements of the customer.
Production Process

Milling--Proportioning as required--Wet grinding--Dry--Granulation--Press--Sinter--Inspection--Package

Specifications

there are tungsten carbide bushing specifications as below showed, we also accept your inquiry with drawings.

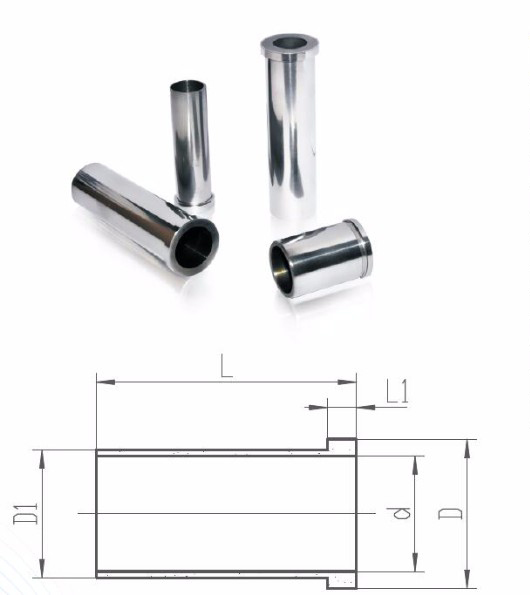

Carbide Bushing Diagram
ModelspecificationDD1dLL1
MJP-ZGA-101001616.013.910.3250.83.18
MJP-ZGA-101001416.013.910.3276.23.18
MJP-ZGA-101001917.015.110.0049.44.00
MJP-ZGA-101001822.018.8814.2925.43.18
MJP-ZGA-101002022.018.8814.2938.13.18
MJP-ZGA-101002122.018.8814.2950.813.18
MJP-ZGA-101002222.018.8814.2957.153.18
MJP-ZGA-101002322.018.8814.2969.853.18
MJP-ZGA-101002421.8420.4517.4830.52.87
MJP-ZGA-101002523.421.015.0061.04.00
MJP-ZGA-101002623.421.014.8534.00
MJP-ZGA-101002723.421.014.861.04.00
MJP-ZGA-10100282421.016.061.011
Products Show

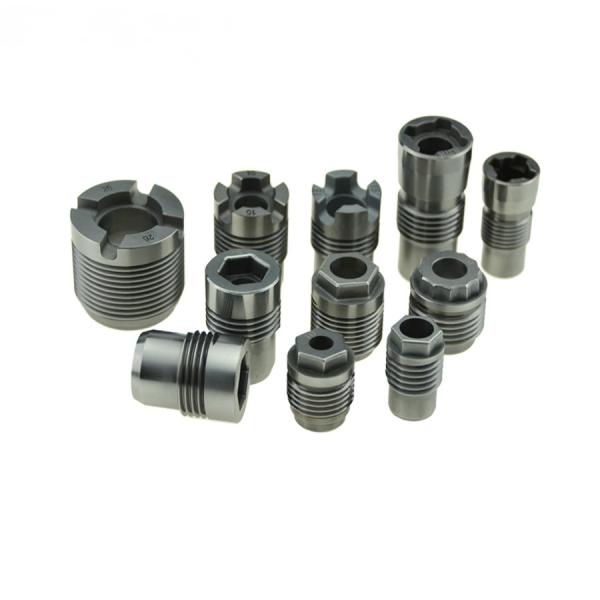

Product Image 1
Related Products
Production Equipment
Tungsten carbide production equipment 1
Tungsten carbide production equipment 2
Tungsten carbide production equipment 3
Tungsten carbide production equipment 4
Tungsten carbide production equipment 5
Tungsten carbide production equipment 6
Quality Control Equipment
Tungsten carbide quality control equipment 1
Tungsten carbide quality control equipment 2
Tungsten carbide quality control equipment 3
Tungsten carbide quality control equipment 4
Tungsten carbide quality control equipment 5
Tungsten carbide quality control equipment 6
Product Exhibition
Tungsten carbide product exhibition 1
Tungsten carbide product exhibition 2
Tungsten carbide product exhibition 3
Tungsten carbide product exhibition 4
Tungsten carbide product exhibition 5
Tungsten carbide product exhibition 6
Tungsten carbide product exhibition 7
Tungsten carbide product exhibition 8
Tungsten carbide product exhibition 9
Packing & Delivery

Packing Details: Packing carbide collar bushings, use plastic foam, solid plastic box and carton.

Packing Details
Best carbide collar bushings

Our carbide collar bushings products have the advantages of high hardness, corrosion resistance,wear resistance and good toughness. Our factory accepts non-standard customized products, the price varies with the raw material, the cost and the order quantity.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
