| Categories | Evaporator Tube |
|---|---|
| Brand Name: | Transense |
| Model Number: | CU-DHP;C12000 |
| Certification: | Rohs;ISO9001;ISO14001;ISO45001;PED4.3 |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 ton |
| Price: | USD LME Cu + Fabrication cost |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 200 Tons one month |
| Delivery Time: | 3-4 weeks |
| Packaging Details: | Bundle and wooden case |
| Material: | CU-DHP;C12000; |
| Annealing state: | semi-hard |
| Standard: | ASTMB68 |
| Surface: | Washed and clean |
| Alloy Or Not: | Non |
| Grade: | Copper |
| Product namee: | Evaporator Tube Suitable For Flooded Evaporator In The Shell Heat Exchanger |
| Color: | Red |
| Port: | Shanghai |
Heat Exchanger Tube Suitable For Flooded Evaporator In The Shell Heat Exchanger
Product Description

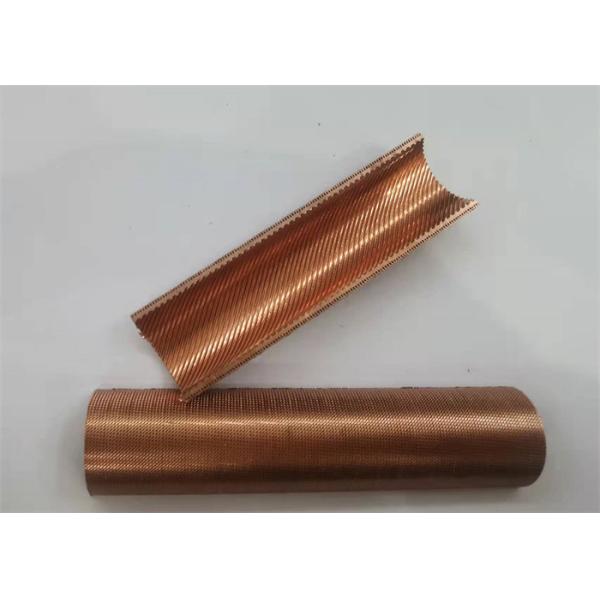

The heat exchanes efficiency is enhanced by the special design Furthermore, enhancement of the inside surface of the evaporator tube reduce forming the thermal resistance on the inside surface of tube and the heat exchange efficiency is improved a lot.The surface of the evaporator tube is densely covered with micropores, and the lower part of the evaporating hole is connected with a groove. This structure of evaporator tube improves the density of the core of the vaporization and promotes the heat transfer effect of the boiling.
Application
Evaporator tubes suitable for full night or falling film evaporators.The evaporator tube especially suitable for flooded evaporator in the central air-conditioner centrifuge, the shell heat exchanger.
| Evaporator Tube Suitable For Flooded Evaporator In The Shell Heat Exchanger | |||||||||
| Item | Light tube | Wing fragment | |||||||
| O.D. | O.D. | Wall Thickness | minimum Wall Thickness | Ridge Height | Nominal outside surface area | actualoutside surface area | Nominal inside surface area | Nominal inside surface area | |
| mm | mm | mm | mm | mm | ㎡/m | ㎡/m | ㎡/m | ㎡/m | |
| 1 | 15.88 | 15.7 | 0.635 | 0.56 | 0.3 | 0.0499 | 0.1698 | 0.043 | 0.0657 |
| 2 | 19.05 | 18.85 | 0.635 | 0.56 | 0.38 | 0.0598 | 0.2056 | 0.0529 | 0.0901 |
|
