| Categories | 12V LiFePO4 Batteries |
|---|---|
| Brand Name: | HUAXING |
| Model Number: | HX1224 |
| Certification: | MSDS |
| Place of Origin: | China |
| MOQ: | 5pcs |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 50 pks per day |
| Delivery Time: | 20-30 days |
| Packaging Details: | Carton |
| Voltage: | 12.8V |
| Capacity: | 24Ah |
| Max charge current:: | 24A |
| Max discharge current:: | 24A |
| Peak current: | 48A |
| Operating temperature: | -20℃-60℃, -22°F ~ 176°F (-30℃~80℃) |
| OEM/ODM: | YES |
| Features: | Long life, large capacity and good shock resistance |

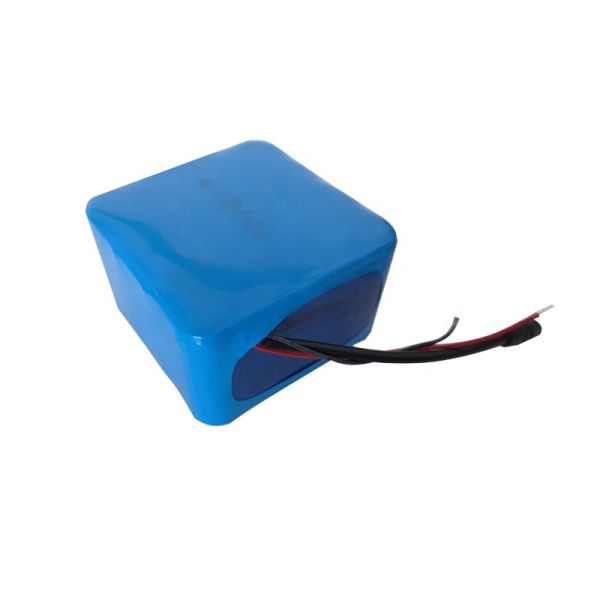

Rechargeable Phosphate 24Ah 12V LiFePO4 Batteries For Electric Bike
Rechargeable 12v 24ah Lithium Iron Phosphate Battery For Electric Bike
Features of Electric Bike Battery:
Long cycle life
No memory effect
High energy density
Pollution-free
High discharge rate
Light weight
High working voltage for single battery cells
Capacity, resistance, Voltage, platform time consistency is good
With short-circuit production function, safe and reliable
Good consistency, low self-discharge
Basic specification of Rechargeable Lithium Iron battery:
Item | Specification |
Nominal Voltage | 12.8V |
Nominal Capacity | 24 AH |
Size | Customized |
Weight | 2.4KG |
Max. Charging Current | 1C |
End-of-charge Voltage | 14.6V |
Charging Method | ≤1 C at CC/CV |
Max. Continuous Discharging Current | 24A |
End-of-discharge Voltage | 8V |
Max. Pulse Discharging Current | 48A |
Cycle Life | ≥2000 cycles |
Operating Temperature Range | Charging Temperature: 0~60 °C Discharging Temperature: -20~ 60°C Storage Temperature: -20~ 45°C |
Main Applications:
RV ,Motorhome,Electric two-wheeled vehicle, three-wheeled vehicle, four-wheeled low-speed vehicle, scooter, golf cart, forklift and so on.
Telecommunication, back-up power supply, UPS
Storage energy for solar system, solar street, home energy storage and so on

Inner Cell performances:
Cell packaging:
Battery packaging:
|
