| Categories | Outdoor Digital Totem |
|---|---|
| Brand Name: | Maxbright |
| Model Number: | T750EDCP-4K |
| Certification: | CE |
| Place of Origin: | Shenzhen, China |
| MOQ: | 1 |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100 sets / Month |
| Delivery Time: | 4~5 weeks |
| Packaging Details: | Pearl cotton shock absorption + wood frame packaging |
| Panel Type: | a-Si Active Matrix TFT-LCD |
| Resolution: | 3840x 2160 |
| Brightness: | 2500nits ~3000nits |
| Power Consumption: | 900Watt |
| Operating Temperature: | -30C - 50C |
| Operating Voltage: | 100 - 240 VAC 50-60Hz |

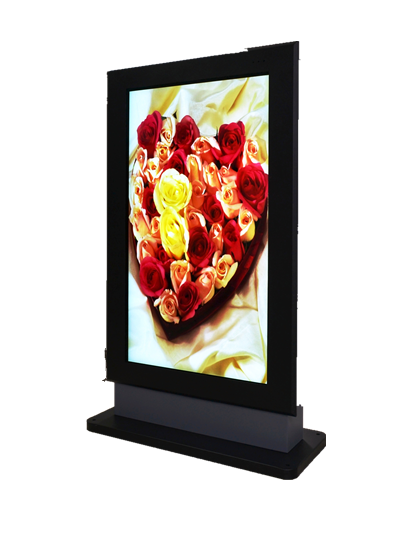

75 Inch 3000 Nits Outdoor Digital Totem 3840x2160 Resolution
Maxbright 75" High Bright Outdoor Advertising Totem Model : T750EDCP- 4K
LED Array Backlight Enhanced
Model: T750EDCP- 4K
Feature Of Outdoor LCD Digital Signage
1. Comfortable 3D vision
- Impressive 3D experience, obvious pop-out effect and adjustable depth of field, ensuring comfortable viewing.
2. Superior lenticular lens technology
- Independently developed lens film with world-leading quality offering ultrahigh precision and high transmittance.
3. Precise adhesion
- High-precision aligned full adhesion technology, ensuring quality 3D effect with naked eyes.
4. Superior image quality guaranteed with algorithms
- World-leading 3D image interleaving algorithm and multi-view conversion algorithm.
5. Clear and fine image of the digital signage screen
- Ultra-HD 4K panel in combination with 3D image processing technology to avoid double image.
| PANEL TYPE | a-Si active matrix TFT-LCD |
| ACTIVE AREA | 1649.664 x 927.936 mm portrait orientation |
| NATIVE RESOLUTION | 2160 x 3840 RGB |
| PIXEL PITCH | 0.429(H) x 0.429(V) mm |
| COLORS | 1.07 Billon, 10 bits |
| HORIZONTAL FREQ. | 110KHz ~ 139.5KHz |
| VERTICAL FREQ. | 98Hz ~ 122Hz(DVB/PAL), 108Hz ~ 122Hz(NTSC) |
| BRIGHTNESS | 2500-3000 cd/m2, LED Backlight Enhanced |
| CONTRAST RATIO | 1200:1, Dynamic contrast ratio: 10000:1 |
| DIMMING | Auto-dimming by Light Sensor |
| VIEWING ANGLE | 89/89/89/89 |
| RESPONSE TIME | 6msec typical |
| INTERFACE | VGA, HDMI x 2, or DVI |
| MEDIA PLAYER | Media Player (RK 3288) (option) |
| REMOTE CONTROL | Support for Full OSD Features |
| OPERATING VOLTAGE | AC 100 ~ 240V 60/50Hz |
| POWER CONSUMPTION | 900 W at Max. Brightness Level |
| STANDBY MODE | 5 Watt or less |
| ACCESSORIES | AC Power Cord, Remote Controller |
| HDMI, VGA cable x 1 | |
| OPERATING | Mini PC: i3 CPU 4GB DDR2 |
| (option) | 500G HDD, 5 x USB ports, 1 x RJ45, WiFi (option) |
DIMENSION NET WEIGHT | 2500(H) x 1260(W) x 260(D) mm, (without air-con) 190 Kg approx (without air-con) |
| Waterproof IP65 Enclosure | |
| COOLING | By cooling fans controlled by MCU for outdoor |
| 1000W air-conditioner for harsh outdoor(option) | |
ENVIRONMENTAL OPTION | Operating Temperature -20-50oC, Wide temp. -30-50oC (with cool/warm air-con) |
| Operating Humidity 10%-85% | |
| Storage Temperature -30-60oC | |
| Storage Humidity 5%-90% | |
| WARRANTY | One Year STD, two years option |
|
