| Categories | Golf Cart Batteries |
|---|---|
| Brand Name: | LEADYO |
| Model Number: | LP48V030 |
| Certification: | UN38.3, CE,MSDS,UKCA |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram,Online |
| Supply Ability: | 60Mwh |
| Delivery Time: | 15-45 Days |
| Packaging Details: | UN3480 Standard Export |
| Nominal voltage: | 51.2V |
| Nominal capacity: | 30Ah |
| Weight: | 15kg |
| Max charge current: | 30A |
| Max discharge current: | 30A |
| Case: | Metal case/PVC |
| Connector: | Anderson or others |
| High Light: | LiFePO4 30Ah 60Ah 48 volt lithium battery pack for electric golf cart |

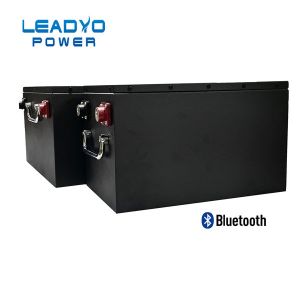

LiFePO4 30Ah 60Ah 48 volt lithium battery pack for electric golf cart
Lithium Iron Phosphate Battery 48V 30Ah
Nominal Voltage 51.2V
Nominal Capacity 30 Ah
Capacity @ 6A 300 min
Energy 1536 Wh
Resistance ≤30 mΩ @ 50%
SOC Self Discharge <3% / Month
Balancing function
With Smart BMS has the over charge, over discharge, over current, short circuit, Over Temperature protection and balance function.
We provide:
| ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS | |||
| Nominal Voltage | 51.2V | Terminal Type | M8 | |
| Nominal Capacity | 30Ah | Weight | 15kg | |
| Nominal Energy | 1536Wh | Case Dimension(L*W*H) | customized | |
| Internal Resistance | ≤30 @50% SOC | Case Type | Metal case/ PVC | |
| Capacity | @6A: 300minutes(5hours) | Cell type / Chemistry | LiFePO4 | |
| Self Discharge | 5% /per month | LCD or Bluetooth Function | Optional | |
| Maximum In Series | NO | BMS:low voltage,high voltage,over temperature, | ||
| Maximum In Parallel | No limit | Over current,short-circuit protection .etc | ||
| Discharge Current and Voltage Specifications | Charge Current and Voltage Specifications | |||
| MAX Continuous Discharge Current | 30A | Max Charge Current | 30A | |
| Peak Current | 80A | Recommended Charge Current | 6A - 15A | |
| Discharge pulse curret | 100±10A (31±10ms) | End of Charge voltage | 57.6V±0.2V | |
| BMS Low Voltge Cut-off | 40V | End of discharge voltage | 40V | |
| Short Circuit Protection | 200-800 µs Auto recover or charge release | Balancing Voltage | 3.6V±0.05v pc | |
| Temperature Ranges | COMPLIANCE SPECIFICATIONS | |||
| Discharge Temperature | -20～+65℃ | Certifications | CE for Battery Pack | |
| Charge Temperature | -20～+45℃ | UL1642 & IEC62133 for cells | ||
| Storage Temperature Range | -20～+45℃ | |||
| BMS High Temperature Protection | 90℃ | Shipping classification | UN 3480 | |
| Battery High Temperature Protection | 60℃ | |||
FAQ
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with
the warranty period.if any quality problems on our side in this
period, Please show us video or photos for confirm before we sent
solution.
Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth
communication with the batteries. and YOU can rename your battery
in the App.
Q: What kind of certificates do you have?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
Q:Do you have MOQ ?
A:No limited. Small order also welcome.More quantity has better
price, we will check the best price for you.
Q. If your lithium battery goes into protection mode, how do you
wake it up?
A: Using lithium chargers to wake up the battery. The lithium
charger wakes up the batteries automatically.
|
