Name: IP40 600600mm Customized Panel Light dimming 120LPW For Office With 5 Years Warranty
Brand: Dualrays
Price: 1 USD

Home > Lighting Accessories >

IP40 600*600mm Customized Panel Light dimming 120LP/W For Office With 5 Years Warranty

Categories	Tailored Solution
Brand Name:	Dualrays
Certification:	CE ROHS SAA LM79 ENEC
Place of Origin:	China
MOQ:	10pcs
Price:	negotiate
Payment Terms:	T/T, Western Union
Supply Ability:	50000 per month
Delivery Time:	5-8 work days
Model Number:	DR-PL0303- 18NB22X
Viewing angle(°):	120
Type:	Led Modules
Power:	18,24,36,48,60,72W

Contact Now

Add to Cart

Product Details
Company Profile

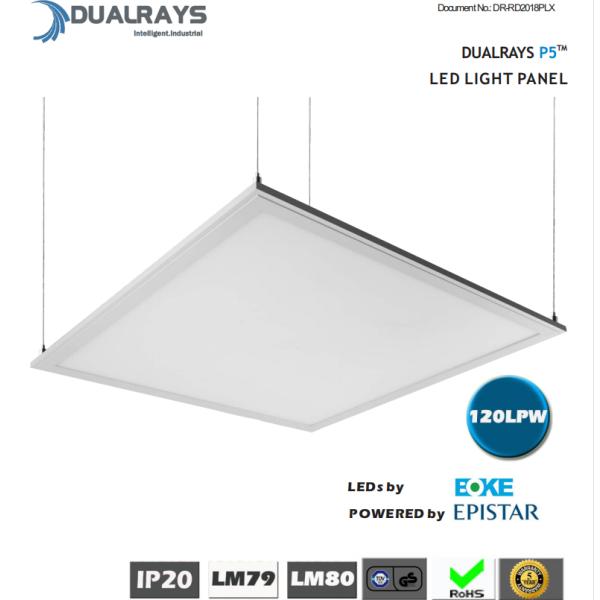

IP40 600*600mm Customized Panel Light dimming 120LP/W For Office With 5 Years Warranty

9.5mm 11.9mm Thickness Panel Linear LED Module Waterproof IP20 IP65

IP20 IP65 Waterproof Protection 9.5mm(BASELine Version) And 11.9mm (PROLine/ PRIMELine Version) Thickness Panel Light

> BASELine Version: > STANDARDLine Version: 100LPW > PROLine Version: 120LPW > PRIMELine Version: 140LPW > 360° flexible screwless installation,convenient and labor cost saving; > IP20/IP65 Waterproof Protection for option; > 120° Beam angle; > UGR<19 for option; > Direct Emitting with RGBW,Anti-corrision RGBW for option; > 9.5mm(BASELine Version) and 11.9mm (PROLine/ PRIMELine Version) Thickness Optional; > Multiple Installations: Built-in, Suspension,Surface mounted; > Various intelligent control: 1-10V, DALI,Zigbee for Option; > No UV or IR and completely mercury free; (P5 LED Panel Light) > Standard Color for the Al Frame is RAL9003,RAL9016 optional(Matt White); > L70/B20 @ 50.000h; > Customized supported for special projects; > EPISTAR/SAN'AN SMD2835/4014 LEDs: LM80/TM-21 Available; > LM79/TM21/ISTMT/LCP and IES/LDT files available; > Europe Market: CE(EMC+LVD),RoHS,TUV/GS,CB Pending,D-Mark; > North American Market: ETL/CETL,DLC Premium Pending; > Oceania Market: SAA,C-Tick,RCM

3 meters cable with Europe plug is available;

3T Japen Misubishi LGP, 3T Taiwan Chimei LGP, 2.5T China LGP optional;

Custom-made size is available, UGR<19 is available;

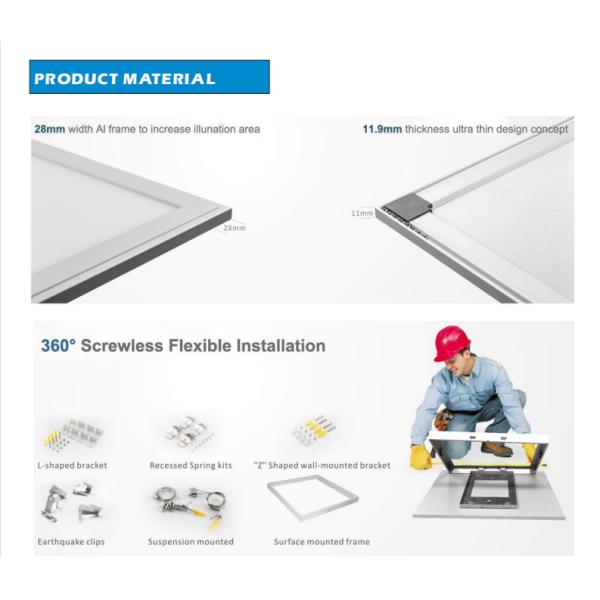

Elegent design, adopting high quality 6063 Al for housing, excellent heat dissipation;

28mm width Al frame to increase illunination area;

LEDs light source protector inside;

Protection cable together with lamps for 2nd protection;

Innovative 360° installation screwless flexible installation design according to the actual

installation ocassions;

11.9mm thickness ultra slim design, 25mm width Al frame can greatly increase the

illumination area;

300*300mm, 300*600mm, 600*600mm, 620*620mm, 300*1200 and 600*120mm size

for option;

100LPW for Standard Version, 120LPW Proline Version for option, CRI>83Ra, more

sufficient,BOKE flicker free driver,1-10V, DALI, Emergency available;

TUV/GS,CE,RoHS,LM79,LM80 listed,5 years warranty;

APPLICATION

Replacement for fluorescent gird;

Offices / Schools;

Hospitals / Retails;

Corridors / Stairwells;
