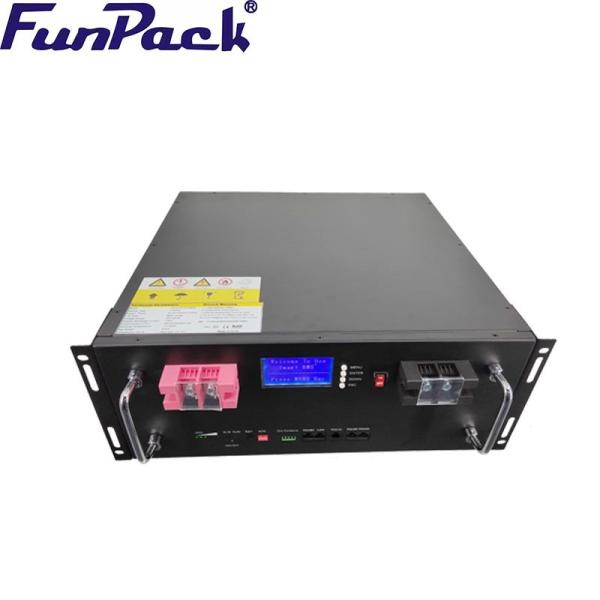

5120wh Rack LiFePO4 Energy Storage Battery 51.2V 100ah Lifepo4 Battery Rack

Product Description:

51.2V 100Ah Lifepo4 Battery Pack For Energy Storage Equipment 3000Cycles Life

Product Basic Information Of 51.2V 100ah Rack LiFePO3 Engry Storage Battery:

​

Battery parameter			Remark
1	Rated voltage	51.2V	/
2	Rated capacity	100Ah	/
3	Battery pack voltage range	58.4~40V	/
4	Total Power(kWh)	5120Wh	/
5	Combination	1P16S	/
6	Insulation resistance test value(Ω)	≤30mΩ	/
7	Operating temperature	Charging 0 ~ 45ºC;	/
		Discharging -10 ~ 50ºC
8	Standard charging current	0.5C	/
9	Quick charging current	1.0C	/
10	Standard discharge current	1.0C	/
11	Maximum continuous discharge current	2.0C	10S
12	Gross weight	>=55KG	/
13	Ambient relative humidity	25-85%RH	/
14	Battery size	750*400*155mm(±2mm)	/
15	Open circuit voltage	Open circuit voltage measured within 24 hours after standard charge	≥51V
16	Capacity retention	Fully charging, store them at (20±5)ºC for 28 days, then discharge to 40V @0.2C.	≥300min
			Discharging time≥300min

​​

No.	Description	Remark
1	Anderson terminal	Positive port/Negative port
2	Anderson terminal	Positive port/Negative port
3	Main switch	ON/OFF
4	/	/
5	Reset button	RST
6	RS485/CAN	RS485/CAN
7	/	/
8	ADS	Address code switch
9	LED	RUN
10	LED	ALM
11	LED	CAPACITY
12	Handle	Handle
13	Hanger	Bracket Pendant

​

Main Applications of 51.2V 100ah Rack LiFePO3 Engry Storage Battery:

This product is mainly used for home energy storage system. Schools, restaurants, pizzerias, small factories, etc. can also be used.

​
