AC355/AC400 Tooth Pocket Grinding Machine with Loader

Product Description

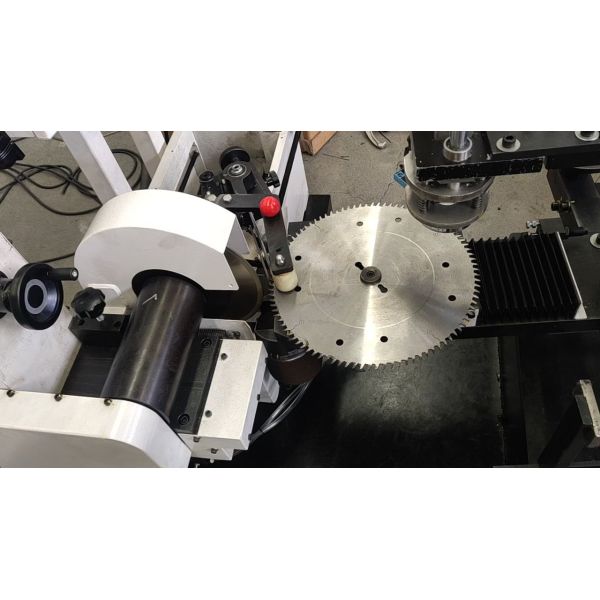

AC355/AC400 Tooth Pocket Grinding Machine for TCT TIPS seat sharpening.


• Saw blade Diameter: < 405mm
• Function: tooth pocket sharpening
• Precision: <0.03mm
• Pitch:2~70mm
• Cooperation Company

Advantages of sawblade grinding machine

• More precision- grinding precision: <0.03mm,be impressed by the higher accuracy.

• Save labor cost- loader picking & placing saws instead of labor,save labor cost;

• 7*24 hours working- loader picking & placing saws,grinding are finished in one cycle set automatically;
• Higher efficiency & higher productivity
• More flexibility- for precision in any requirement;
• More Function- grinding TOOTH POCKET of sawblade




Technical Premeter

Model	AC355	AC400
Saw blade Diameter	105~355mm	105~405mm
Saw blade Thickness	1~5mm	1~5mm
Hook angle	-5°~ 30°	-5°~ 30°
Bevel angle	0°	0°
Bore diameter	12~120mm	12~120mm
Tooth pitch	2-70mm	2-70mm
Tip length	2-12mm	2-12mm
Wheel diameter	Φ255~Φ25.4X1~6mm	Φ255~Φ25.4X1~6mm
Wheel speed	3500~5500RPM	3500~5500RPM
Working efficiency	1.5~4S/Tip	1.5~4S/Tip
Machining accuracy	<0.03mm	<0.03mm
Power	1.5kw	1.5kw
Machine dimensions	1200L*700W*1200H;	1200L*700W*1200H;
Weight	520kg	570kg

Configuration

Ball Screw	IF(Germany)
Roller Guide	HIWIN(Taiwan)
Pneumatic Parts	SMC(Japan)
Servo Motor	Inovance
PLC	Inovance ARM600
Harmonic Drive	Inovance

FAQ

1. How to chooce best saw blade grinding machine?
- Best grinding machine process tools with higher precision & long service life.

2. How is the performance of TORSEL saw blade grinding machine?
- TORSEL saw blade grinding machine process tool with excellent precision <0.015mm,the service life is upto 7-15 years.

3. Whats your cooperation companys?

Hebei Tuosi Machinery Equipment Co., Ltd., situated in Tangshan, Hebei Province, China, is a leading company with a strong focus on research, development, production, sales, and after-sales services of alloy circular saw blades, band saws, and high-speed metal circular saw machines. Founded in 2005, the company boasts a wealth of technical personnel and a significant presence in the market with over 5000 units of equipment globally. Its products have reached more than a dozen countries and regions, including Japan, Korea, Thailand, Canada, the United States, Singapore, India, Russia, Poland, Turkey, the Philippines, Brazil, and Argentina.

Tuosi's vision is to promote the development of the saw blade/saw bar grinding machine and metal circular saw industry, create social benefits, generate value for customers, maintain steady profit growth, and work towards becoming a publicly-listed company. They pride themselves on their integrity, collaboration, and commitment to producing high-quality machine tools.
