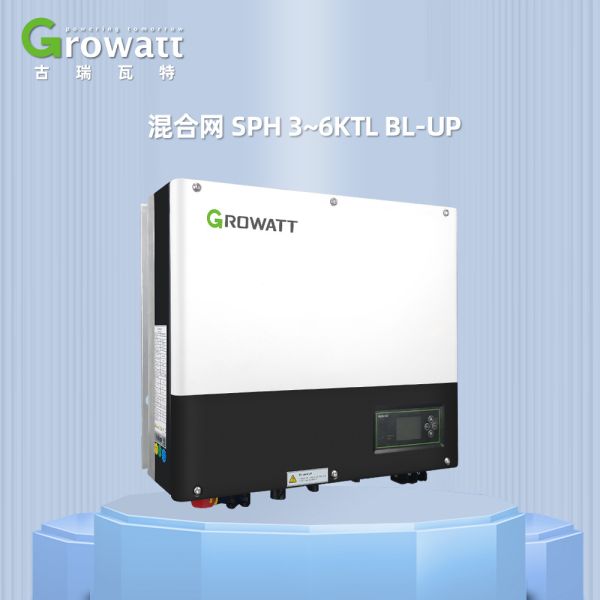

Name: Growatt 5Kw Off Grid Hybrid Inverter Solar Power I Hybrid Solar Inverter Personalized Golden Supplier Solar Inverter
Brand: Growatt
Price: 975.00 USD

Home > Card Readers >

Growatt 5Kw Off Grid Hybrid Inverter Solar Power I Hybrid Solar Inverter Personalized Golden Supplier Solar Inverter

Categories	solar Inverter
Place of Origin:	Guangdong, China
Brand Name:	Growatt
Model Number:	SPH5000-10000 TL3 BH-UP
Input Voltage:	160-1100v
Output Voltage:	220V/380V, 230V/400V (340-440V)
Output Current:	16.7A
Output Frequency:	50/60(HZ)
Output Type:	Single, Triple
Size:	590470210mm
Type:	DC/AC Inverters
Inverter Efficiency:	98%
Certificate:	CE/ISO9001
Warranty:	1year
Weight:	30kg
Product name:	10kw Hybrid Solar Inverter
Application:	Home Appliance
Inverter type:	On-grid Solar Power Inverter
Battery type:	Lead Acid \ Lithium \ Gel
Protection:	Overload
Keyword:	Inverter Solar
Color:	Customized Color
OEM:	Accepted
Display:	LCD Display
Controller type:	MPPT Solar Controller
Packaging Details:	We will according your product select the most suitable packaging according to the quantity.
Port:	Yiwu
Supply Ability:	1000 Box/Boxes per Week
Price:	$975.00/boxes 1-299 boxes

Contact Now

Add to Cart

Product Details
Company Profile

Growatt 5Kw Off Grid Hybrid Inverter Solar Power I Hybrid Solar Inverter Personalized Golden Supplier Solar Inverter

Products Description

Datasheet

SPH4000TL3 BH

SPH5000TL3 BH

SPH6000TL3 BH

SPH7000TL3 BH

SPH8000TL3 BH

SPH10000TL3 BH

Input data(PV)

Max. recommended PV power (for module STC)

5200W

6500W

7800W

9100W

10400W

13000W

Max. DC voltage

1000V

Start voltage

160V

MPP voltage range

160V-1000V / 600V

No. of MPP trackers/strings per Mpp tracker

2/1

Max. input current per MPP tracker

12A/12A

Max. short-circuit current per MPP trackers

15A/15A

Output data(AC)

AC nominal power

4000W

5000W

6000W

7000W

8000W

10000W

Max. AC apparent power

4000VA

5000VA

6000VA

7000VA

8000VA

10000VA

Nominal AC voltage (range*)

230V/400V; 310~476V

AC grid frequency (range*)

50/60Hz; 45~55Hz/55~65 Hz

Max. output current

6.1A

7.6A

9.1A

10.6A

12.1A

15.2A

Adjustable power factor

0.8leading.. .0.8lagging

TH Di

<3%

AC grid connection type

3W+N+PE

Stand alone(AC power)

Max. AC output power

4000W

5000W

6000W

7000W

8000W

10000W

Max. AC apparent power

4000VA

5000VA

6000VA

7000VA

8000VA

10000VA

Max. output current

6.1A

7.6A

9.1A

10.6A

12.1A

15.2A

Nominal AC output voltage

230V/400V

Nominal AC output frequency

50/60Hz

THDv

<3%

Switch time

<0.5s

Battery data (DC)

Battery voltage range

100~550V

Max charging and discharging current

25A

Continuous charging and discharging power

4000W

5000W

6000W

7000W

8000W

10000W

Type of battery

Lithium /Lead-acid

Capacity of battery

5~50kWh

Efficiency

MAX. efficiency

97.6%

97.8%

98.0%

98.2%

European efficiency

97.0%

97.2%

97.3%

97.4%

97.4%%

97.5%

Battery charge/discharge efficiency

97.4%

Protection devices

DC switch

yes

DC reverse polarity protection

yes

DC surge protection

Type II

Battery reverse protection

yes

AC short-circuit protection

yes

AC Surge protection

Type II

Ground fault monitoring

yes

Grid monitoring

yes

Anti-islanding protection

yes

Residual-current monitoring unit

yes

Insulation resistance monitoring

yes

General data

Dimensions (W / H / D)

505/453/198mm

Weight

28kg

Operating temperature range

-25°C... +60°C

Noise emission (typical)

≤ 35 dB(A)

Self-consumption night

< 13 W

Topology

transformerless

Cooling

Natural

Protection degree

IP65

Altitude

3000m

Features

DC connection

Universal PV Connector

AC connection

Cable gland+OT terminal

Display

LCD+LED

RS232/RS485/CAN/USB

yes

RF/WIFI/GPRS/4G

opt

Warranty: 5 years /10 years

yes / opt

Working Modes Applications

Product Details

Company Profile

1,Q:Why your quotation is higher than other suppliers? A:In domestic market, the high and low inverter brands are mixed together. There are many low-cost inverter is actually some assembled small unlicensed workshops, it crudely, to reduce costs and use of substandard components for assembly, there is a very big security risk! In order to protect the pro personal and property safety, please do not covet low price, be sure to choose a reliable inverter! .............................................................................................................................................................. 2,Q:How many categories does it have according to the output waveform ? A:Type one: Modified Sine Wave inverter, which uses PWM pulse width modulation to generate modified sine wave. Due to the usage of intelligent dedicated circuit and high power field effect tube, it greatly reduces the power loss and increases the soft-start function, effectively ensuring the reliability of the inverter. If the power quality is not highly demanded, it is able to meet the needs of most electrical equipment. But it still exists 20% harmonic distortion problems when running sophisticated equipment, can also cause high-frequency interference to radio communications equipment. This kind of inverter can meet the basic needs of most of our power, high efficiency, small noise, moderate price, and thus become the mainstream products in the market. Type two: Pure Sine Wave inverter, which adopts isolated coupling circuit design, high efficiency, high stability of the output waveform, high-frequency technology, small in size, suitable for all kinds of load, can be connected to any common electrical devices and inductive load devices (such as refrigerators, electric drill, etc.) without any interference (eg: buzz andTV noise). The output of pure sine wave inverter is the same as the grid tie power we daily used, or even better, because it does not exist grid tie electromagnetic pollution. .............................................................................................................................................................. 3,Q:Is the output voltage of our inverter stable ? A:Absolutely. Our inverter is designed with a good regulator circuit. You can even check it when measuring the true value by a multimeter. Actually the output voltage is quite stable. Here we need make a especial explanation : many customers found it is unstable when using conventional multimeter to measure voltage. We can say the operation is incorrect. Ordinary multimeter can only test pure sine waveform and calculate datas. .............................................................................................................................................................. 4,Q:What is a resistive load appliances? A:Generally speaking, appliances like mobile phones, computers, LCD TVs, incandescents, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers etc. All belong to resistive loads. Our modified sine wave inverters can drive them successfully. .............................................................................................................................................................. 5,Q:What is the inductive load appliances? A:It refers to the application of electromagnetic induction’s principle, produced by high-power electrical products, such as motor type, compressors, relays, fluorescent lamps, electric stove, refrigerator, air conditioner, energy saving lamps, pumps, etc. These products’power are far more than the rated power (about 3-7 times) when start. So only pure sine wave inverter is available to them. .............................................................................................................................................................. 6,Q:What should be noticed when installing inverter? A:Put the product in a place where is well ventilate,cool, dry and water-proof. Pls do not stress and do not put foreign objects into the inverter.Rember to turn on the inverter before turn on the appliance.
