Solar Home Li-Ion Battery Energy Storage System - Wall-Mounted Type (5kWh/10kWh)

Categories Residential Energy Storage
Place of Origin: China
Brand Name: RPT
Price: Negotiable
Packaging Details: Customizable Packaging Solutions Tailored to Customer Needs
Delivery Time: 15 - 30 Days
Payment Terms: L/C,T/T,etc.
Model Number: RPES-WM2
Certification: TUV-CB,FCC,IEC62619,CE,RoHS,UN38.3
  • Product Details
  • Company Profile

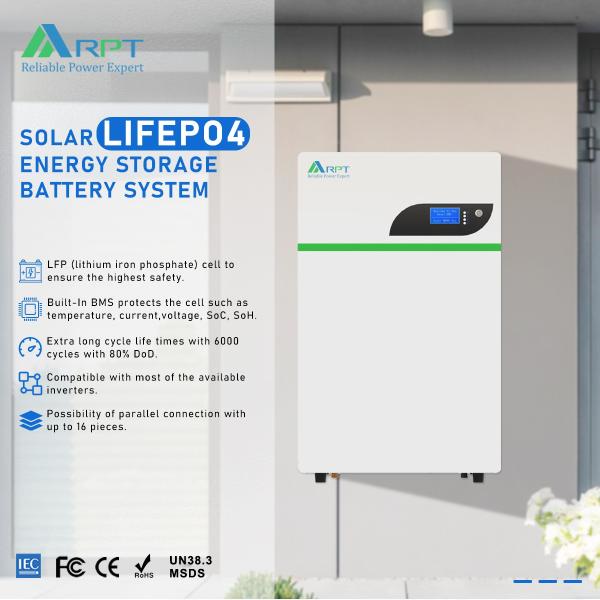

Solar Home Li-Ion Battery Energy Storage System - Wall-Mounted Type (5kWh/10kWh)

RPT's residential energy storage systems are engineered with a paramount focus on safety and reliability. Utilizing lithium iron phosphate batteries and cutting-edge battery management systems (BMS), our solutions offer a secure repository for surplus solar energy harvested from rooftop photovoltaic panels. By capturing electricity at lower price points during the day, our systems empower you to seamlessly power your household appliances during the night, effectively trimming down your electricity bill and lessening your reliance on the grid. Experiencing the freedom to harness solar energy intelligently while safeguarding your home and budget with PRT's residential energy storage systems.

Product Features:

1. Space-Efficient Design: Wall-mounted configuration saves floor space, making it suitable for installations where space is limited.
2. High Energy Density: Utilizes lithium-ion battery technology to provide high energy density, maximizing storage capacity in a compact form factor.
3. Modular Capacity Options: Available in 5kWh and 10kWh capacities to meet varying energy storage requirements.
4. Seamless Integration: Compatible with most solar energy systems, allowing for easy integration into existing setups for enhanced energy management.
5. Reliable Backup Power: Provides backup power during grid outages, ensuring uninterrupted operation of essential appliances and devices.
6. User-Friendly Interface: Intuitive interface allows for easy monitoring of battery status, charge level, and system performance.
7. Integrated Battery Management System (BMS): Built-in BMS ensures safe and efficient operation by monitoring battery parameters and protecting against overcharging, over-discharging, and other potential risks.
8. Smart Connectivity: Optional smart features enable remote monitoring and control via mobile app or web interface, enhancing convenience and accessibility.
9. Long Cycle Life: Designed for durability and longevity, offering a high number of charge and discharge cycles for extended service life.
10. Energy Efficiency: Maximizes energy utilization and minimizes waste through efficient charge and discharge processes, helping to reduce overall energy costs.



Parameter

Lithium iron phosphate battery module 51.2V 50Ah-200Ah with wall mounted design

Items

LFP 51.2V100Ah

LFP 51.2V200Ah

Nominal Voltage

51.2V

51.2V

Nominal Capacity

100Ah

200Ah

Stored Energy

5120Wh

10240Wh

Dimension(L*W*H)

550*500*217

780*495*217

Weight(approx.)

50kg

95kg

Certification

TUV-CB,FCC,IEC62619,CE,RoHS,UN38.3

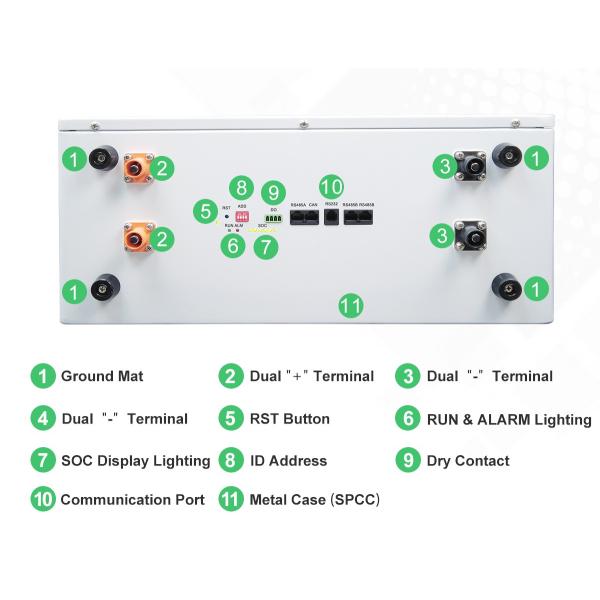

Product Functions

The product functions are shonw as below

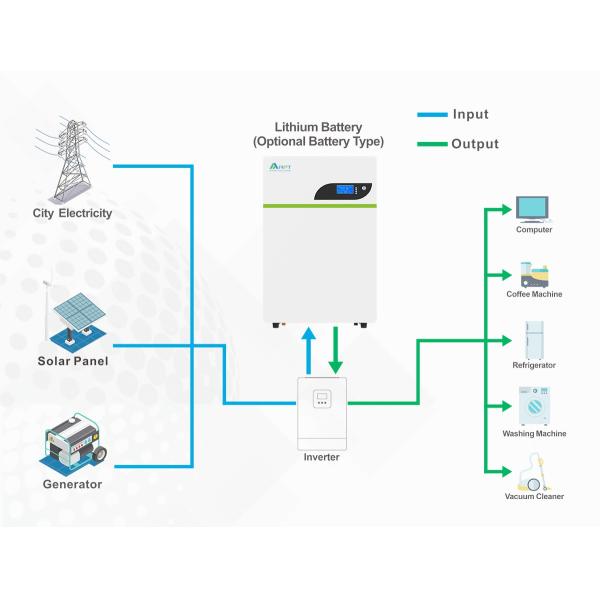

BESS Operation Block Diagram

BESS (Battery Eenergy Storage System) operation block diagram is shown as below

Matached Inverter Brand
