Name: Same Port Battery Management System For Electric Vehicle 7S32S 15A 20A 25A
Brand: XUWEN
Price: 1 USD

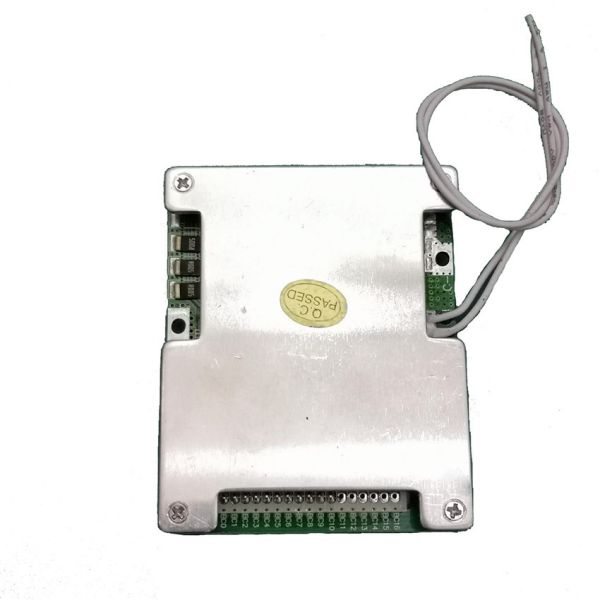

Same Port Battery Management System For Electric Vehicle 7S-32S 15A 20A 25A

Contact Now

Add to Cart

15A 20A 25A 30A 40A 7S~32S Lithium BMS System Same Port Separate Port With Balance With On Off Switch

10S 36V	Detail	Spec				Unit
Discharge	Maximal Continuous Discharging Current	15	20	25	30	A
	Peak Discharging Current (1S)	30	40	50	60	A
	Over Current Protection Current	3-5 times of continuous discharge current				A
Charge	Charging Voltage	42				V
	Charging Current	10	15	20	25	A
Over charge protection	Over Charge Detection Voltage	4.25±0.03				V
	Over Charge Detection Delay Time	1000				mS
	Over Charger Release Voltage	4.19±0.05				V
Cell balancing	Cell balancing Detection Voltage	more than 4.18				V
	Cell balancing Release Voltage	less than 4.18				V
	Cell balancing Current	20-30				mA
Over discharge protection	Over Discharge Detection Voltage	2.8±0.1				V
	Over Discharge Detection Delay Time	100				mS
	Over Discharger Release Voltage	2.9±0.1				V
Over current protection	Over Current Detection Voltage	150				mV
	Over Current Detection Delay Time	100				mS
	Over Current Protection Condition	Disconnect the load Reactive when charge
Short Protection	Detection Condition	Exterior Short Curcuit
	Detection Delay Time	200				uS
	Release Condition	Disconnect the load Reactive when charge
Temperature Protection	N/A					℃
Internal Resistance	MOSFET	<20				mΩ
Self-consuming	Working current	<40				uA
	Sleeping current	<30				uA
