| Categories | Thermal Gap Pad |
|---|---|
| Brand Name: | ZIITEK |
| Model Number: | TIF120-30-02US |
| Certification: | UL and RoHs |
| Place of Origin: | China |
| MOQ: | 1000pcs |
| Price: | negotiation |
| Supply Ability: | 100000pcs/day |
| Delivery Time: | 3-5 work days |
| Packaging Details: | 1000pcs/bag |
| Specific gravity: | 2.9 g/cc |
| hermal conductive: | 3.0W/mk |
| Thickness: | 0.5mmT |
| keyword: | thermal gap pad |
| name: | 3.0W/mk Light Gray Outstanding Thermal Performance Thermal Pad for Telecommunication Hardware |
| Hardness: | 20 Shore 00 |

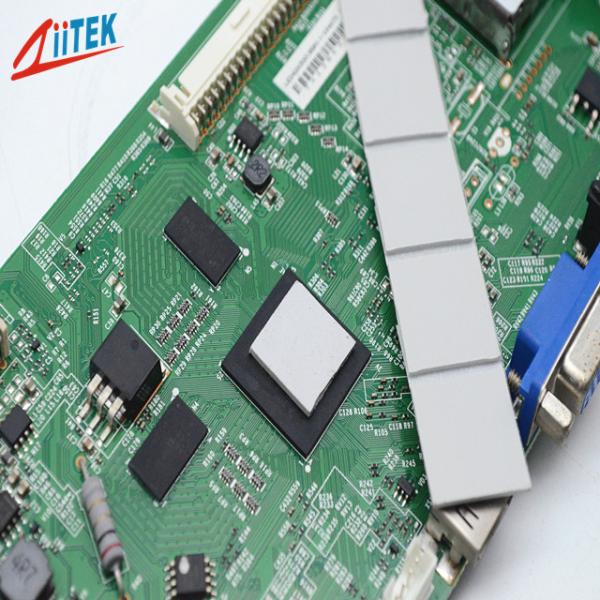

3.0W/mk Light Gray Outstanding Thermal Performance Thermal Pad for Telecommunication Hardware
The TIF120-30-02US thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
TIF100-30-02US-Datasheet-REV02.pdf
Features
> Good thermal conductive: 3.0 W/mK
>Thickness:0.5mmT
>hardness:20 shore 00
>Colour: gray
>RoHS compliant
>UL recognized
>Fiberglass reinforced for puncture, shear and tear resistance
Applications
>Automotive engine control units
>Telecommunication hardware
>Handheld portable electronics
>Semiconductor automated test equipment (ATE)
>CPU
>display card
Typical Properties of TIF120-30-02US Series | ||||
Color | Gray | Visual | Composite Thickness | Thermal Impedance@10psi (℃-in²/W) |
Construction & Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.16 |
20mils / 0.508 mm | 0.20 | |||
Specific gravity | 2.9 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.31 |
40mils / 1.016 mm | 0.36 | |||
| Thickness | 0.5mmT | *** | 50mils / 1.270 mm | 0.42 |
60mils / 1.524 mm | 0.48 | |||
Hardness | 20 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
80mils / 2.032 mm | 0.63 | |||
| Outgasing (TML) | 0.35% | ASTM E595 | 90mils / 2.286 mm | 0.73 |
100mils / 2.540 mm | 0.81 | |||
Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
120mils / 3.048 mm | 0.93 | |||
Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.00 |
140mils /3.556 mm | 1.08 | |||
Dielectric Constant | 3.8 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
160mils / 4.064 mm | 1.20 | |||
Volume Resistivity | 1.0X1012 Ohm-cm | ASTM D257 | 170mils / 4.318 mm | 1.24 |
180mils / 4.572 mm | 1.32 | |||
Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 1.41 |
200mils / 5.080 mm | 1.52 | |||
Thermal conductivity | 3.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
FAQ:
Q: Do you offer free samples ?
A: Yes, we are willing to offer free sample.
Q: What is your terms of payment ?
A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
|
