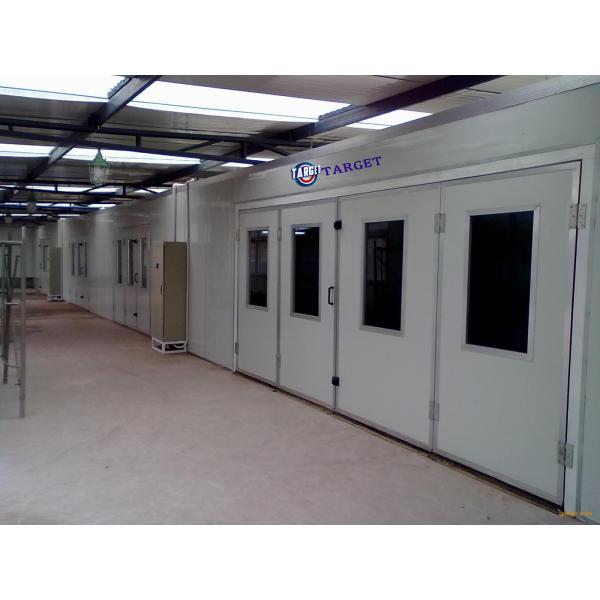

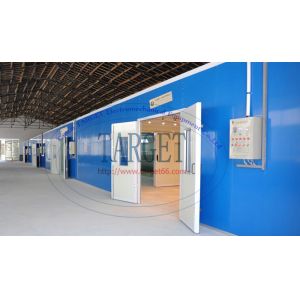

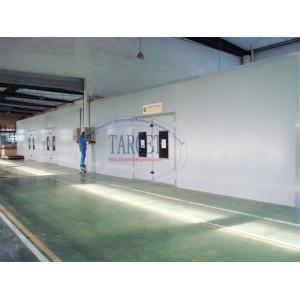

| Categories | Furniture industrial spray booth |
|---|---|
| Brand Name: | TARGET |
| Model Number: | TG-100B |
| Certification: | CE,ISO |
| Place of Origin: | China |
| MOQ: | 1set |
| Price: | $30000---60000 |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1000set/month |
| Delivery Time: | 15 days after confirm order |
| Packaging Details: | Standard export package |
| Material: | EPS panel with 0.5mm steel plate |
Specification:
| Furtinure Spray-Baking booth TG-100B | |
| Outside Dimension (L×W×H) | 20000×5000×3000mm |
| Painting Room Dimension (L×W) | 4900×4900mm |
| Drying Room Dimension (L×W) | 14950×4900mm |
| Incoming Door Dimension (W×H) | 1900×2000mm |
| Delivery Door Dimension (W×H) | 1900×2000mm |
| Air Capacity | 18000 M³/h |
| Air Speed | 0.25-0.3 m/s |
| Ventilation Rate | 255 Times/Hour |
| Wall Panels | 50mm thick EPS heat preservation wall panels |
| Grilles | 40mm×3mm flat iron,10#channel steel |
| Lighting | spray booth:18units×36w baking booth:12units×36w Illuminance exceeding 450LUX, non explosive |
| Infrared Heating Tubes | 30units×1kw carbon fiber far-infrared heating tubes, non explosive |
| Generator Setting Type | upper intake air |
| Intake Air Fan | 2×4KW double-intake centrifugal fans, air capacity:18000m³/h, |
| Water Curtains | dimension:3000×400×1500mm(L×W×H),stainless steel. |
| Water Pump | brand:Lailibao, capacity:7m³/h, lift:18m, rotate speed:2860rotate/m power:750W 380V/50HZ |
| Filter System | pre-filter, high efficiency filter(ceiling filter) |
| Total Power(KW) | 39Kw |
|
