| Categories | Gas Charged Lift Supports |
|---|---|
| Brand Name: | CSZIY |
| Model Number: | 4643 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA (Mainland) |
| MOQ: | Negotiable |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, , MoneyGram,Paypal |
| Supply Ability: | 5000 PCS PER DAY |
| Delivery Time: | 4-7 working days |
| Packaging Details: | 1PCS IN PE BAG, 50PCS IN CARTON |
| special features: | Rear trunk Lift Supports |
| year: | 1994-2004 |
| position: | Rear trunk |
| length: | 19.1" |
| material: | steel |
| car model: | Mustang |
| PART Number: | SG304019 |
| tube diameter: | 18mm |
| rod diameter: | 8mm |

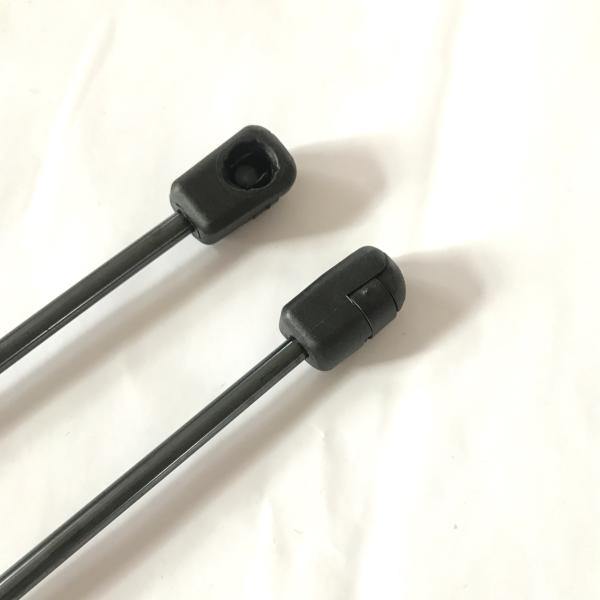

| end fittings: | plastic ball joint |
| compression length: | 11.55" |
| tube finish: | painted |
| rod finish: | chromate or QPQ |
Part Number :
010504, 1677XY, 3264LY, 4643, 8195647, SG304019 |
Extended length: 19.1"
compression length:11.55"
Fits to:

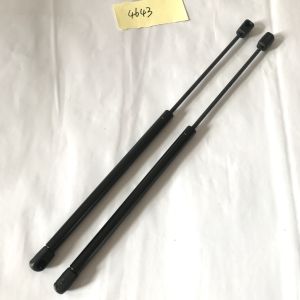

1994-2004 Ford Mustang Base Convertible 2-Door Trunk
More information, please contact us before order .
Package include:
2x trunk lift support
Feature:
Exact fit original equipment design guarantees correct fit and
function
Easy to install with simple hand tools in just minutes
Engineered and built to meet or exceed OE. quality standards
Hardened, Chrome Plated Steel Piston Rod; Rubber O-ring piston seal
for controlled lift
Heavy gauge steel pressure tube provides long life; Teflon backup
ring gives enhanced performance
Patented multi lobe seal offers leak free operation and long life
Self clean piston assembly delivers smooth operation and consistent
performance
Package include:
2xRear tailgate lift support
Warranty:
With one year guarantee except man-made troubles.
| Main Specifications and Dimensions | ||||
| Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
| 100-300 | 30-100 | 4*12 | 20-200 | 30 |
| 301-600 | 101-200 | 6*15 | 50-200 | 50 |
| 601-900 | 201-300 | 8*18 | 100-800 | 60 |
| 901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
| 1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
| 500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
| 500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Delivery Terms:
FOB & CIF&CFR
Delivery lead time:
7 working day as normal
Shipment:
Goods can be loaded in FCL at our factory or delivered to warehouse
in LCL as request.
We can accept your appionted forwarder
|
