| Categories | Curved LED Screen |
|---|---|
| Brand Name: | TBC |
| Model Number: | Ei2.5 |
| Certification: | CE-EMC, CE-LVD, RoHS, ETL, FCC |
| Place of Origin: | China |
| MOQ: | 10sqm |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 10,000sqm/month |
| Delivery Time: | 15-25days |
| Packaging Details: | Wooden box |
| Pixel: | 2.5mm |
| Color: | Full color |
| LEDs: | SMD 3in1 |
| Scan: | 1/32 Scan |
| Maintenance: | Magnetic Front Service |
| Usage: | Indoor |

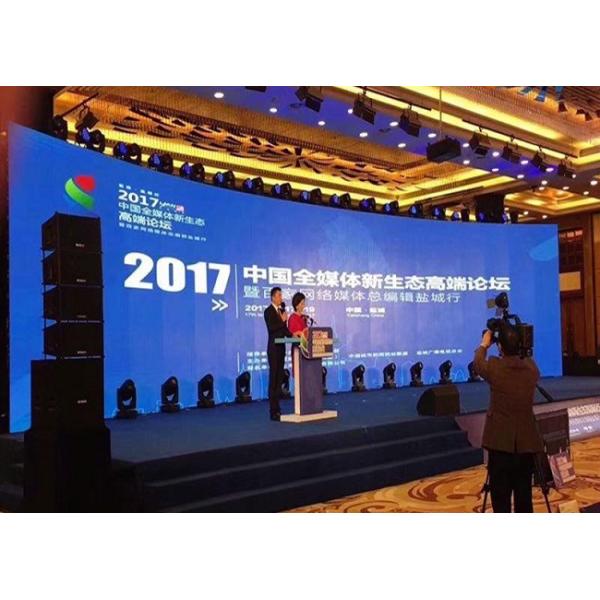

HD Curved LED Screen Indoor P2.5 Commercial High Refresh Rate Full Color Display
Quick Details:
1, Pixel Pitch: 2.5mm.
2, SMD LEDs, Wide viewing angle: 160°/ 160°.
3, RGB full color: 281trillions.
4, Digital process: 16bits.
5, Recommended minimum viewing distance: 3m.
Description:
TBC curved led screens include outdoor/indoor stage rental/fixed installation led screens: pixels include 1.25mm, 1.33mm, 1.45mm, 1.55mm, 1.667mm, 1.875mm, 2mm, 2.5mm, 2.6mm, 2.976mm, 3mm, 3.2mm, 3.75mm, 3.91mm, 4mm, 4.81mm, 5mm, 5.9mm, 6mm, 8mm, 10mm, 12mm, 16mm.
Features and Advantages:
1, Thin, lightweight, easy install.
2, Magnetic module design, front service.
3, High contrast ratio up to 4,000:1, vivid color.
4, Low brightness with high gray scale.
5, Air fan free, zero noise.
Parameters:
| Parameter | Unit | Value | ||
| Brightness | nits | 900 | ||
| Color temperature | deg.k | 3200 ~ 9300 | ||
| Viewing angle - Horizontal | deg. | 140(+70/-70) | ||
| Viewing angle - Vertical | deg. | 140(+70/-70) | ||
| Cabinet weight | kg | 8 | ||
| Cabinet width | mm | 480 | ||
| Cabinet height | mm | 480 | ||
| Cabinet depth | mm | 80 | ||
| Cabinet area | sq. m. | 0.23 | ||
| Cabinet material | Aluminum | |||
| Aspect ratio | 1:1 | |||
| Ingress protection (Front/Rear) | IP | IP40/IP20 | ||
| Operating temperature range | deg. C | 0 to 40 | ||
| Operating humidity range | HR | 10% to 90% | ||
| Pixel type and configuration | R/G/B | SMD 3in1 | ||
| Pixel pitch | mm | 2.5 | ||
| Pixel matrix per cabinet | 192x192 | |||
| Pixels per cabinet | 36864 | |||
| Lines per meter | 400 | |||
| Pixels per sq. meter | 160000 | |||
| LEDs per sq. meter | 160000 | |||
| Recommended minimum viewing distance | m | 3 | ||
| Colours | 281trillion | |||
| Gray scale | Levels | 65536 levels per colour | ||
| Brightness control | Levels | 100 | ||
| Digital processing | bit | 16 | ||
| Frame rate | Hertz | 60 | ||
| Display refresh rate | Hertz | 1920 | ||
| Input voltage | VAC | 110/240 | ||
| Input power frequency | Hertz | 50/60 | ||
| Input power (max/avg) | Watts per sq.m | 680/230 | ||
| MTBF | Hours | ≥10000 | ||
| Lifetime (50%Brightness) | Hours | ≥100000 | ||
| Module brightness uniformity | <5% | |||
| Blind spot rate | <0.0001 | |||
| Earth leakage current | mA | <2 | ||
| Red wavelength | nm | 623 | ||
| Green wavelength | nm | 525 | ||
| Blue wavelength | nm | 470 | ||
| Panel input format (with video processor) | VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV | |||
| Data interconnection | CAT6 cable/Fiber | |||
| Operating system | Windows(XP/Vista/7/8/10) | |||
| Control distance | Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers. | |||

|
