Industrial 16 Cbm Combination Jetting Vacuum Truck / Sewer Cleaning Vehicles

This Combination Vacuum Jetter Truck, Also Known As Combination Vacuum Jetting Truck Or Sewer Vacuum Truck, Is a Kind Of Vehicle Specially Used To Suck, Transport, And Transfer Sludge And Sewage In Sewer Lines, Rainwater Wells, And Sedimentary Wells. It Can Help To Reduce The Labor Intensity Of Work In Sewer As Well As To Keep Poisonous Gases Away From Workers.

This Sewer Vacuum Truck Mainly Consists Of Chassis, Tank, Vacuum System, High Pressure System, Driving System, Water Recycling System, Hydraulic System, And Electrical System.
It Should Adopt Roro.
We Can Provide Triaxial And Biaxial Combination Vacuum Jetter Trucks For You To Choose.

Truck description

A jetting and suction vehicle is a truck combining the functions of high pressure washing truck and sewage suction truck, designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm and cleaning the pipe or pit, etc. by using pressure washer.

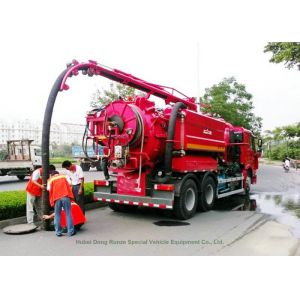

Vac Tanker Photo show:

Warranty period and after sale service

1: Sewage Tank: It Is Made Of 8 Mm Boiler Steel Plate. It Is Cylindrical. Back Cover Can Open And Close Automatically. It Is Equipped With a High Level Alarm Protection Device. Its Total Volume Is 5.5m3, And Its Effective Volume Is 4.5m3.

2: Clean Water Tank: It Is Composed Of Three Full Stainless Steel Water Tanks That Pipelines Are Connected Thoroughly. It Is Set Internally With Anti-Wave Boards And Equipped With a Low Level Alarm Protection Device. Its Total Capacity Is 4.5 m3.

3: Sewage Suction Tube: Pvc Steel Wire Reinforced Hose Or Steel Wire Braided Hose With Rotating Boom Can Be Rotated Horizontally To 230°. Its Vertical Amplitude Is -27°~+53°. Its Telescopic Length May Be Up To 1.3 m. Three 1.8 m Extension Pipes Can Be Connected With Sewage Suction Tubes.

4: Pipe Reel: Hydraulically Driven Pipe Reel With Forward And Reversal Rotations As Well As Step-Less Speed Regulating. It Is Installed On The Rear Cover Of Sewage Tank. The Length Of Dedicated Hose For Winding And Storing Dn25 Shall Not Be Less Than 100 m.

5: Dedicated Hose: Dedicated Sewer Dredging And Cleaning Hose Of Originally Imported Nd25 Can Resistant High Pressure With Light Weight, Small Frictional Resistance, And Strong Scratch Resistance. 11: The Length Of Tube With Standard Configuration Shall Be 80m.

6: Clean Water Pipe Reel: Pull Out The Water Pipe Manually, And Retract It Automatically. It Is Equipped With Originally Imported Hand-Held Spray Gun For Cleaning The Vehicle And Operating Sites. The Length Of Hose Is 20 m Equipped On 8000L Combined Suction And Jetting Trucks.

7: Nozzle: Originally Imported 1” Nozzle. It Shall Have 3 Nozzles In Standard Configuration.

14: Rhombus Nozzle: It May Jet Forward And Backward At The Same Time. It Is Suitable For Any Completely Blocked Pipe.

8: Mushroom-Shaped Nozzle: The Nozzle May Be Arranged With Two Kinds Of Angle. It Can Generate a Greater Thrust Force For Any Pipe With Grease.

9: Bomb-Shaped Nozzle: There Is An Angle Of 15° Or 30° Between Nozzle And Nozzle Axis. It May Be Used Under Normal Circumstances.

10: Operating Control Device: The Forward, Backward And Speed Adjustment Of Nozzle And Hose May Be Controlled Manually. All Other Controls Can Be Controlled Electronically. Besides Of Electronic Control, All Including Sewage Suction Tube Rotating Boom Rotation, Variable Amplitude, Telescopic As Well As Opening And Closing The Back Cover Of Sewage Tank On China Sinotruk Howo Combined Vehicles And Tipping Reset Shall Also Be Equipped With a Wireless Remote Control.
