| Categories | Cross Bits |
|---|---|
| Brand Name: | MIROC |
| Model Number: | H25 Threaded Cross Bit |
| Certification: | ISO 9001 |
| Place of Origin: | China |
| MOQ: | 50 |
| Price: | negotiation |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 30000Pieces/Month |
| Delivery Time: | 25 Days |
| Packaging Details: | Carton Box and Wooden Box |
| Name: | H25 Cross type Bits |
| Color: | Blue,Green or Based on Demand |
| Applications: | Mining and Quarring |
| Design: | precise design suit particular needs |
| Qaulity: | stable and reliable |
| Market: | domestic and overseas |
Product Specification
| Product | H25 Cross type bit |
| Diameter | 41mm |
| Alloy | 12x8mm |
| Flushing hole No. | Front 1, Side 4 |
| Weight | 0.3KG |
| Color | Green (customized according to customer needs) |
Miroc H25 Cross type bit with steel inserts using thread system. It has
a slow penetration rate but it produces a very straight drill hole.
• Steel inserts
• Widely used in dimensional stone industry, drifting and tunneling
The Feature of H25 Cross Bit
1.The H25 threaded cross bit & Button Bit connect with H25 threaded drill rod perfectly for drilling holes
2.Stale and mature welding technology ensure high quality of bits
3.work reliable and very cost-effective
4.High grade tungsten carbide inserts
5 Bit bodies manufactured from high grade steel and processed using
state-of-the-art CNC machinery and heat treatment
Product technical reference
Product | Part No. | Diameter | Flushing Hole | Weight(kg) | ||
mm | inch | Front | Side | |||
Threaded Steel Cross Type Bit | H25 | 45 | 2 1/4 | 1 | 4 | 0.30 |
48 | 2 1/2 | 1 | 4 | 0.40 | ||
51 | 2 3/4 | 1 | 4 | 0.42 | ||
57 | 2 1/4 | 1 | 4 | 0.51 | ||
64 | 2 1/2 | 1 | 4 | 0.58 | ||
70 | 2 3/4 | 1 | 4 | 0.63 | ||
76 | 3 | 1 | 4 | 0.69 | ||
83 | 3 1/4 | 1 | 4 | 1.08 | ||
89 | 3 1/2 | 1 | 4 | 1.18 | ||
102 | 4 | 1 | 4 | 1.39 | ||
Product | Part No. | Diameter | Size(mm) | Flushing Hole | Weight(kg) | ||
mm | inch | Front | Front | Side | |||
Threaded Cross Type Bit | H25 | 35 | 1 3/8 | 12*8 | 1 | 4 | 0.22 |
38 | 1 1/2 | 12*8 | 1 | 4 | 0.26 | ||
41 | 1 3/5 | 12*8 | 1 | 4 | 0.30 | ||
45 | 1 7/9 | 14*8 | 1 | 4 | 0.38 | ||
48 | 1 8/9 | 14*8 | 1 | 4 | 0.42 | ||
51 | 2 | 14*8 | 1 | 4 | 0.50 | ||
54 | 2 1/8 | 14*8 | 1 | 4 | 0.50 | ||
57 | 2 1/4 | 16*10 | 1 | 4 | 0.61 | ||
64 | 2 1/2 | 16*10 | 1 | 4 | 0.71 | ||
70 | 2 3/4 | 16*10 | 1 | 4 | 0.88 | ||
76 | 3 | 20*12 | 1 | 4 | 1.25 | ||

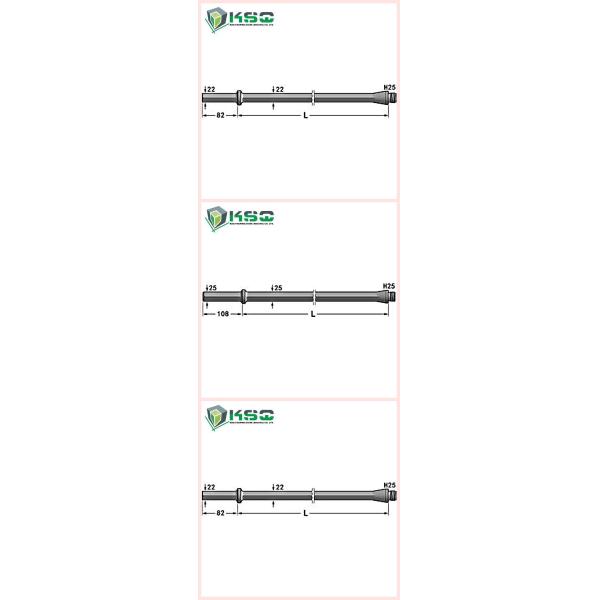

H25 Hex22mm Drill rod
KSQ Related Rock Drilling Tools
(1) Integral Drill Rod– chisel bit integral rod and plug hole integral drill steel,
Shank H19 x 108mm and H22 108mm.
(2) Tapered Rock Drill Tools - chisel bit, cross bit, button bit, drill rod of taper 7, 11, 12
degree
(3) Threaded Rock Drill Tools - button bit, retrac button bit, drop center button bit, dome bit,
reaming bit,extension rod, MF-Rod, Hex rod, coupling sleeve, crossover coupling of thread R25,
R28, R32, R38, T38, T45, T51, ST58, ST68.
(4) Shank Adapters (Striking Bars) - equivalent to Atlas Copco, , Furukawa, Gardner Genver, Ingersoll
Rand etc.
(5) Down-the-hole (DTH) Bits& Hammers - 3'', 4'', 5'', 6'', 8'' hammer and DTH button bit (diameter 80mm
- 305mm)
|
