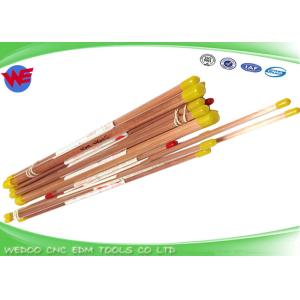

Single Hole Small Copper Tubing EDM Electrode Tube 0.2 X 200 mmL 0.1 x 150mmL

Categories	EDM Brass Tubes
Brand Name:	Ziyang / Others
Model Number:	0.2
Place of Origin:	China
MOQ:	500 pcs
Price:	Negotiation
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000000 pcs per month
Delivery Time:	within 1-5 days after payment
Packaging Details:	Packing in a plastic tube
Name:	EDM Electrode copper tube
Material:	Copper
Size:	0.2mm
Length:	200mm, 150mm
Aplication:	EDM Small Hole Drilling Machines
Packing:	100 pcs in a tube

Contact Now

Add to Cart

Product Details
Company Profile

Single Hole Small Copper Tubing EDM Electrode Tube 0.2 X 200 mmL 0.1 x 150mmL

EDM Electrode Copper Tube 0.2x200mm For EDM Drilling Machine

Size: 0.2x200mmL

Material : Copper ( Brass is also available)

Packing 50 or 100 pcs in a tube

Electrode Pipe

Length

Material

Brand

Single hole

0.2mm

200mm

150mm

Copper

Ziyang, 5UM,

Takibishi ,others

Rages of EDM Electrodes.

1. Single hole EDM Brass / copper tube (0.1 to 6.0mm)

2. Multi-hole EDM Brass / copper tube (1.1 to 6.0mm)

3. Double hole EDM Brass / copper tube (0.5 to 1.0mm)

EDM Copper electrode tubes is used for process

Most common size EDM Electrode Brass / Copper Tube ,we have enough quantity in stock ,for special size ( out diameter , length ) as customized items take a little time to produce.

EDM Electrode Tube is applicable to high-speed electric-spark small-hole processing machines, especially for deep and small holes, and high-speed electric-spark processing.

Products show:

Single hole / Double hole / Multi hole EDM Electrode Copper / Brass Tubes

OD (mm)	Single Hole	Double Hole	Mult Hole	OD (mm)	Single Hole	Double Hole	Multi Hole
0.1	v	x	x	2.6	v	x	v
0.15	v	x	x	2.7	v	x	v
0.17	v	x	x	2.8	v	x	v
0.2	v	x	x	2.9	v	x	v
0.25	v	x	x	3	v	x	v
0.3	v	x	x	3.1	v	x	v
0.35	v	x	x	3.2	v	x	v
0.4	v	x	x	3.3	v	x	v
0.45	v	x	x	3.4	v	x	v
0.5	v	v	x	3.5	v	x	v
0.55	v	v	x	3.6	v	x	v
0.6	v	v	x	3.7	v	x	v
0.65	v	v	x	3.8	v	x	v
0.7	v	v	x	3.9	v	x	v
0.75	v	v	x	4	v	x	v
0.8	v	v	x	4.1	v	x	v
0.85	v	v	x	4.2	v	x	v
0.9	v	v	x	4.3	v	x	v
0.95	v	v	x	4.4	v	x	v
1	v	v	v	4.5	v	x	v
1.1	v	x	v	4.6	v	x	v
1.2	v	x	v	4.7	v	x	v
1.3	v	x	v	4.8	v	x	v
1.4	v	x	v	4.9	v	x	v
1.5	v	x	v	5	v	x	v
1.6	v	x	v	5.1	v	x	v
1.7	v	x	v	5.2	v	x	v
1.8	v	x	v	5.3	v	x	v
1.9	v	x	v	5.4	v	x	v
2	v	x	v	5.5	v	x	v
2.1	v	x	v	5.6	v	x	v
2.2	v	x	v	5.7	v	x	v
2.3	v	x	v	5.8	v	x	v
2.4	v	x	v	5.9	v	x	v
2.5	v	x	v	6	v	x	v

Note:"x" is means disable to supply

Our main products:

* EDM Spare parts : Wire Guide ,nozzles, roller ,power feed contact ,belt ,guide base , discharge cable...

* EDM Consumables: JR3A ,Ion exchange resin ,kc-12

* EDM Water Filters

* EDM Drilling Parts : ceramic pipe guide ,ruby pipe guide , rubber seal , drill chuck

* EDM Copper / Brass tube : sighle hole ,double hole , multi hole electrode tube

* EDM Copper tappers

* High speed wire cutting EDM Parts :guide pully , pully assembly , bearing ....

* Jig tools , jig holders

Oversea Market of us :

Asia , Europe , America , Africa

Countries :

India , Korea, USA, Italy , Germany , Hungary Netherlands Holland , Portugal, Spain, Australia , New Zealand, Iran, Turkey ,Thailand, Singapore, Phillippines, Malaysia , Indonesia ,Cananda, Brazil ,Chile,Mexico, Belgium, South africa, Israel, Peru....

Every year ,there are some customers come and visits ,and have a good friendship with us . Bussiness is better and betterboth us ! Hope more customers come to China and meet us to discuss bussiness detail , Tour trip also is welcome !
