| Categories | Peltier Plate Cooler |
|---|---|
| Brand Name: | Adcol |
| Model Number: | ATP080-24VDC |
| Certification: | ISO9001 , CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T , Paypal |
| Supply Ability: | 500pcs per month |
| Delivery Time: | 3 - 4 weeks |
| Packaging Details: | Solid carton packaging |
| Cooling Capacity: | 79W |
| Stable Current: | 4.3A |
| Voltage: | 24VDC |
| Weight: | 2.9kg |

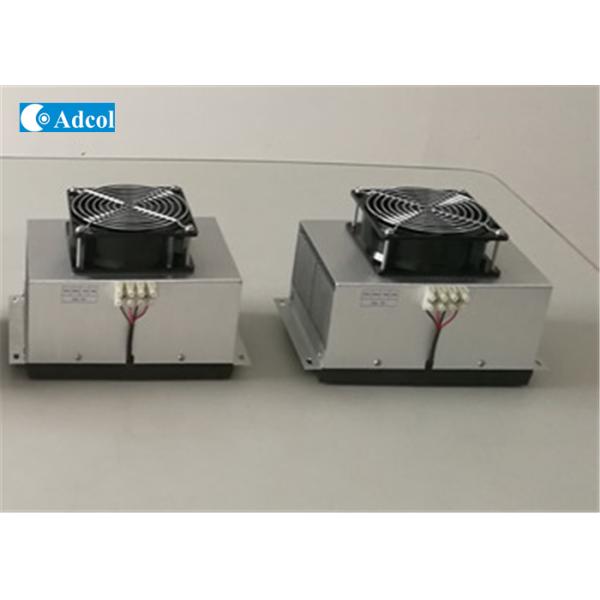

Thermoelectric Cold Plate / Peltier Air To Plate Thermoelectric
Assembly TEC Cooling Solution
Application:
1. Small laser diodes and laboratory instrument
2. Medical and laboratory instrument
3. Thermal stabilization of electronic components
4. Laboratory instrument, medical products and cooling corrosive
liquids with an optional stainless-steel liquid exchanger
| Air to Plate Item# | ATP080-24VDC | |
| Cooling Capacity(W) | 79 | |
| Current(A) | 4.3 | |
| Voltage(VDC) | 24 | |
| Weight(kg) | 2.9 | |
| Dimension (mm) (Cold side) | Length | 178 |
| Width | 105 | |
| Height | 33 | |
| Dimension (mm) (Hot side) | Length | 203 |
| Width | 155 | |
| Height | 119 | |

|
