800V SD100/200 Solar Battery Energy Storage System for Commercial Power Effectiveness

Categories	Energy Storage Cabinet
Model NO.:	SD100/200
Cooling Method:	Air Cooling
Noise:	<65 dB (at 1m From The System) Eth
Soc Estimation Accuracy:	<=5%
Self-Discharge Rate/Month:	<=3%
IP Protection Level:	IP54
Transport Package:	Wooden Box
Specification:	800V 280ah
Trademark:	wincle
Origin:	Hunan China
HS Code:	8507600090
Supply Ability:	5000pieces/Year
Container Size:	20
Weight:	2200 Kg
Nominal Voltage:	800V
Warranty:	10 Years
Nominal Capacity:	229kwh
Cycle Life:	12000 Times
Customization:	Available \| Customized Request

Contact Now

Add to Cart

Product Details
Company Profile

800V SD100/200 Solar Battery Energy Storage System for Commercial Power Effectiveness

229KWH 100KW Energy Storage System for Commercial and Industrial

Product Description

SD-100/200 is a energy storage device with integrated battery, inverter, EMS, fire protection, electric energy measurement ,cloud operation and maintenance platform specially developed for industrial and commercial fields, which can be plug-and-play, easy-installed.

1. Inrush Protection,Grid shock, lightning strike protection.

2. Electricity Meter distribution Power measurement unit, profit calculation.
3. AC protection AC circuit breaker protection, overload short circuit protection.

4. Power Distribution Unit High voltage DC protection.

5. Inverter :100K three-phase four-wire inverter output.

6. Cooling duct Using front-to-back heat dissipation design.

7. Battery pack 16 pcs 16S280Ah battery packs, total power 229.3kWh.

8. System Monitoring System operation data and status monitoring.

No.	Item	Parameters
AC parameters
Model		SD-100/200
1	Rated	229kWh
2	Rated power	100kW
3	AC Ethernet	Three phase four wire
4	Reactive Power	Power factor -0.95 ~ +0.95 adjustable
Grid-connected operation parameters
5	Rated grid voltage	380 V(AC315V/AC290V)
7	Available grid voltage	±15%
8	Rated grid frequency	50 Hz
9	Available grid frequency	47.5 Hz~51.5 Hz
10	Total current distortion	≤5%
11	Power factors	≥0.98(rated power)
12	Charge-discharge conversion time	≤100 ms
13	connected and off-grid switching time	≤50 ms
Off-grid operation parameters
14	Rated input voltage	AC380 V/(AC315V/AC290V)
15	Output voltage deviation	AC380 V(AC315V/AC290V)±5%
16	Output voltage unbalance	≤5 %
17	Output voltage distortion	≤3%( linear load)
18	Rated output frequency	49.5 Hz~51.5 Hz
System parameters
19	system efficiency	power efficiency ≥ 95%, energy efficiency≥ 85%
20	Noise	<65 dB( away from system 1M )
21	Protection Level	IP54

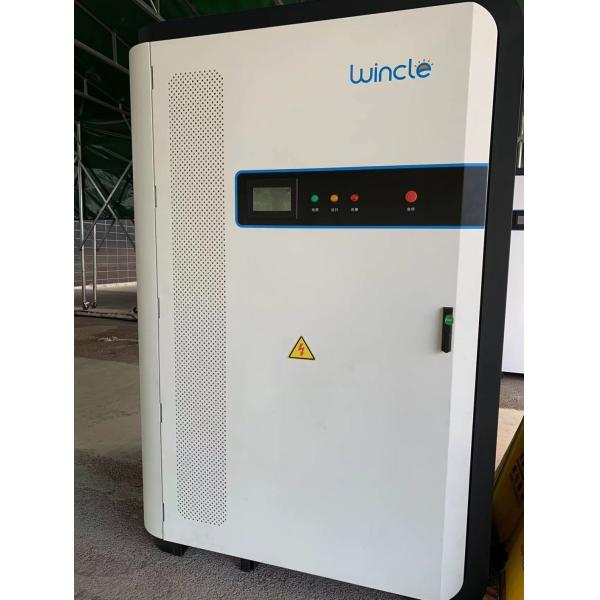

229wkh Commercial Power Supply System Solar Renewable Battery Energy Storage Ess

Conpany Brief Introduction

Soundon New Energy is an enterprise engage in technology innovation, product design and marketing for battery cathode material and high capacity lithium-ion battery.

Soundon New Energy has the ability of production 50,000 tons NCM&LiFePO4 battery Cathode material, 6 GWh high capacity li-ion battery every year.
Soundon New Energy industrial park now covers 2 million m² ,with the registered capital as USD

496.66 million and the total investment as USD 1.57 billion. Now We have 300 engineers covering the filed of cell designing, BMS, electrical engineering and structural designing.

Soundon has passed ISO9000-2015, ISO14001-2015 and IATF16949-2016.

Our Certificates
R&D sources

The technical laboratory testing is able to perform test independently, finish physical and chemical analysis, and another projects test and data analysis accurately, and issue supported technical report.

We have created a well-organized environment of research and development. With a total of 2000 m²of laboratory space, the factory is equipped with more than 200 high-tech machines, apparatuses and equipments. Through our years' efforts, we have gradually developed to become the leading manufacturer of lithium ion battery
229wkh Commercial Power Supply System Solar Renewable Battery Energy Storage Ess

Application

Island micro grid, Power stations with new or distributed energy access; Small fire peak and frequency modulation power station Outdoor temporary heavy duty center, Load fluctuations of the factory, enterprise, business center etc.

FAQ
1. The factory covers an area 20,000 m², have a series of automatic equipment& semi-automatic equipment, production capacity has reached 300,000pcs/day.
2. Professional R&D center: to cooperate with the specification, proofing process, and free samples, OEM and ODM are warmly welcomed.
3. Quality assurance: Using high-quality material and build a comprehensive quality control system from parts to finished products. Importantly 100% production inspection.
4. Most of our sales and technical team has rich lithium battery experiences of 10-15 years.
5. ISO9001 certified factory: passed ISO9001:2015 inspection, strictly control the working environment.
6. Low MOQ: Strength factory, strong production capacity, most of the battery models have stock, can be fast dispatched.
7. Lithium battery certification with CE/CB/IEC62133/KC/PSE/ROHS/ERRCS/UN38.3, etc.
8. Warranty 10-15 years.
