Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3

Categories Wilo Recirculating Pump
Brand Name: Wilo
Model Number: Wilo-Medana PE3
Place of Origin: Germany
MOQ: 1
Price: negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time: 5-8weeks
Packaging Details: Wooden case packing
Power connection: 1~230 V ± 10%,50 Hz
Ambient temperature: 5 °C _40 °C
Maximum working pressure: 1.8 bar
Class of protection: IPX4
  • Product Details
  • Company Profile

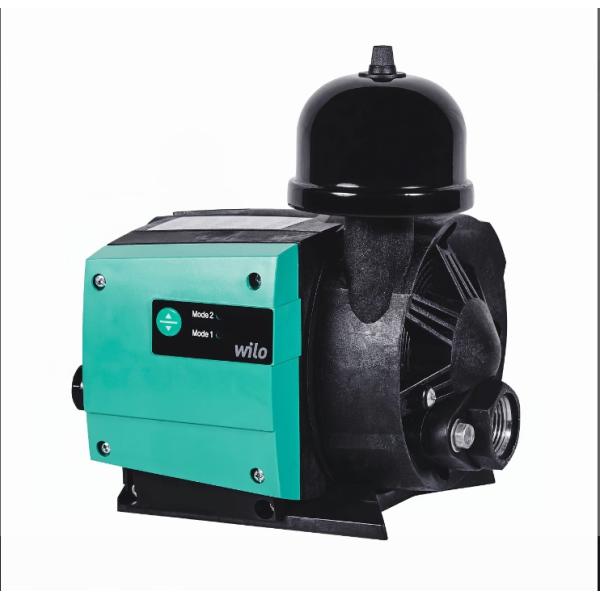

Residential Small Centrifugal Wilo Recirculating Pump Water Medana PE3

Wilo-Medana PE3 Non-self-priming multistage centrifugal pump

Safe and quiet pressure boosting in a residential environment.

The Wilo-Medana PE3 is a ready-to-plug, pressure boosting centrifugal pump, which is also suitable for use in residential environments thanks to its compact design and quiet operation. The pump is equipped with numerous protective functions and is easy to adjust via an operating button. LED control lights indicate the set operating mode at all times.

Design

Non-self-priming multistage centrifugal pump

Application

  • Automatic low-noise water supply/pressure boosting for residential properties

Equipment/function

  • Low-noise operation due to fluid-cooled motor
  • Drinking water approval for all parts that come into contact with the fluid
  • Electrical connection cable incl. mains plug
  • Two constant speeds (Mode 1, Mode 2) in automatic or manual operation
  • Control lamps (LED) for the operating status
  • Pressure compensation vessel for constant operating pressure
  • Thermal motor protection
  • Integrated pressure sensor for:
    • automatic operation,
    • dry-running protection(low water protection) and overpressure protection
  • Integrated temperature sensor for:
    • motor blocking protection,
    • excess temperature protection and anti-freezing protection
    • Typekey

      NO VALUE

      Technical data

      • Mains connection 1~230 V ± 10 %, 50 Hz
      • Connection (pressure side and suction side): Rp1
      • Fluid temperature:
        • Drinking water: +5 °C to +23 °C
        • Not used for drinking water: to +35 °C
      • Ambient temperature: 5 °C to 40 °C
      • Max. operating pressure: 1.8 bar
      • Protection class: IPX4

      Materials

      • Pump housing: Plastic
      • Impeller: Plastic
      • Shaft: Stainless steel
      • Mechanical seal: Carbon/ceramic

      Scope of delivery

      • Pump
      • Installation and operating instructions
