Categories | Outdoor Fixed LED Display |
---|---|
Place of Origin: | Guangdong, China |
Model Number: | Gsurface |
Brand Name: | GCL |
Price: | Price to be discussed |
MOQ: | Min. order: 20 |
Certification: | EMC/CE/ROHS/CCC/FCC/BIS |
Application: | Outdoor |
Type: | LED |
Color: | Full Color |
Panel Size: | 960x960mm, 960x960mm |
Supplier Type: | Original manufacturer, ODM, OEM |
Media Available: | Photo |
use: | advertising publish, retail store, shopping mall, welcome display, self-service business, exhibition hall, airport, subway, elevator, Restaurant & Hotel Supplies, education |
Function: | SDK |
Pixel Pitch: | 10mm, 10mm |
Specification: | Digital Poster, Video Wall |
Touch Screen Type: | Capacitive |
Brightness: | 6000-10000nits, 6000-10000nits, 6000 |
Contrast Ratio: | 2000:1, 2000:1 |
Lifespan (hours): | 100000H, 100000H |
IP Rating: | IP65, IP65 |
HS Code: | 8528591090 |
Resolution: | 96x96mm |
View Angle(H/V): | 140/140, 140/140 |
Density: | 10000 |
LED type: | SMD3535 (3in1) |
Scan Method: | 1/3 |

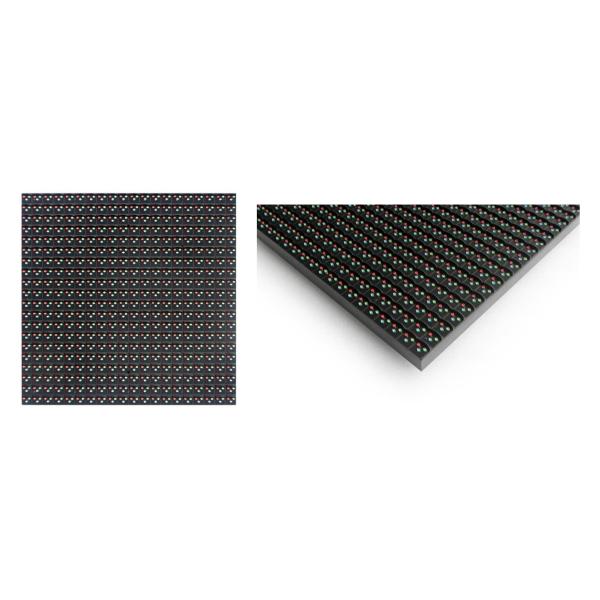

Module size: | 320*320mm |
Cabinet material: | Steel (Aluminum Optional) |
Cabinet weight: | 40KG/sqm |
Protection Level: | IP65 |
Cabinet Maintenance: | Front Service |
Refresh rate: | 1920-3840hz |
Model | Gsurface10 | Gsurface8 | Gsurface5.95 |
Pixel Pitch (mm) | 10 | 8 | 5.95 |
Pixel Density (dot/m2) | 10000 | 15625 | 28476 |
LED Type | SMD3535 | SMD3535 | SMD2727 |
Scanning | 3S | 5S | 9S |
Module Size (mm) | 320*320 | 320*320 | 320*320 |
Cabinet Size (mm) | Customized | ||
Cabinet Weight (±0.25Kg) | 40kg/㎡ | ||
Cabinet Resolution (PX* PX) | Customized | ||
Cabinet Material | Steel (or Aluminum) | ||
Brightness (CD/m2) | 6500 | ||
Maximum Power Consumption (w/sqm) | 720 | ||
Average Power Consumption (w/sqm) | 240 | ||
Horizontal Viewing Angle (Deg) | 140° | ||
Vertical Viewing Angle (Deg) | 140° | ||
Grey Scale(bit) | 16 | ||
Refresh Rate (Hz) | 1920-3840Hz | ||
Input Voltage (V) | 110-240V | ||
Input Frequency (Hz) | 60 | ||
Storage Temperature (℃) | ﹣40℃-﹢80℃ | ||
Working Temperature(℃) | ﹣20℃-﹢65℃ | ||
Working Humidity (RH) | 95% | ||
Cabinet Curve | Outward&Inward | ||
Waterproof Level | IP65 | ||
Working Environment | Outdoor | ||
Installation Type | Fixed installation |
![]() |
