Name: UT2000 Car Acid Lithium Battery Separate Equipment for Solar Panel Batteries Recycling
Brand: PAIBO
Price: 1 USD

Home > Energy & Mineral Equipment >

UT-2000 Car Acid Lithium Battery Separate Equipment for Solar Panel Batteries Recycling

Categories	Lithium Ion Battery Recycling Machine
Place of Origin:	China
Brand Name:	PAIBO
Condition:	New
Video outgoing-inspection:	Provided
Machinery Test Report:	Provided
Marketing Type:	New Product 2023
Warranty of core components:	1.5 Year
Core Components:	PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Gear, Pump
Warranty:	1 Year
Power (kW):	130
Weight (KG):	8000
Key Selling Points:	Energy saving
Applicable Industries:	Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works , Energy & Mining
Showroom Location:	United Kingdom, United States, Mexico, South Africa
UT-500:	500KG/H
UT-1000:	1000KG/H
UT-2000:	2000KG/H
Usage:	Scrap Copper Recycling

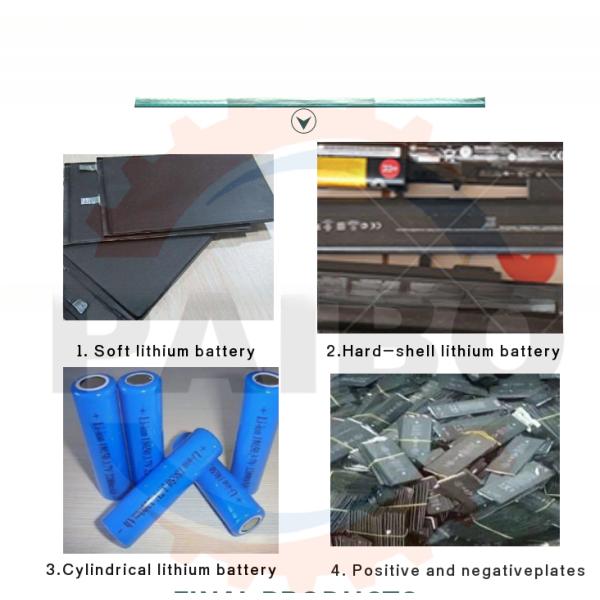

Raw material:	Lithium Battery Scrap
Keyword:	Aluminum Composite Panel Recycling Machine
Product Keywords:	Scrap Lithium Battery Recycling Plant
Advantage:	High Separator Rate 96-99.99%
Used for recycling:	Wasted Electric Ev Battery
Product Name:	Lithium Battery Recycling Machine with shredder
Packaging Details:	Film package
Port:	qingdao, shanghai, gangzhou
Supply Ability:	20 Set/Sets per Month
Price:	negotiable
MOQ:	1
Delivery Time:	35
mob:	0086-17398977463
contact:	sale@paibomac.com
tel.:	0086-17398977463

Contact Now

Add to Cart

Product Details
Company Profile

UT-2000 Car Acid Lithium Battery Separate Equipment for Solar Panel Batteries Recycling

2023 Hot Sale Ev Battery Recycling Machine Lithium Ion Battery Recycling Plant Waste Battery Recycling Machine

Product Description

At present, the research on the recycling of waste lithium batteries is mainly focused on the recovery of high-value anode precious metals cobalt and lithium. Copper in the negative electrode of waste lithium battery (content up to 35%) is an important production raw material widely used. Based on the structural characteristics of lithium batteries, our company adopts an environmentally-friendly physical separation process to realize efficient separation and recovery of waste lithium batteries.

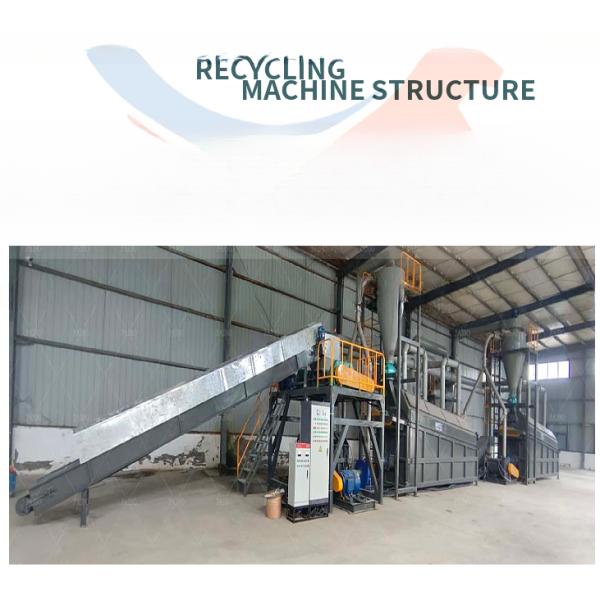

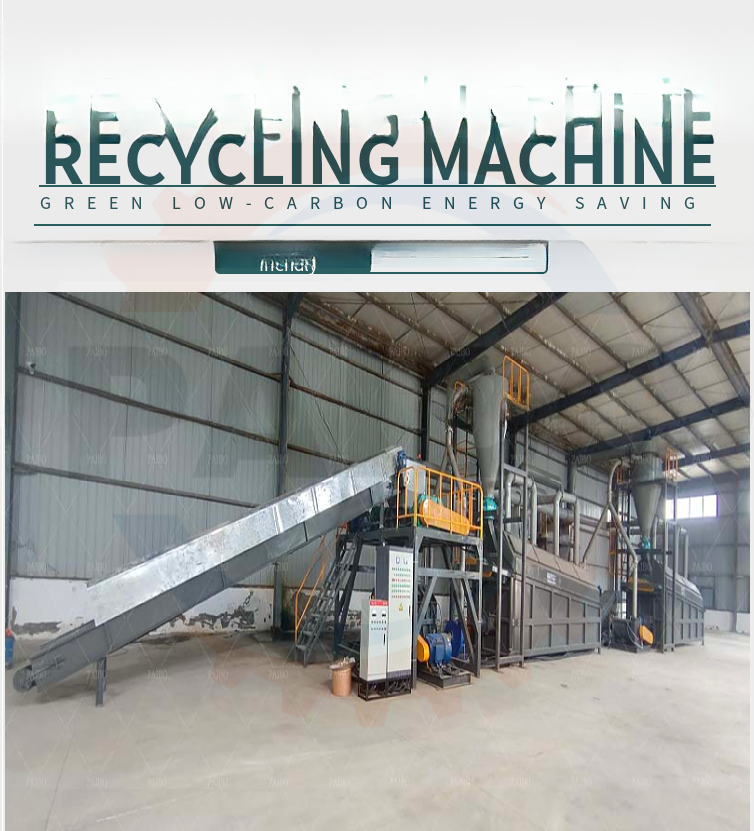

Lithium battery recycling separation process:

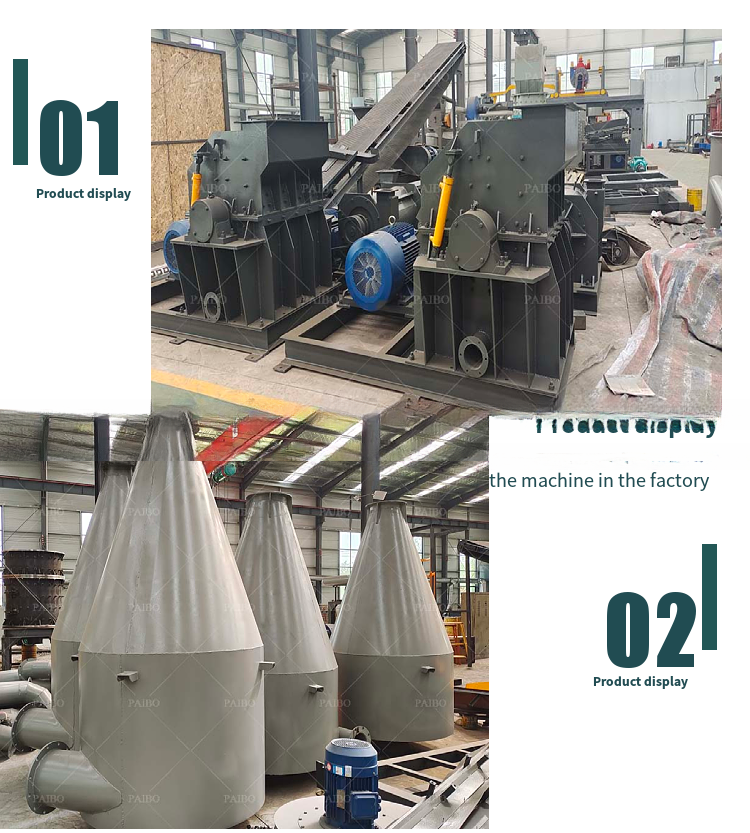

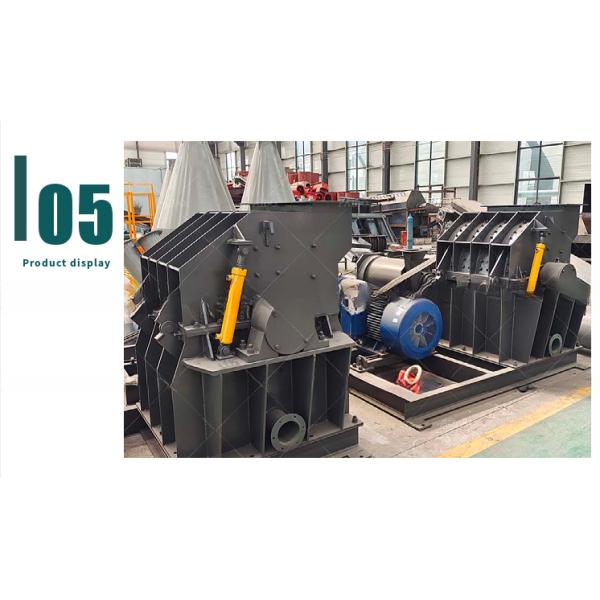

(1)The raw material shall be crushed by the first crushing machine. (30~100mm)

(2) Be delivered to the second crushing machine by the sealed conveyor. (2~5mm)

(3) The crushed material will be delivered into the air separator by high pressure air conveyor, it will be separated into rough powder and small powder and septum. The small powder enters the cyclone discharging device, the rough powder enters the vibrating screen.(air speed and air pressure precisely controlled by the transducer )

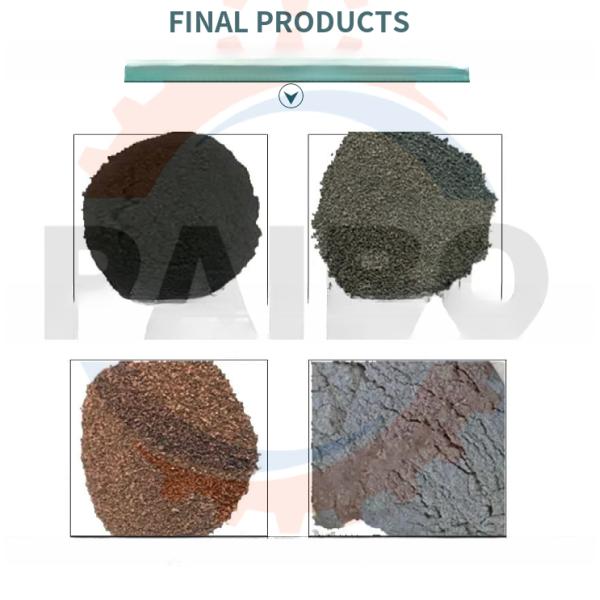

(4) The material which enters the cyclone discharging system will be delivered to the vibrating screen by the air conveyor, copper granule, aluminum granule, and lithium cobalt mixture powder will be separated from it, and as well as the septum powder.

(5) The rough powder contains more metal, it will be delivered to the vibrating screen via the high pressure air conveying system, the lithium cobalt mixture powder and copper/aluminum powder will be separated out.

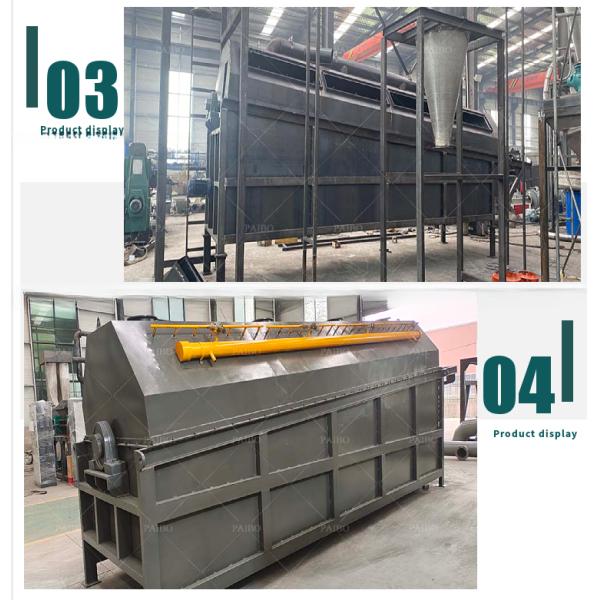

(6) The final separating system is our air gravity separator, it can separate the lithium cobalt and copper and aluminum totally.

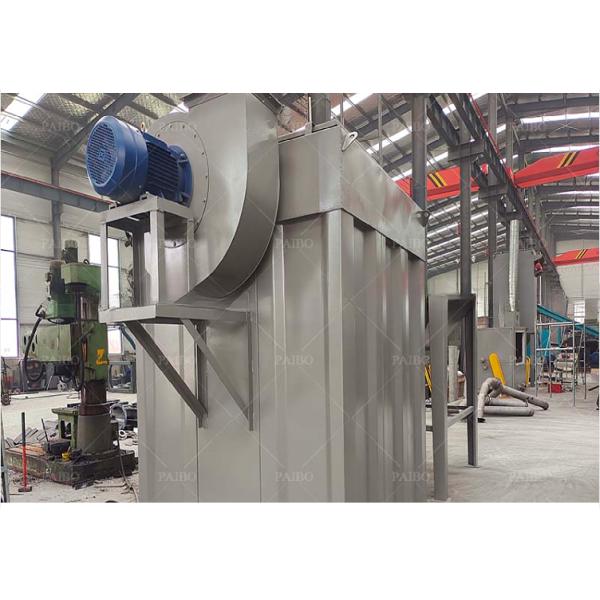

(7) The whole plant is running under the vacuum condition to avoid the dust pollution and leakage of the lithium cobalt.

Our Services

How to packing of our machine:

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.

Package

About Packing, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.

We can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
