Categories | Disc Blades |
---|---|
Brand Name: | Xinyi |
Model Number: | 65Mn |
Certification: | CE |
Place of Origin: | China |
MOQ: | 100 pieces |
Price: | US $ 22.48-25.26 / piece |
Payment Terms: | L/C,T/T,Western Union |
Supply Ability: | 5000pieces/per Month |
Delivery Time: | 8-15 work days |
Packaging Details: | Iron Frame |
Material: | 65mn/40mnb |
Power Source: | Diesel |
Weight: | 1.1-27kgs |
After-sales Service: | Provide |
Warranty: | 1year |
Color: | Red/Black/Blue/Yellow |
Width: | 12inch-44inch |
Thickness: | 3mm-12mm |
Hardness: | 38-46HRC |
Edge of Disc Blade: | Round or Notched |
Shape: | Flat,Concave or Wavy |
Surface Treatment: | Painting |
Transport Package: | Pallet |
Specification: | Customizable |
HS Code: | 8413290000 |

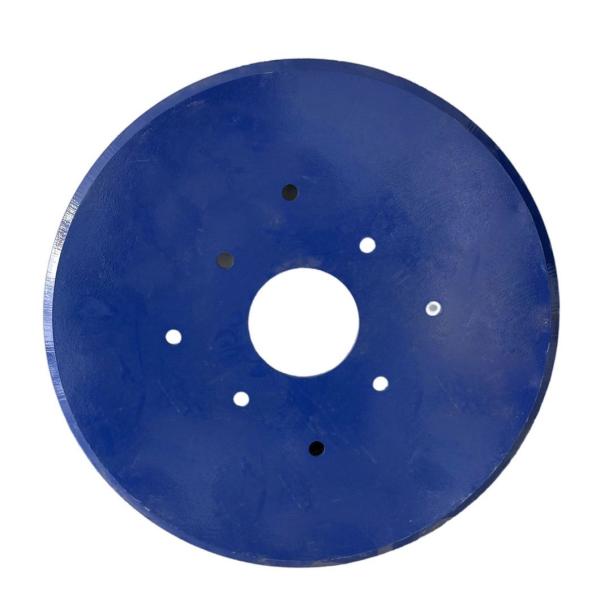

Durable Harrow Blades Rust-Proof For Precision Farming And Soil Preparation
Yucheng Xinyi Machinery Manufacturing Co., Ltd.
Material: | 65Mn,Boron steel |
Hardness: | HRC38-45, HRC43-48 |
Thickness: | 3.0-12.5mm |
Size/dimension: | 12"-44"(300mm-1120mm) |
Edge of Disc Blade: | Round or Notched. |
Shape: | Flat,Concave or Wavy |
MOQ: | 100 pcs |
Production Capacity: | 7 Million pcs annually |
Surface treatment: | Painting |
Colors: | Blue or black ( matt or bright), Made to your order |
Hole Type: | Square, Round, Hexagon, Clover Leaf, Optional |
Hole Size: | 27x27mm, 42x42mm, optional |
Working Depth: | 200mm, 300mm |
Working Width: | 3.4M ~ 6.2M |
Packing: | Non-fumigation wooden case, metal case according policy of different regions |
Feature /Characteristic: | Highest wear life due to special edge making process |
Common Specifications of Disc | |||
Dia. | Concavity | Thickness | |
mm | inch | mm | mm |
255 | 10 | 12 | 3 |
305 | 12 | 19 | 3 |
330 | 13 | 25 | 3 |
355 | 14 | 38 | 3 |
410 | 15 | 38~50 | 3 |
430 | 17 | 57 | 3,4 |
460 | 18 | 38~60 | 3,4 |
480 | 19 | 57 | 3,4 |
510 | 20 | 44~63 | 3,4,5 |
535 | 21 | 63 | 3,4,5 |
560 | 22 | 60~85 | 4,5,6 |
585 | 23 | 75~90 | 4,5.6 |
610 | 24 | 75~95 | 4,5,6 |
660 | 26 | 86~115 | 5,6,7,8 |
710 | 28 | 100~130 | 5,6,7,8 |
760 | 30 | 120~135 | 6,7,8,10,12 |
810 | 32 | 120~140 | 8,10,12 |
910 | 36 | 120-200 | 8,10,12 |
960 | 38 | 120-200 | 8,10,12 |
Normal packing or According to your requirement.
Safe, complete and fast delivery of goods to customers.1,All products enjoy 12 months warranty period. The warranty period
is calcualted from the date of bill of lading .
2,We provide our clients with genuine spare parts with the highest
quality,exact fitness .If needs,please submit your spare parts
request to us,and list products name ,description of required
parts.we guarantee that your request will be handled quickly and
appropriately.
3,We can also provide training services to different users.
If you are interested in our products, feel free to contart me.
![]() |
