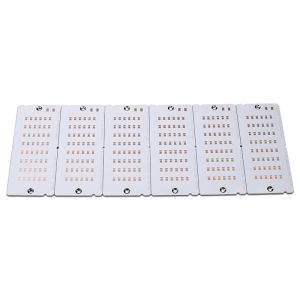

OEM PCB LED Aluminum circuit boards Prototype LED PCB lighting
MCPCBs use a metal as the base, as metals are good conductors of heat. For this, manufacturers mostly use a base made of Copper, Aluminum, or Stainless-Steel. According to their physical properties, Copper has the best thermal conductivity of the three, but is also the most expensive. Aluminum also has a good thermal conductivity, but lower than that of Copper. Aluminum is also less expensive than Copper is. Although Stainless-Steel has the lowest thermal conductivity of the three, and is also the least expensive, Stainless-Steel is the most stable and rigid of the three metals.
MCPCBs are also known as Metal Core Boards, Metal Clad PCBs, Metal Backed PCBs, and Metal Base PCBs. The most popular MCPCB is the Aluminum Core PCB, also known as Aluminum PCB, and its popularity is mainly because of the most economic option Aluminum offers considering its thermal conductivity, rigidness, and cost.
| Item | Capability | |
| 1. Base Material | FR-4 /ALUMINUM | |
| 2. Layers | 1-2 | |
| 3. Finised inner/outer copper thickness | 1-10OZ | |
| 4. Finished board thickness | 0.2-7.0mm | |
| Tolerance | Board thickness≤1.0mm: +/-0.1mm 1<Board thickness≤2.0mm: +/-10% Board thickness>2.0mm: +/-8% | |
| 5. Max panel size | ≤2sidesPCB: 600*1500mm Multilayer PCB: 500*1200mm | |
| 6. Min conductor line width/spacing | Inner layers: ≥3/3mil Outer layers: ≥3.5/3.5mil | |
| 7. Min hole size | Mechanical hole: 0.15mm Laser hole: 0.1mm | |
| Drilling precision: first drilling | First drilling: 1mil Second drilling: 4mil | |
| 8. Min welding ring | 4mil | |
| 9. Min solder mask bridge | ≥0.08mm | |
The Aluminum PCB Manufacturing process:
1. Cutting lamilate
2. Drilling
3. Dry/wet film Developing
4. Acid/alkaline etching
5. Silk screen solder mask
6. V-CUT
7. Test, organic solderability preservative (OSP)
8. Final quality control (FQC), final quality assurance (FQA), packaging, shipping
