Machine automatically cuts head band and delivers down the head
band.
| Categories | Notebook Binding Machine |
|---|---|
| Brand Name: | MAUFUNG |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 |
| Price: | $11,500-12,000 |
| Automatic grade: | Semi-Automatic |
| Power: | 1.5KW |
| Voltage: | 220V |
| Weight: | 270KG |
| Speed: | 11pcs/minute |
| Paper thickness: | 10-80mm |
| Machine dimension: | L700W850H1550mm |
| Max block size: | 350 x 420mm |
| Min block size: | 100 x 100mm |
| Power supply: | 220V/1PH/50HZ |
| Packing size: | L1000*W820*H1740MM |
| Net weight: | 2700KG |
| Gross weight: | 350KG |
| Model No: | MF-HBM420 |
| Mainframe power: | 1.5kw |
Model No | MF-HBM420 |
Power Supply | 220V, 1Phase,50HZ |
Mainframe power | 1.5kw |
Work Speed | 11PCS/minute |
Book Block Thickness | 10-80mm |
Book Block Size(Max) | 350x420mm |
Book Block Size (Min) | 100x100mm |
Packing size (L×W×H) | L1000*W820*H1740MM |
Machine Weight | 2700KG(Net);350KG(Gross) |
Book Block Head Band Machine is a flexible and compact machine for
the application of head and tail band on round and square book
blocks. It is the perfect solution for medium and small book
binding companies.The head band is joined to the glue strip before
being applied to the book spine. The machine does not require
cleaning at the end of the production.

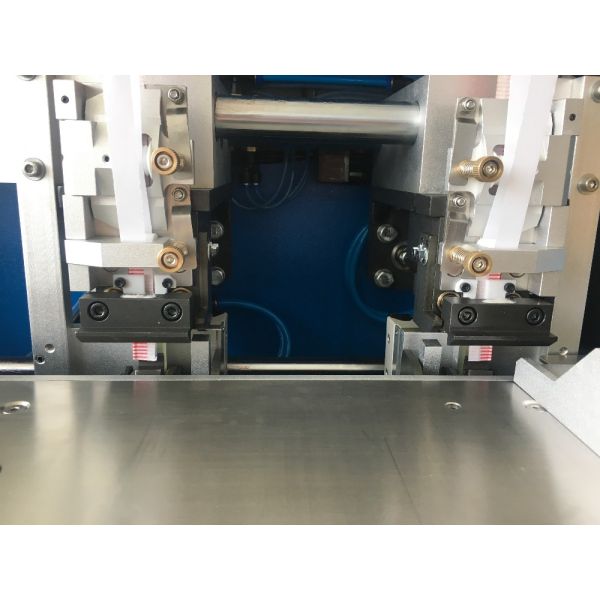

Machine automatically cuts head band and delivers down the head
band.

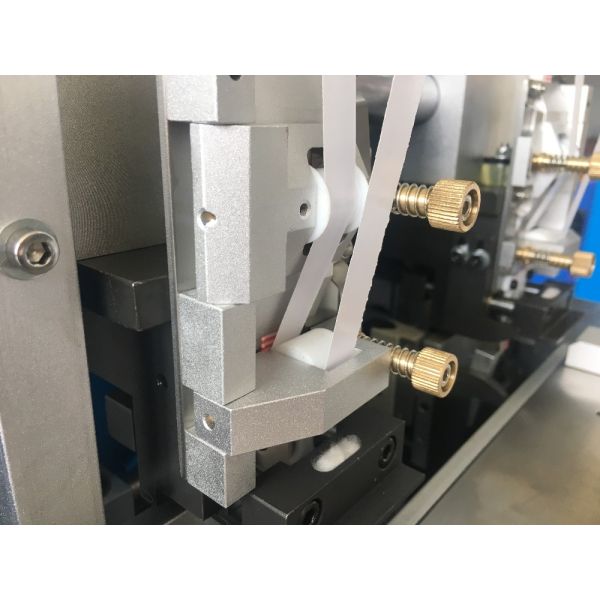

Machine employ double adhesive tape, automatically collect the waste of tape.


Safety induction system:
machine stop if users put hands over them.

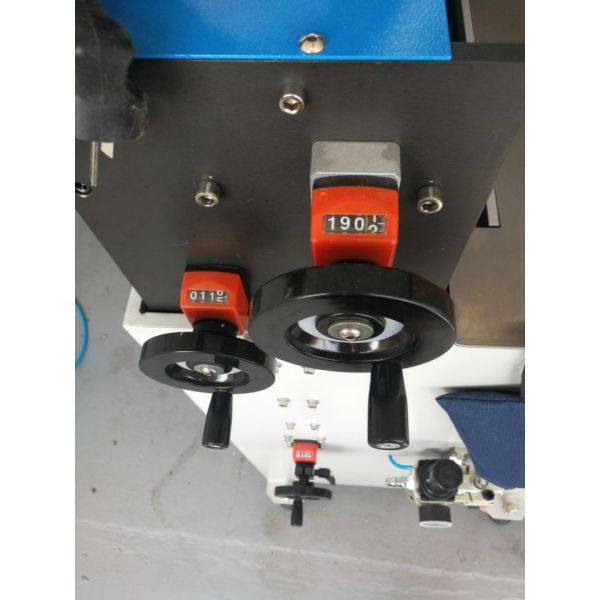

Convenient Adjusting:
Employ hand wheel adjusting for book thickness, width, and head
band height.






|
