| Categories | Flap Barrier Gate |
|---|---|
| Place of Origin: | Guangdong, China |
| Brand Name: | Goldantell/OEM |
| Model Number: | GAT-201 |
| MOQ: | 2 |
| Price: | US$420-950 |
| Turnstile size: | 1200mm (L) * 280mm (W) * 1000mm (H) |
| ESD pedal size: | 400mm (W) x 420mm (L) x 20mm (H) |
| Recording capacity: | 100,000 or more |
| Accuracy: | ±5% |
| Material: | 304 stainless steel |
| Direction: | single or bi-directional |
| Communication interface: | RS485 |
| LCD monitor size: | 8 inch |
| Operating voltage: | input AC220V output DC12V |
| Working temperature: | 5°C to 40°C |
| Test range: | 0.01-1000MΩ (shoes), 0.1-35MΩ (wrist-strap) |
| Power consumption: | AC220V, 50Hz/AC110V, 60Hz |
| Net weight: | 150KG |
| Pass speed: | 30-40 persons/min |
| IP protection: | IP54 |
8inch LCD monitor Customized design ESD Tester Turnstile Gate
GAT-ESD305 ESD Tester System Specification
1 | Instrument Dimensions | 8 inch LCD monitor |
2 | pedal size | (W) 400mmx (L) 420mmx (H) 20mm |
3 | Operating voltage | input AC220V output DC12V |
4 | Working hours | unlimited |
5 | Environmental conditions | Humidity: 0%~90%, Temperature: 5C°~ 40°C |
6 | Automatically store records and ESD test data (except client mode), recording information up to 100,000 or more. | |
7 | Test Range and Accuracy (Note: The ESD checker meets the standards of other countries. The upper and lower limit values of the test range can be adjusted according to customer requirements.) | |
Left shoe setting 0.01-1000MΩ,Accuracy ±5% Right shoe setting 0.01-1000MΩ,Accuracy ±5% Wrist-strap setting 0.1-35MΩ,Accuracy ±5% | ||
GAT-ESD305 Tester System Advantages
1. The esd test range of this item is completely higher than regular items, in addition, the ESD monitor screen is much more bigger than common ones in 4 inches.
2. support IC or ID card access control in turnstile system.
Specification For Turnstile Flap Gate:
Power consumption | AC220V, 50Hz/AC110V, 60Hz (optional) |
Housing Size | 1200*300*1000mm |
Housing material | 1.5-2mm, 304# stainless steel, corrosion resistant |
N.W. | 150KG |
Drive motor | DC brushless motor |
Channel width | 500--600mm |
Pass speed | 30-40 persons/min. |
IP protection | IP54 |
Input signal optional | DC12V/dry/contact/RS485/RS232/Remote |
railing-off against power off | Yes |
Working environment temperature | minors -15°C to 75 °C |
Working environments | indoor, outdoor |
Relative humidity | ≤95% coagulation free |
MCBF | 2,500,000 cycle |

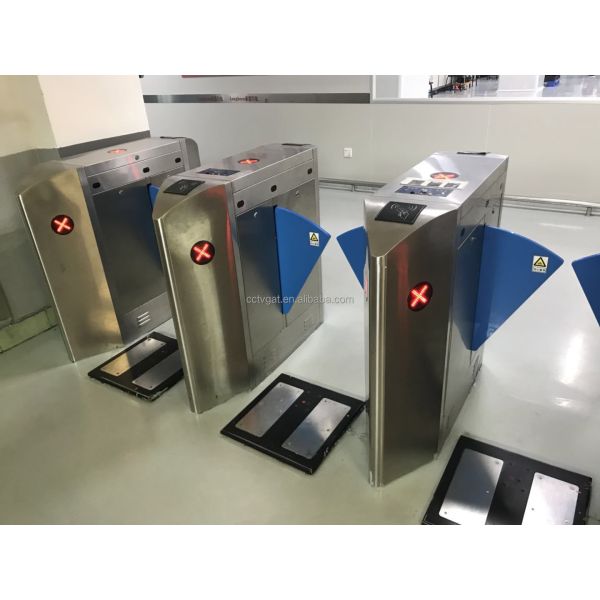

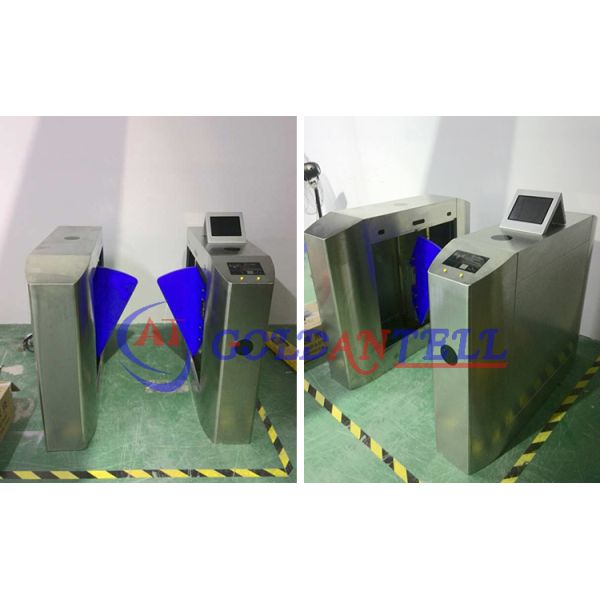

Real Photo in factory

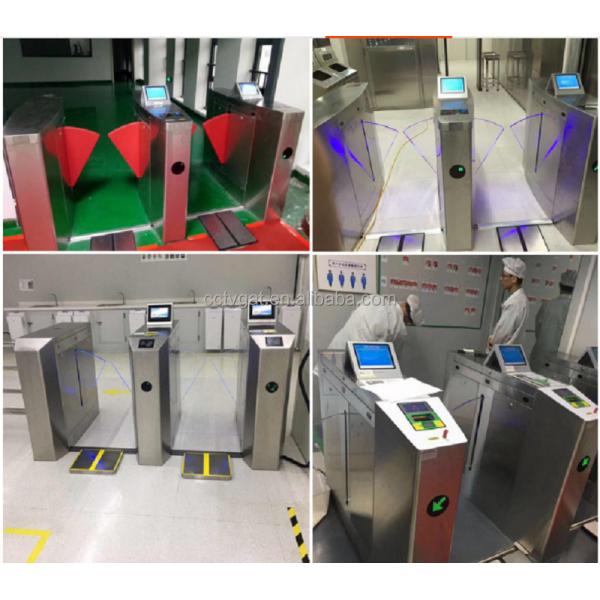

ESD Tester with pillar housing Photo
ESD Tester Mounted on Wall
Our Shenzhen Goldantell Technologies Co., Ltd is a leading exporter and supply chain service provider of intelligent turnstile and parking management products with more than 8 years’ experience.
Our main products include intelligent turnstiles, parking barrier, RFID card, sentry box, wheel clamp and other related security access control system and parking system. We have exported to more than 50 countries and built long term partnerships with clients.
Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
We have sold turnstiles to more than 50 countries ,like Brazil, Chile, Pure, Colombia, United States, Australia, Canada, New Zealand, the Netherlands, Switzerland, Sweden, German, Portugal, Philippines, Vietnam, Singapore, Malaysia, Saudi Arabia, Kenya, Nigeria, Zambia, Angola, Egypt, Ghana, Paraguay, Nepal and Myanmar and so on. We like to show some of our Customers as below:
1. When ship by sea, it normally takes 15-60 days depend on different countries;
2. We ship goods by UPS/DHL/FEDEX/TNT express which is door to door, it normally takes 3~ 5 days to arrive;
3. We can also help you ship by air cargo, it takes about 2-7 days to arrive;
No matter what delivery way, depending on your actual requirements.
1. For all your inquires about us or our turnstiles, we will reply you in detail within 24 hours.
2. We own well-trained and passional sales & after- sale services who can speak fluent English language.
3. We offer OEM services. Can print your own logo on turnstile, can customize the retail box packing and other things.
4. We have very experienced engineers, can help you better use turnstiles.
|
